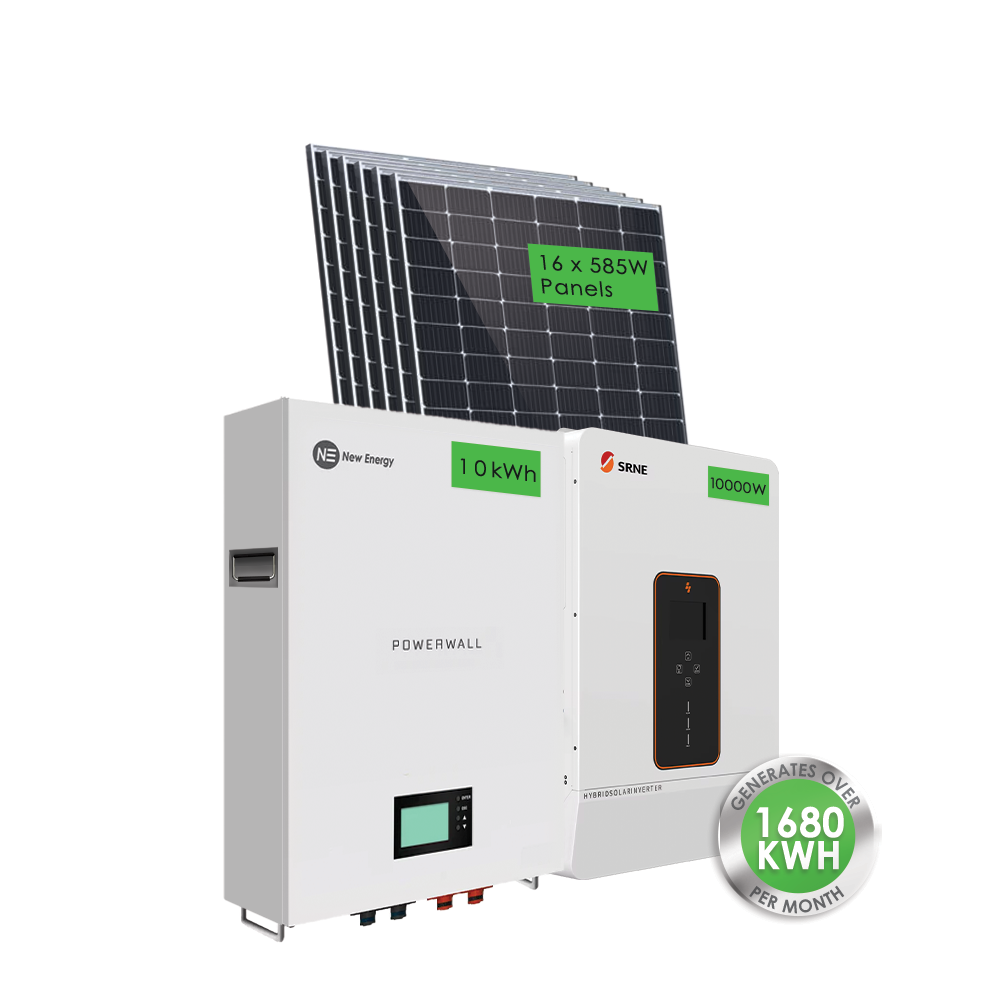

Components

- 1 x SRNE ASP 10000W Hybrid Inverter
- 16 x 585W Mono Grade A Solar Panels
- 1 x Lithium-Ion PowerWall – 10kWh (48V/200Ah)

Inverter Features

• 120/240V 50/60Hz Split Phase
• 125 - 425V - MPPT Voltage Range
• 11000W Max PV Input Power
• 10000W AC Output Rated Power
• Two (2) Mppt Input
• Up To 200A Charge / Discharge Current
• Works With & Without Batteries
• Connect Up To 6 Units In Parallel (Support Three-Phase Output)
• Intelligent Energy Management
• Flexibly Schedule Charging & Discharging Time



COMPONENT DATA SHEETS

• Inverter –SRNE ASP 10000W Hybrid Solar Storage Inverter
• Panels –DAH 585W Full Screen
• Battery – NEW ENERGY LITHIUM ION 10KWH POWERWALL


Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
