ACCESSORIES

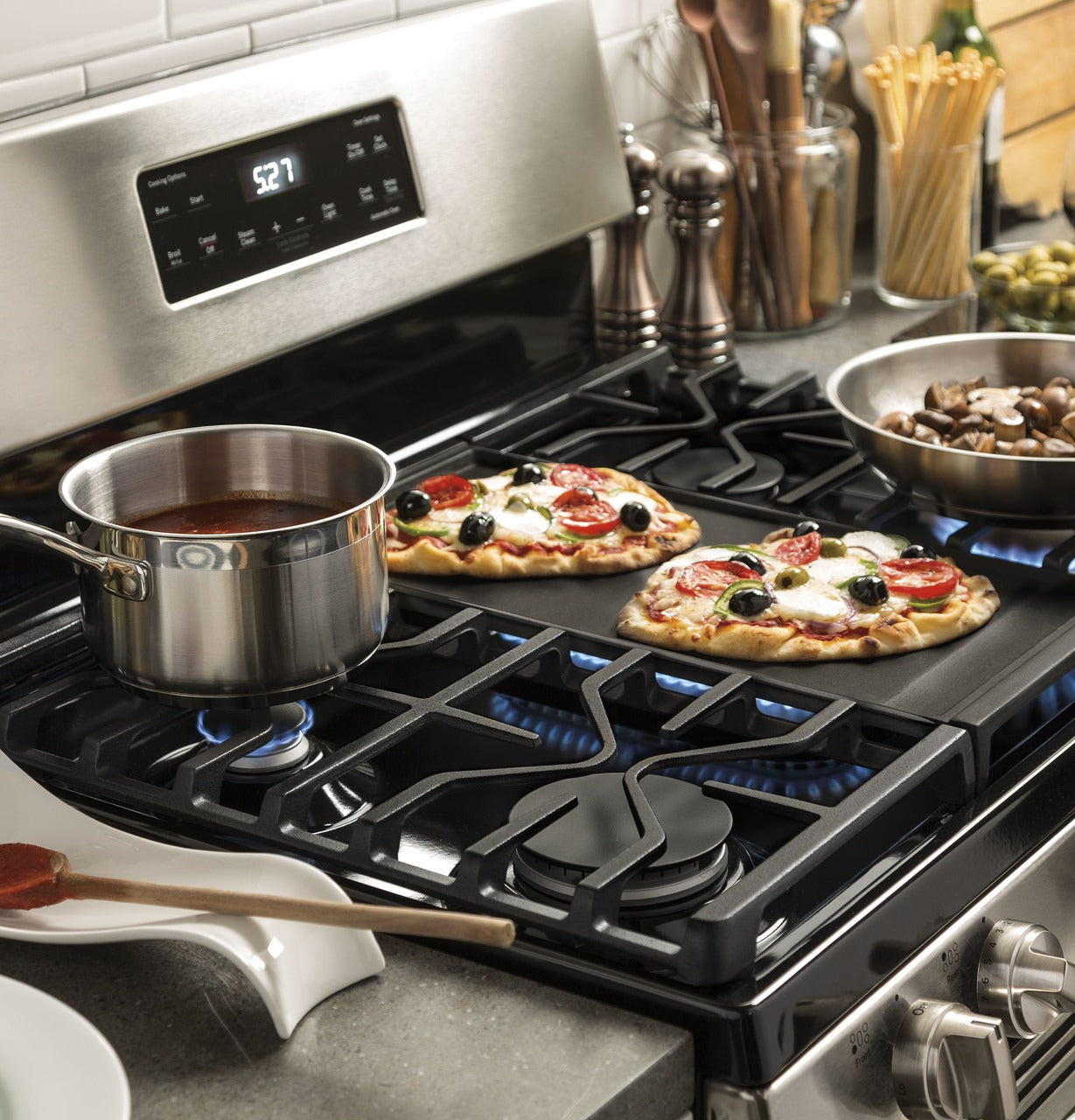

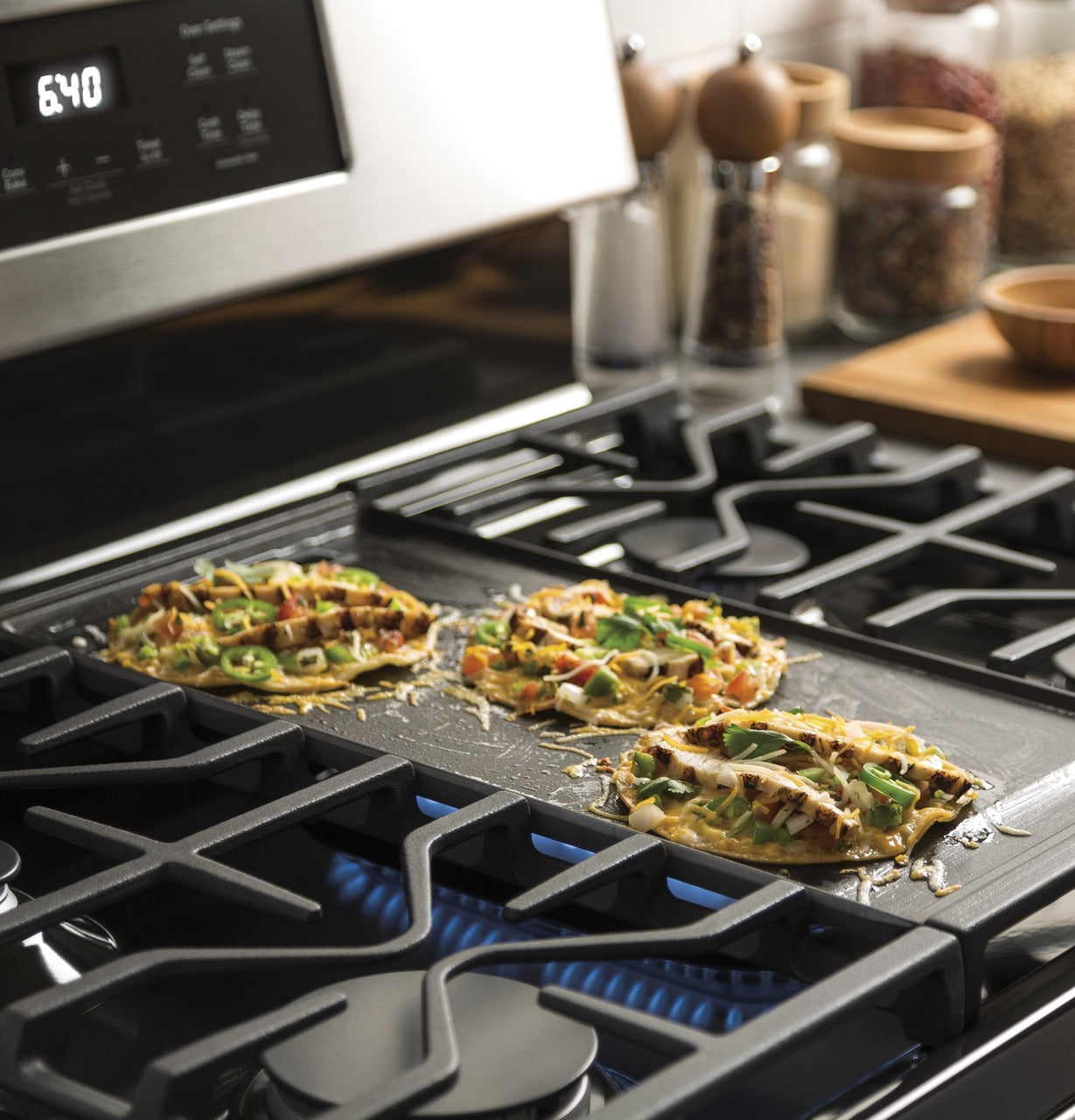

| Griddle | Integrated Non-Stick |
| Center Grate | Optional - JXGRATE1 |
| LP Conversion Kit | Included |
APPEARANCE
| Color Appearance | Stainless Steel/Black |
| Control Knobs | Stainless Steel Appearance |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
CAPACITY
| Total Capacity (cubic feet) | 5.0 cu ft |
FEATURES
| Configuration | Range with Broiler Drawer |
| Ignition System | Electronic |

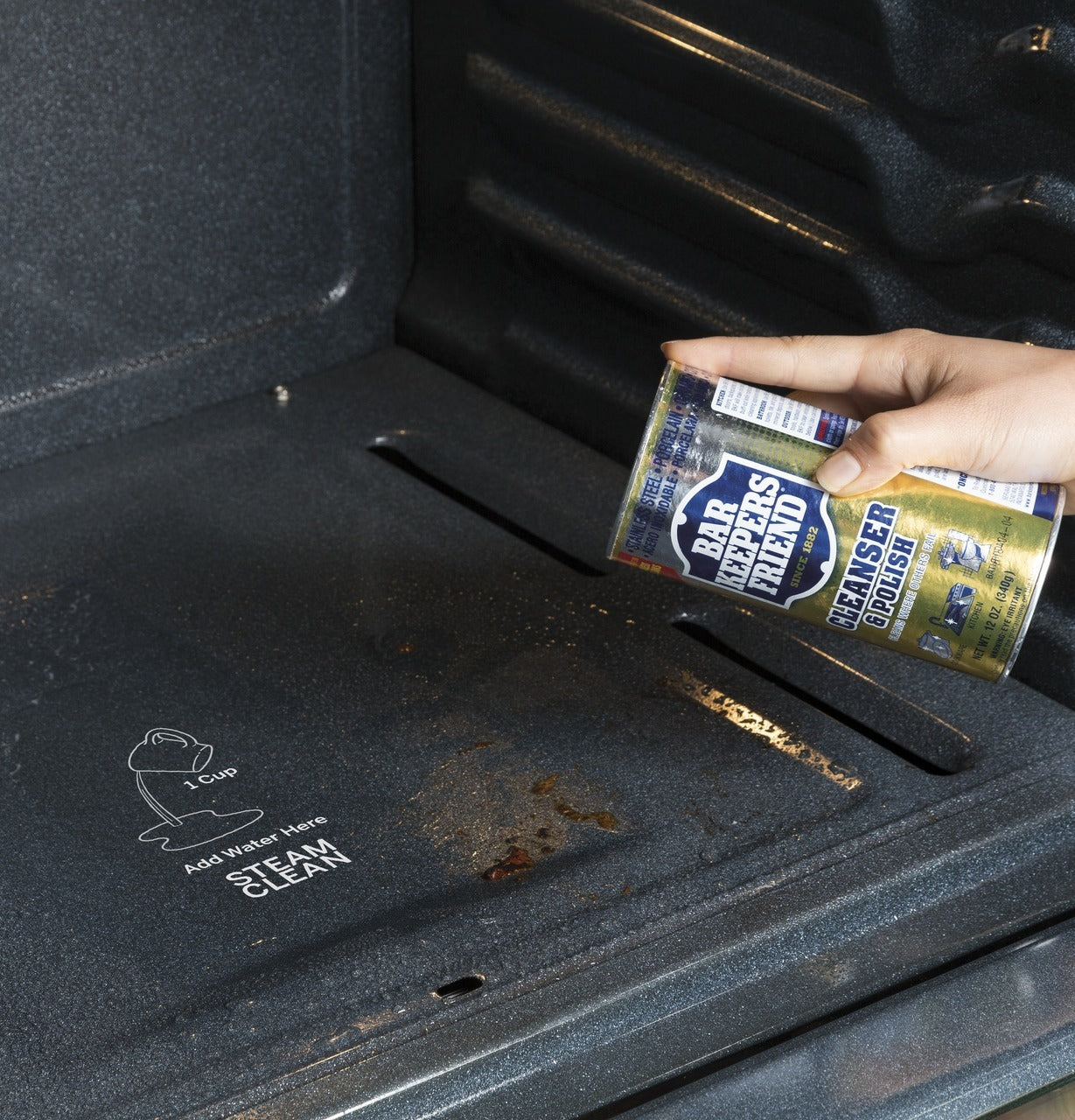

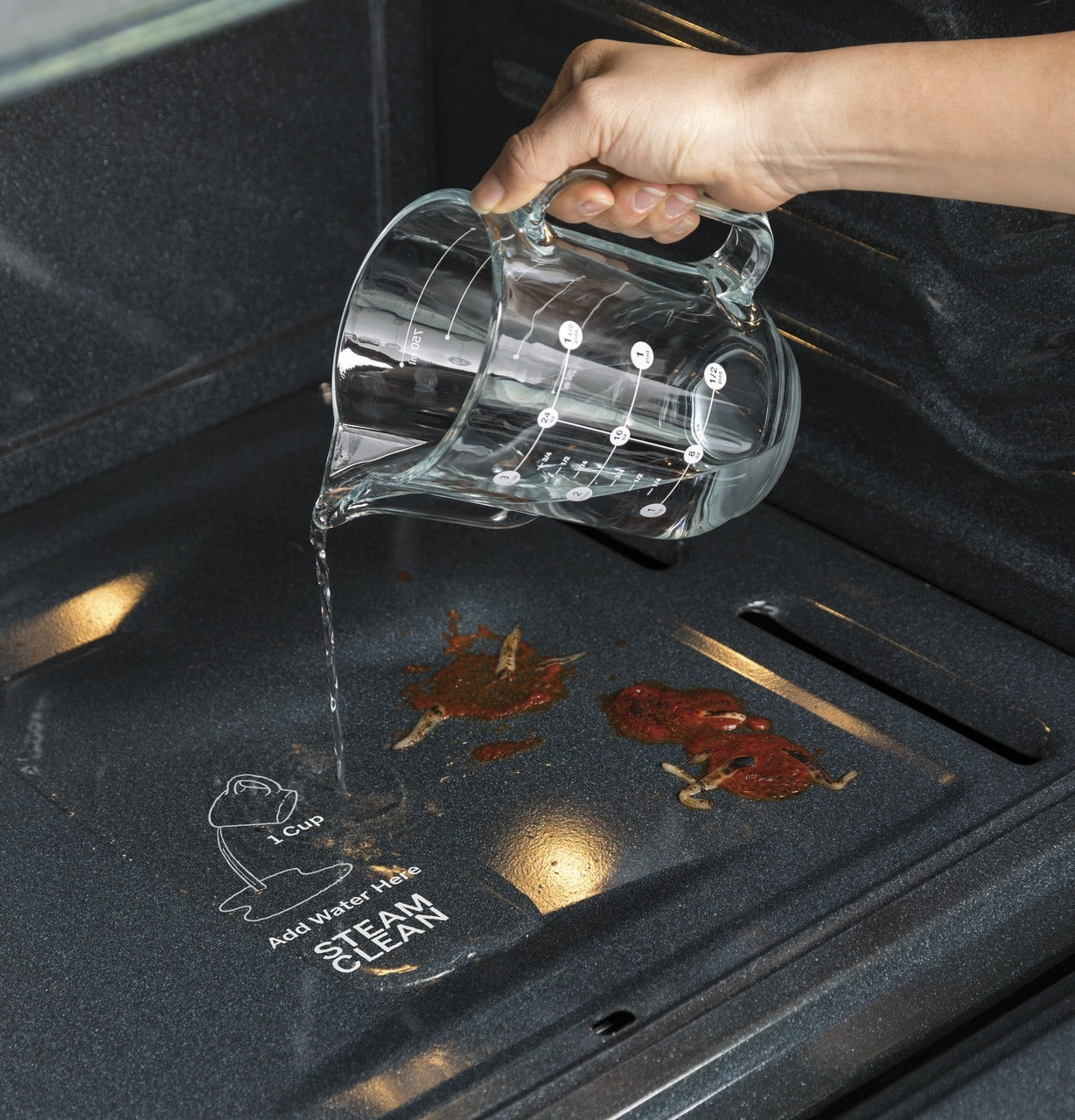

| Oven Cleaning Type | Steam Clean |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Black Edge-to-Edge One-Piece Upswept Porcelain-Enamel |
| Burner - Left Front | 15,000 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 9,500 BTU |
| Burner - Right Rear | 12,000 BTU |

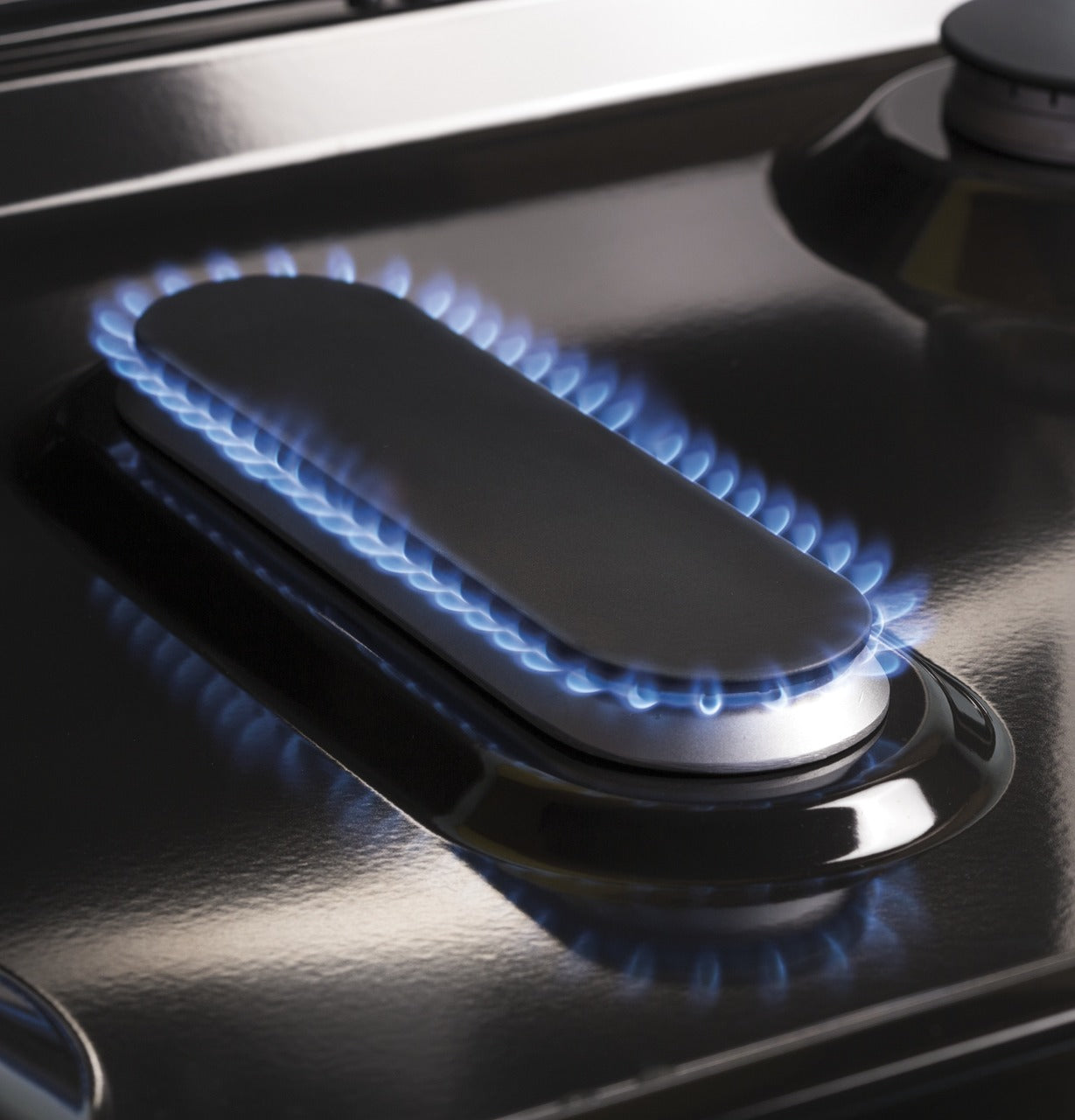

| Burner - Center | 10,000 BTU Oval |

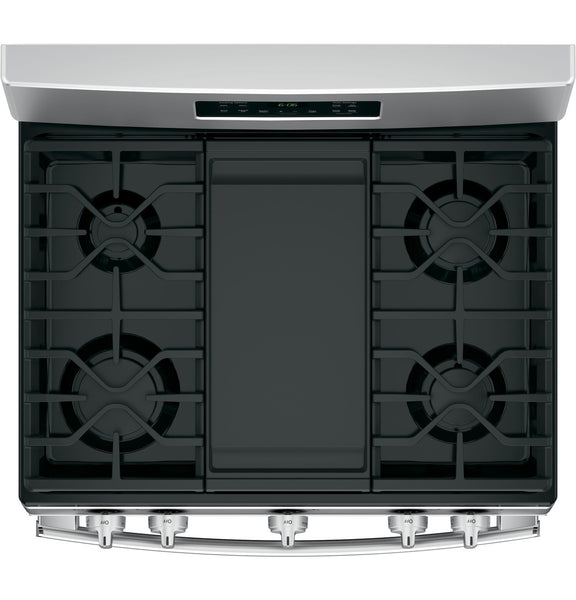

| Cooktop Burner Grate Features | Continuous Grates |

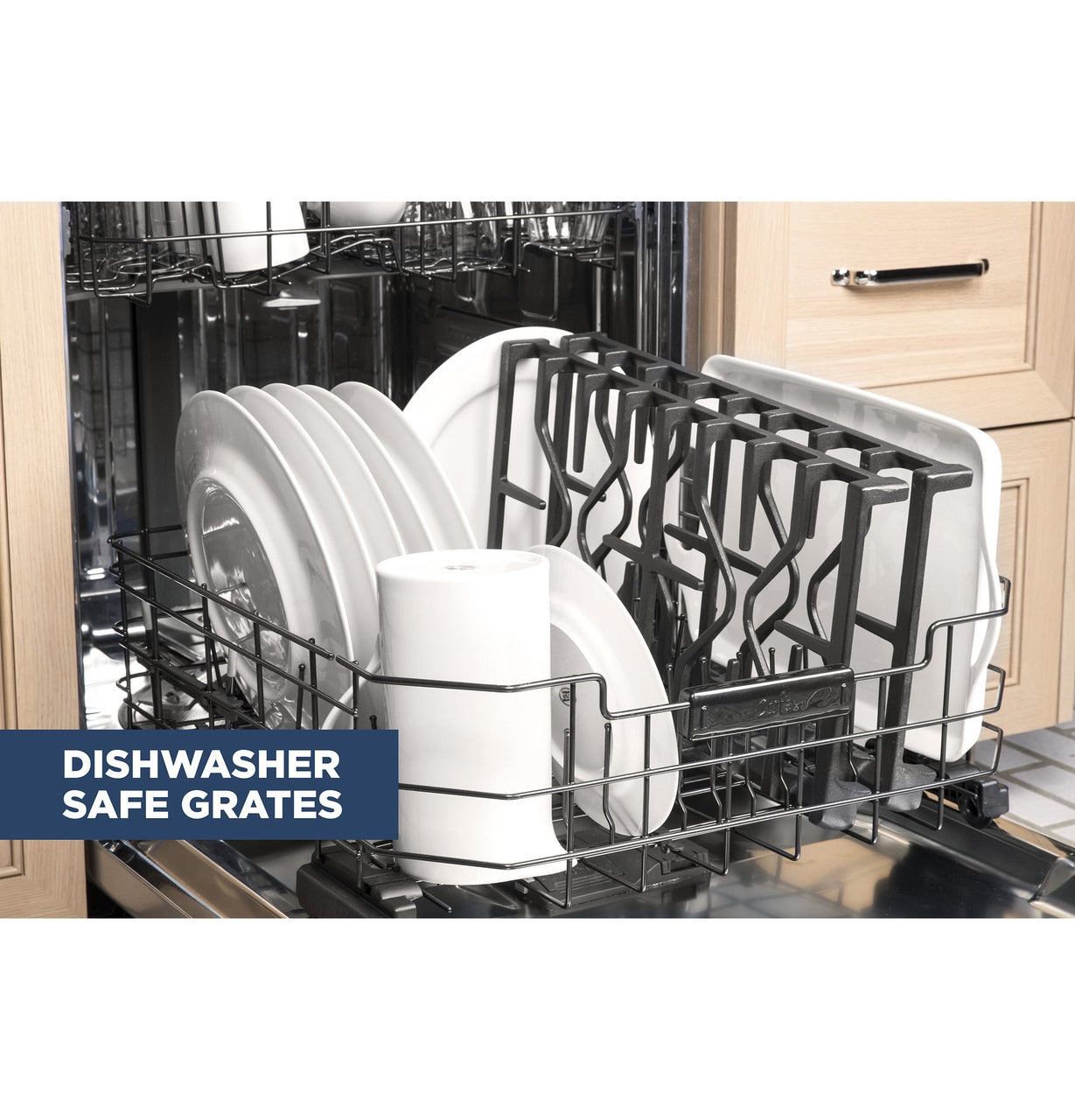

| Cooktop Burner Grate Material | Heavy Cast Iron |

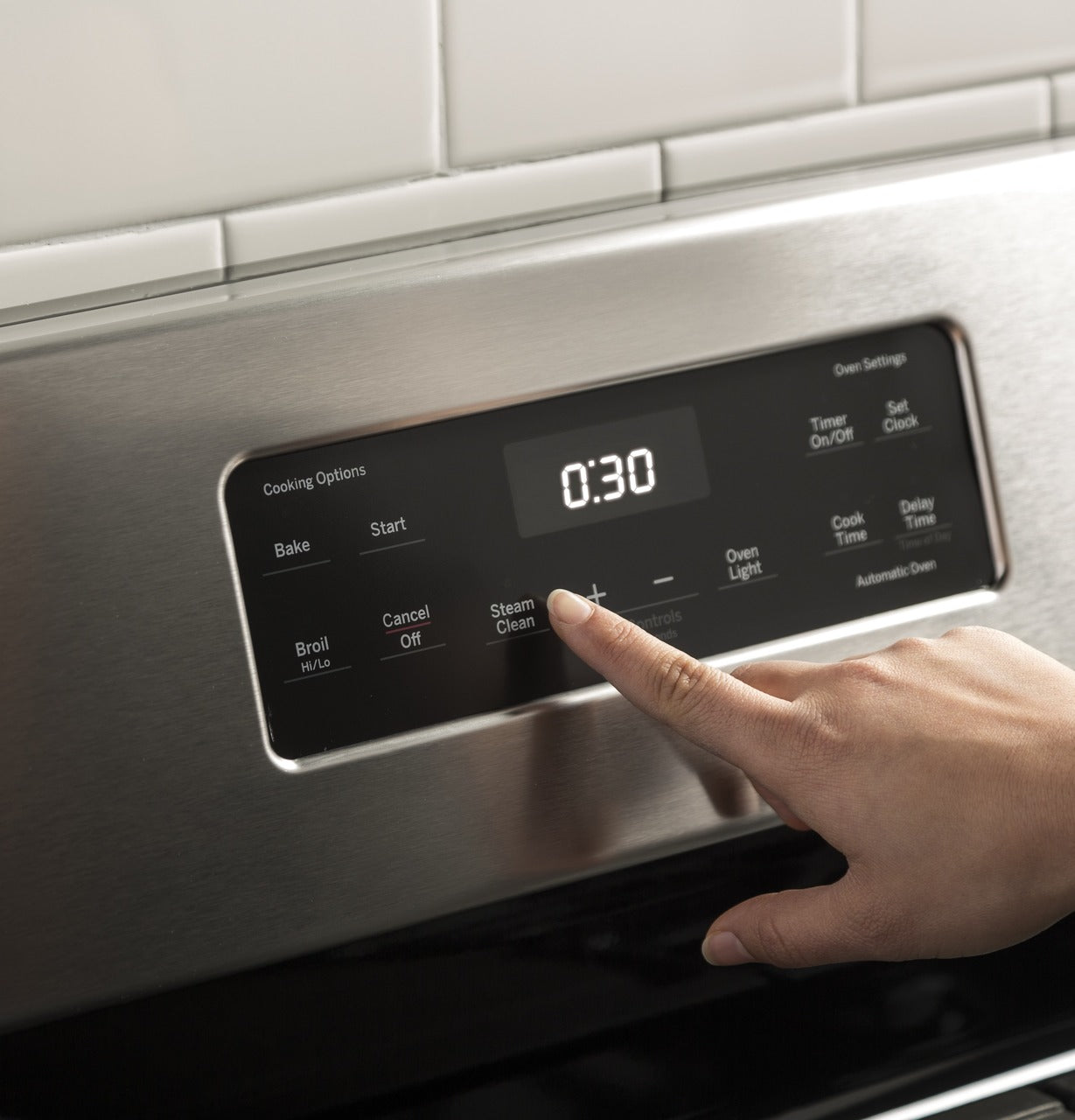

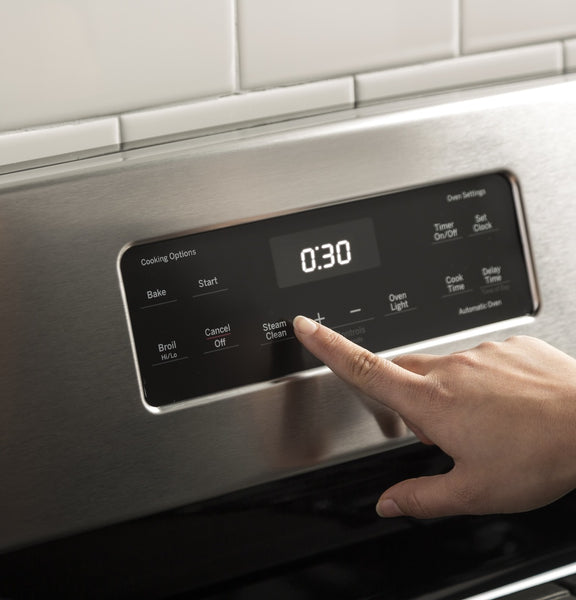

| Control Type | Electronic Touch |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability |
| Control Location | Front |
| Cooking Technology | Traditional |
| Product Type | Free-Standing Single Oven |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |

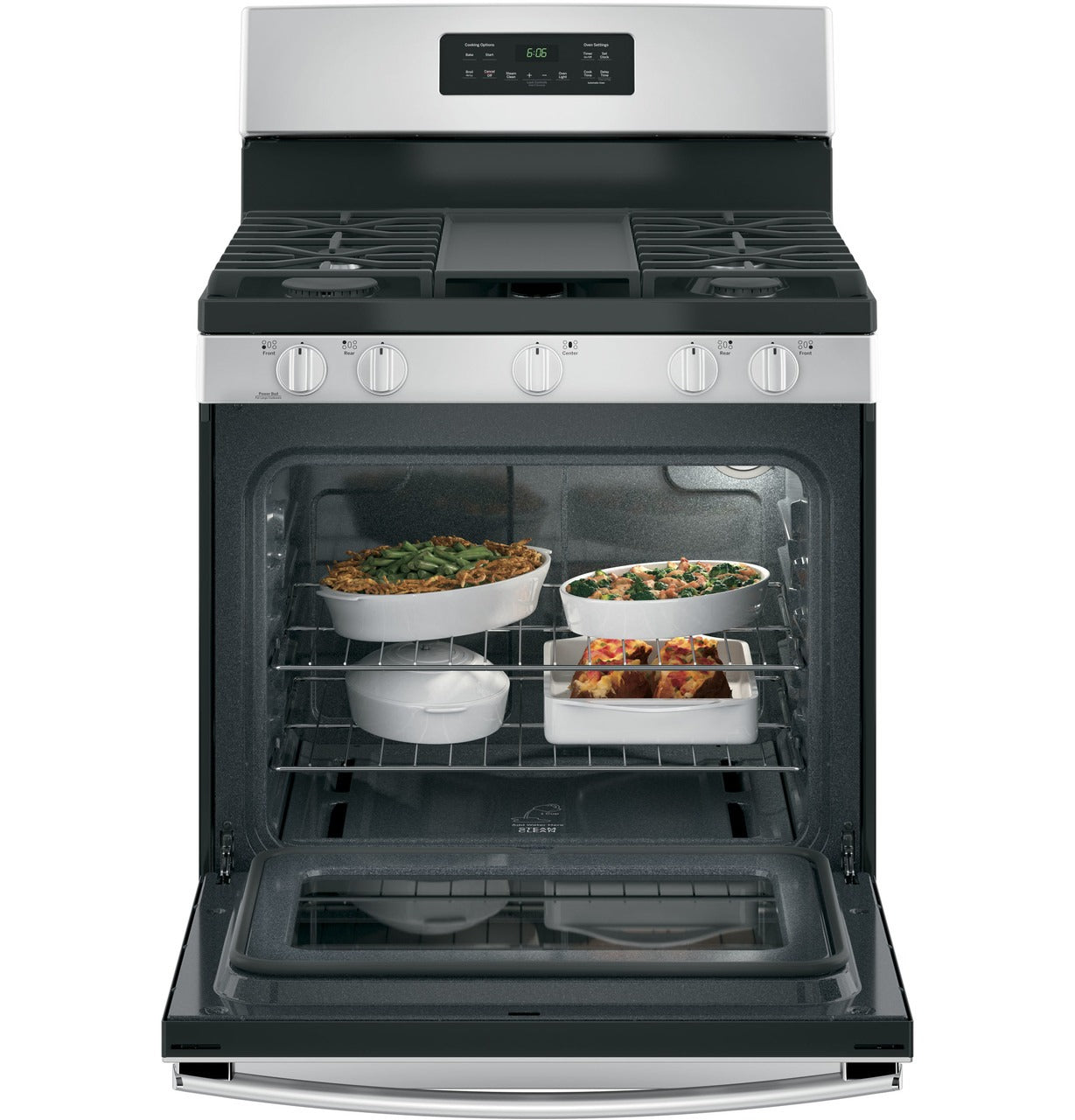

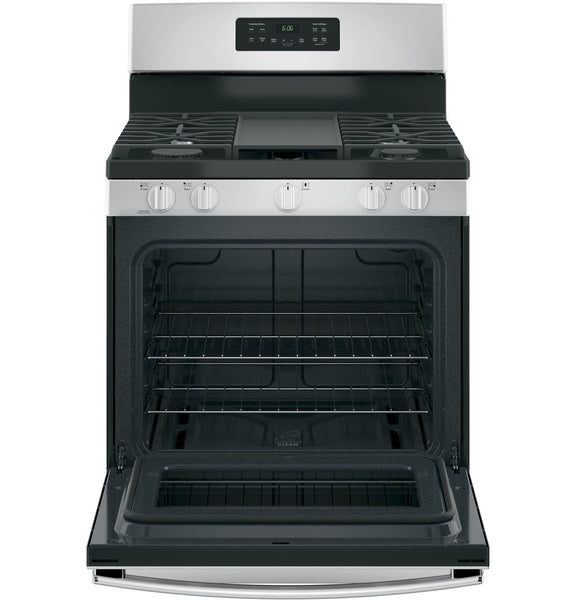

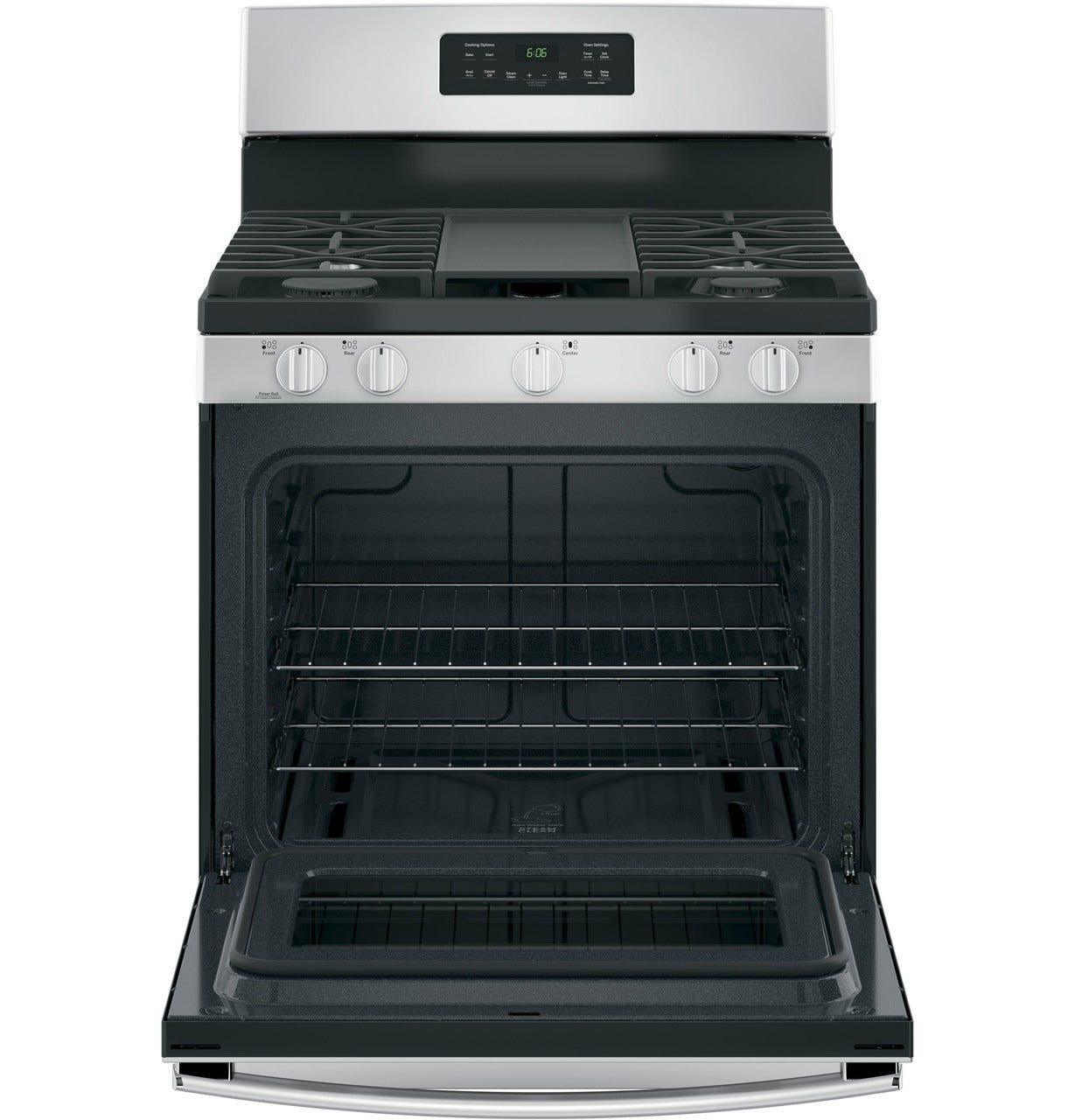

| Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |

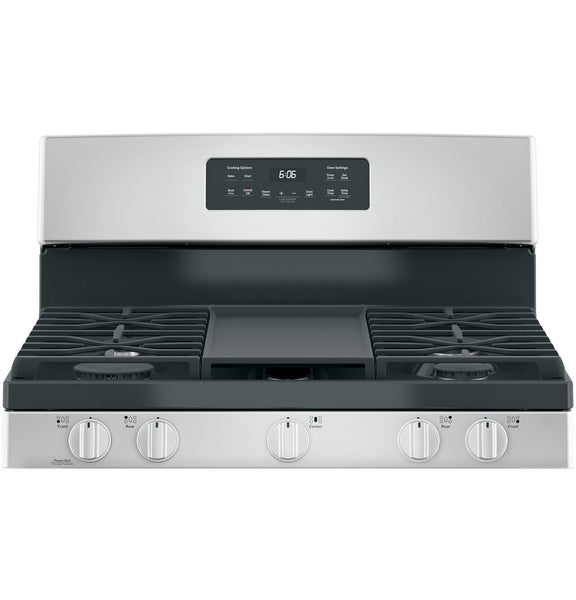

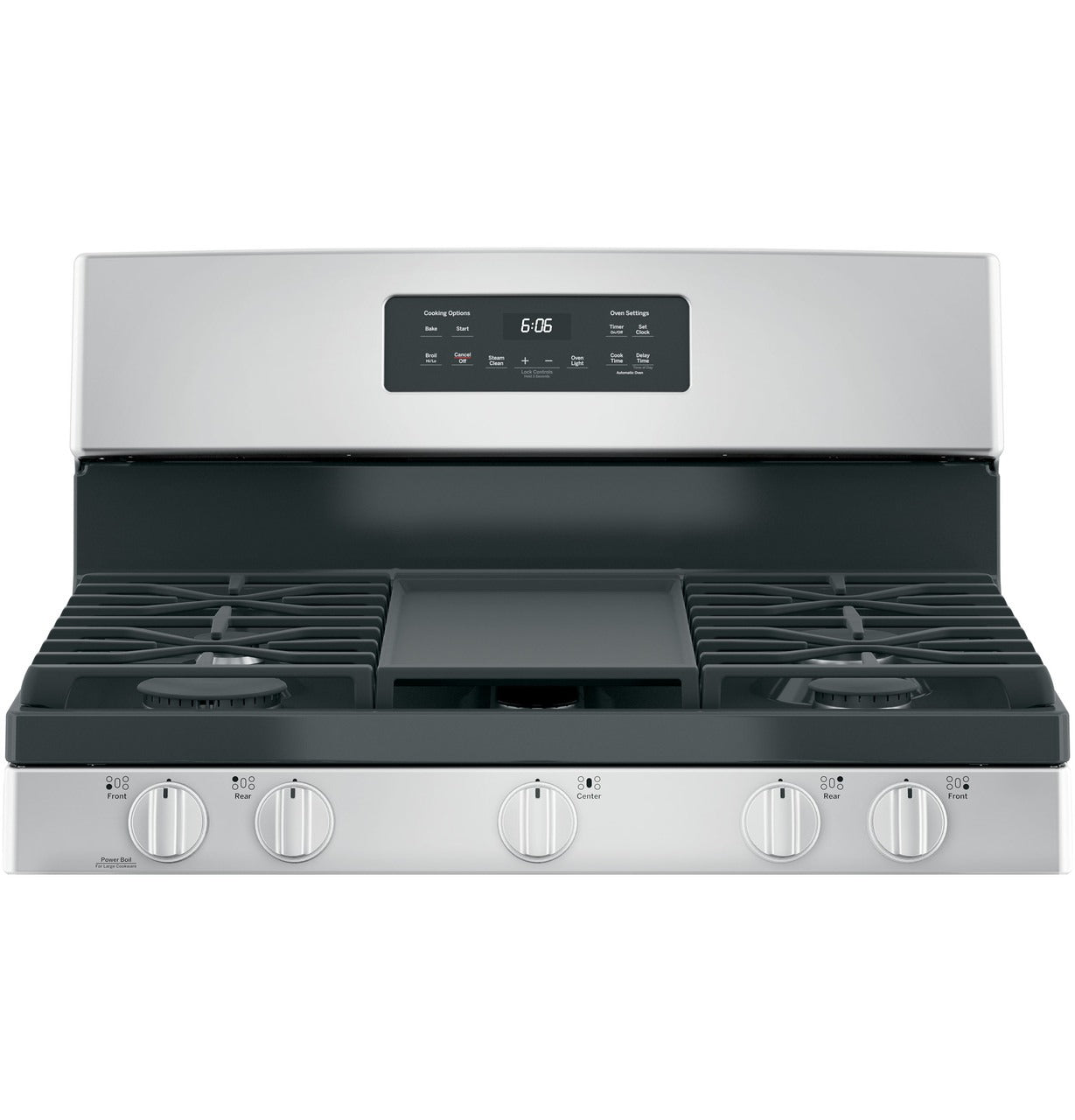

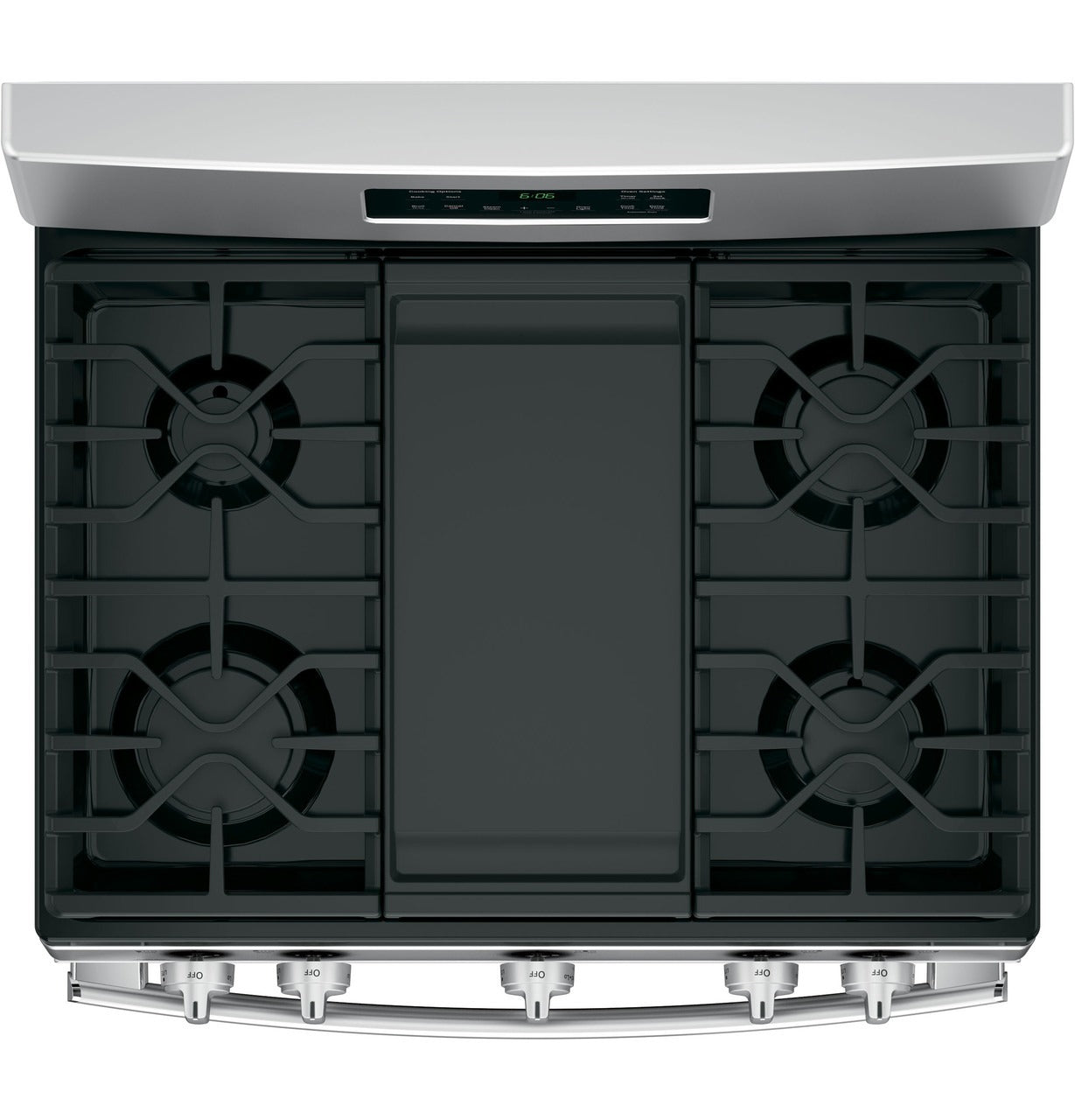

| Cooktop Type | Continuous Grates with Griddle |
| Drawer Type | Broiler |
POWER / RATINGS
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
WEIGHTS & DIMENSIONS
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30.0 in |
| Net Weight | 150.0 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28.75 in |
| Overall Height | 47.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Overall Width | 30.0 in |
| Depth with Door Open | 46.25 in |
