Quick Preheat
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

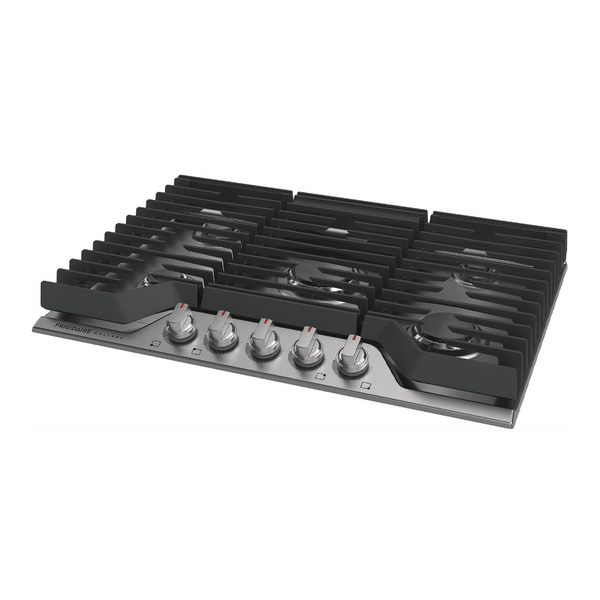

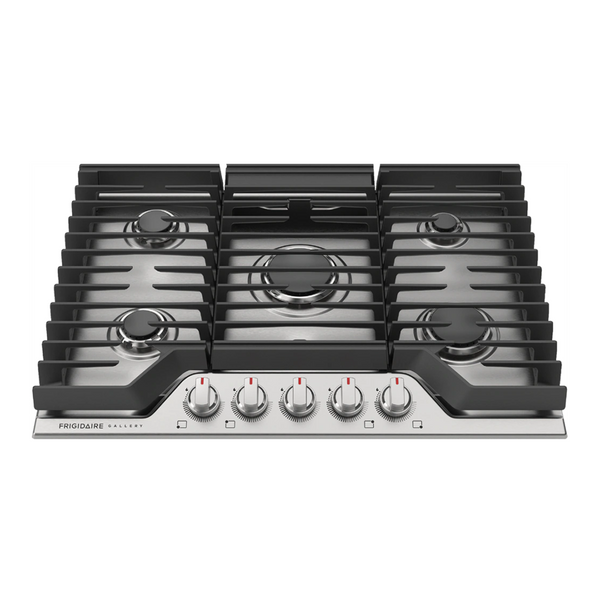

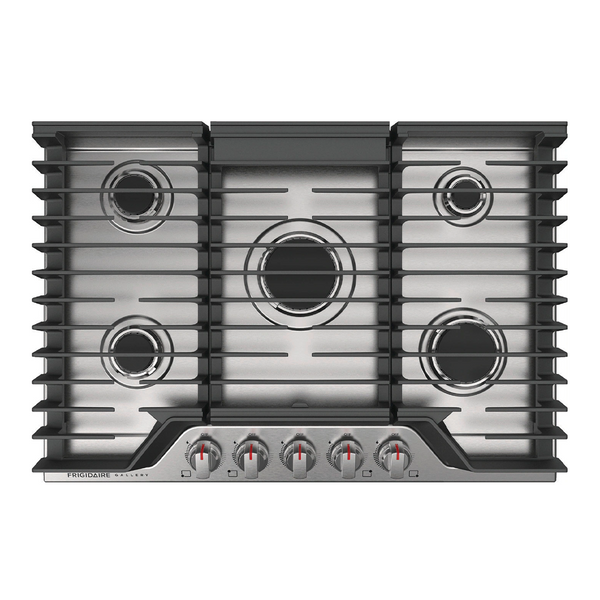

Five Burner Cooktop
This cooktop features five burners including a 5,000-BTU simmer burner and a 18,000-BTU Quick Boil Burner that gets meals on the table, faster.

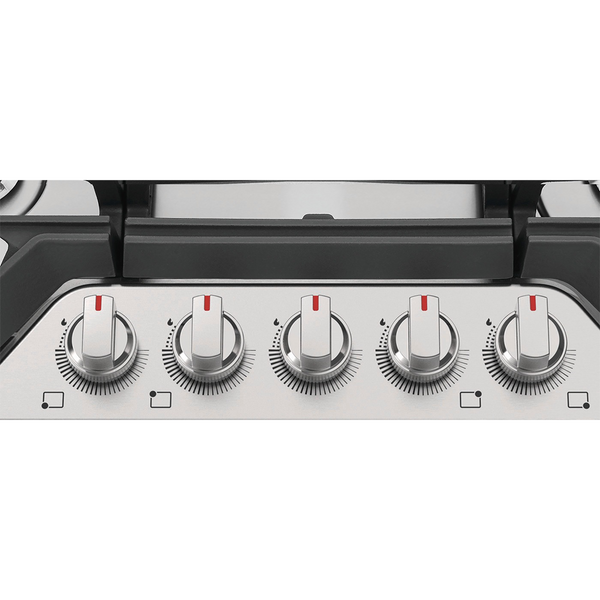

Backlit LED Knobs
Lights up when the cooktop is turned on.
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Spill Safe® Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Specifications
Certifications and Approvals
ADA Compliant - Yes
CSA Listed - Yes
UL Listed - Yes
Cooktop
Cooking Surface Type - Gas
Grate Material - Cast Iron
Grate Quantity - 3
Grate Style - Continuous
Cooktop Performance
Right Front Element Burner - 12000 BTU
Right Rear Element Burner - 5000 BTU
Left Front Element Burner - 9500 BTU
Left Rear Element Burner - 7500 BTU
Center Front Element Burner - 18000 BTU
Dimensions and Volume
Height - 2 7/16"
Width - 30"
Depth - 21"
Height - 2 7/16"
Width - 30"
Depth - 21"
Cutout Height - 7 1/2"
Minimum Cutout Width - 27 1/4"
Minimum Cutout Depth - 19"
Maximum Cutout Width - 29 5/16"
Maximum Cutout Depth -20"
Electrical Specifications
Minimum Circuit Required - 5 Amps
Voltage Rating - 120 V
Installation
Gas Supply Connection Location - Top Right
Installed Over a Wall Oven - Yes
LP Conversion Kit Included - Yes
Power Cord Included - Yes
Power Supply Connection Location - Top Right
Exterior
Backlit Knobs - Yes
General Specifications
Frigidaire Fit Promise - Yes
Product Weight - 43 lbs
Prop 65 Label - Yes
Warranty - Labor - 1 Year
Warranty - Parts - 1 Year
