EvenTemp® Element
Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

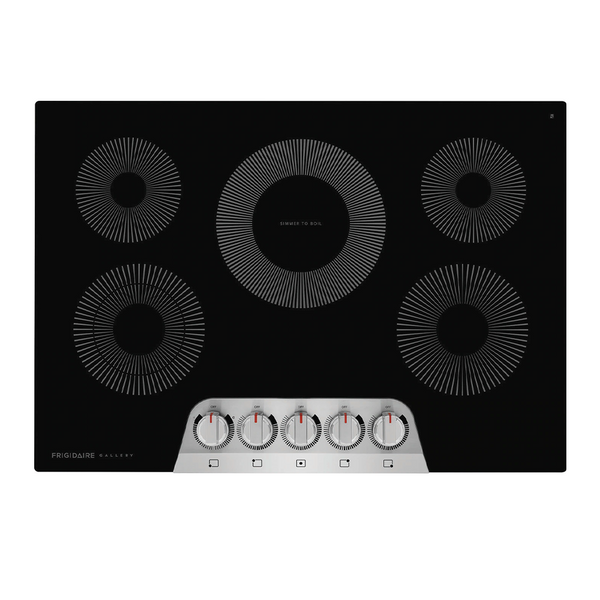

Five Element Cooktop
Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element, Dual Expandable Element, and convenient Keep Warm Zone.

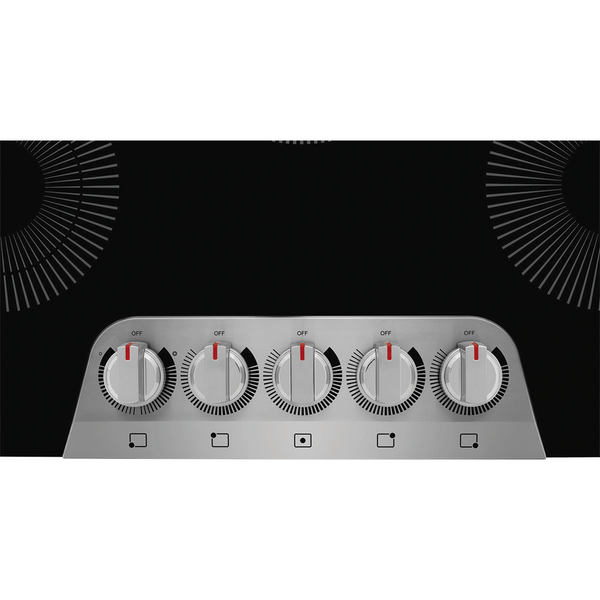

Backlit LED Knobs
Backlit LED knobs light up when your element is in use.
SpaceWise® Dual Expandable Element
Our convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
Easy to Use Front Controls
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Clean Up is Easier with the Ceramic Glass Cooktop
Wipe away spills more easily with the smooth ceramic glass cooktop.
Specifications
Controls
Sabbath Mode - No
Certifications and Approvals
ADA Compliant - Yes
CSA Listed - Yes
UL Listed - Yes
Cooktop
Cooking Surface Type - Smooth
Hot-Surface Indicator Light - Yes
Cooktop Performance
Right Front Element Burner Size - 6"
Right Rear Element Burner Size - 7"
Left Front Element Burner Size - 6"
Left Rear Element Burner Size - 9"
Center Rear Element Burner Size (Small) - 9"
Center Rear Element Burner Size (Large) - 12"
Right Front Element Burner - 1200 Watts
Right Rear Element Burner - 1800 Watts
Left Front Element Burner - 1200 Watts
Left Rear Element Burner - 3200 Watts
Center Rear Element Burner (Small) - 1800 Watts
Center Rear Element Burner (Large) - 3000 Watts
Dimensions and Volume
Height - 2 5/8"
Width - 36 3/4"
Standard Width - 36"
Depth - 21 3/8"
Cutout Height - 5"
Minimum Cutout Width - 33 7/8"
Minimum Cutout Depth - 19 1/8"
Maximum Cutout Width - 36 1/8"
Maximum Cutout Depth - 20 1/2"
Electrical Specifications
Amps @ 240 Volts - 43.3 Amps
Connected Load @ 240V - 10.4 kW
Minimum Circuit Required - 50 Amps
Voltage Rating - 240 V
General Specifications
Product Weight - 35 lbs
Prop 65 Label - Yes
Warranty - Labor - 1 Year
Warranty - Parts - 1 Year
AB-1200 - Information available at frigidaire.com/en/ab1200
Installation
Installed Over a Wall Oven - Yes
Power Supply Connection Location - Right Center
Display
Display Type - Mechanical

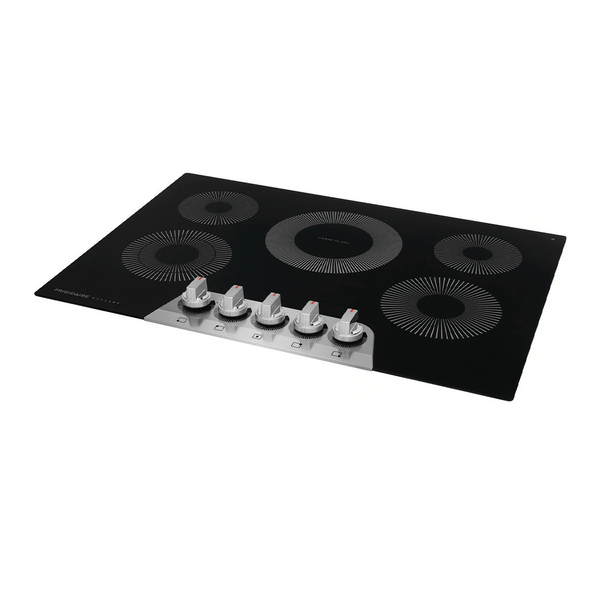

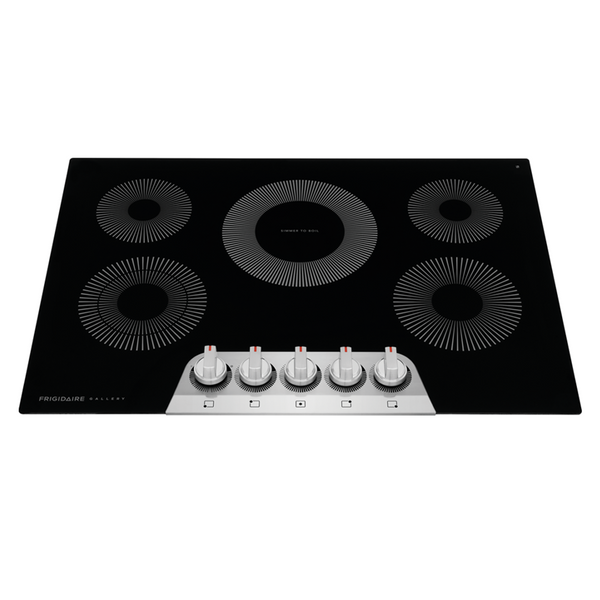

Frigidaire Gallery 36" 5 Burner Electric Cooktop - Stainless Steel
$114,999 JMD
