Specifications
| Rated Voltage | 1000V |
| Input | 2string |
| output | 2string |
| Temperature range | -25℃~+55℃ |
| Certificate | TUV / CE / CB /TUV |
| Enclosure |
PC + ABS (shell flame retardant & UV resistant)
|
|
IP Protection Class(IEC60529)
|
IP65 |
| Materials | Polycarbonate / ABS |
| Spec | UV resistance and Flame retardant |
| DC switch | 1000V/32A x 2 |
| Rated Voltage | 1000V |
| Rated Current | 40A |
| DC SPD | 1000V/40kA x 2 |
| Max Operating Voltage | 1000V |
| Max Discharge Current | 40KA |
| Nominal discharge current | 20KA |
| DC Fuse | 1000V/15A x 4 |
| Rated Voltage | 1000V |
| Fuse link | 15A 10*38MMMM |
| Finger safe touch | YES |
| LED indicator | YES |

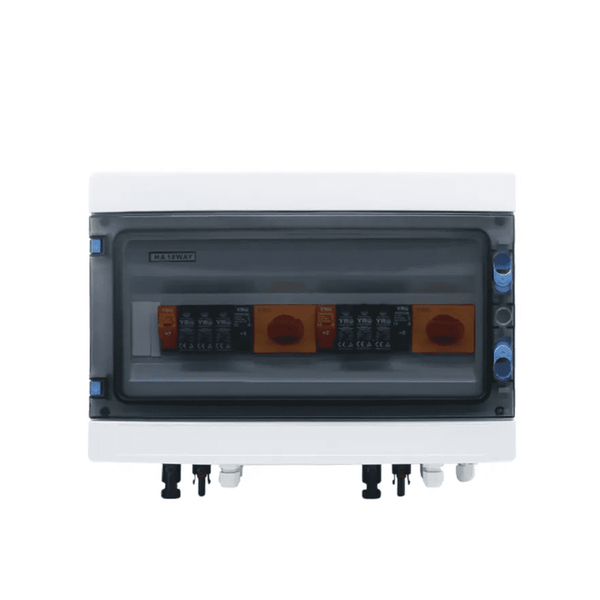

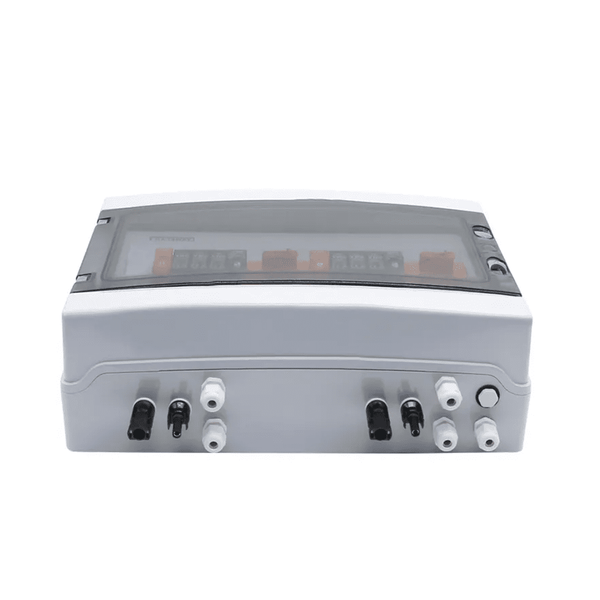

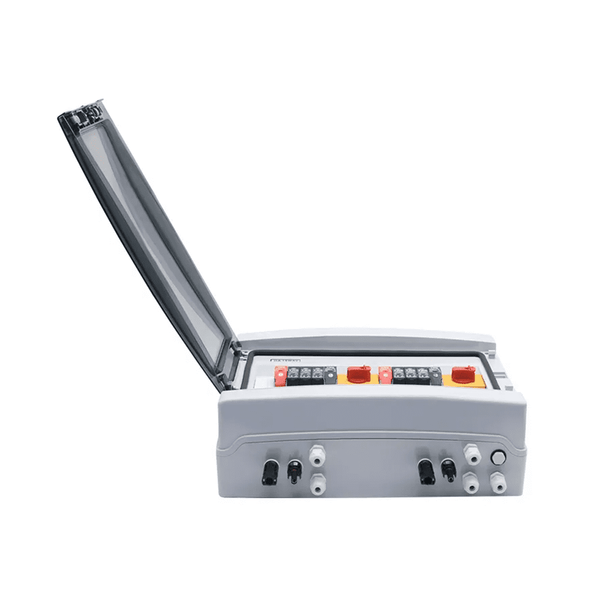

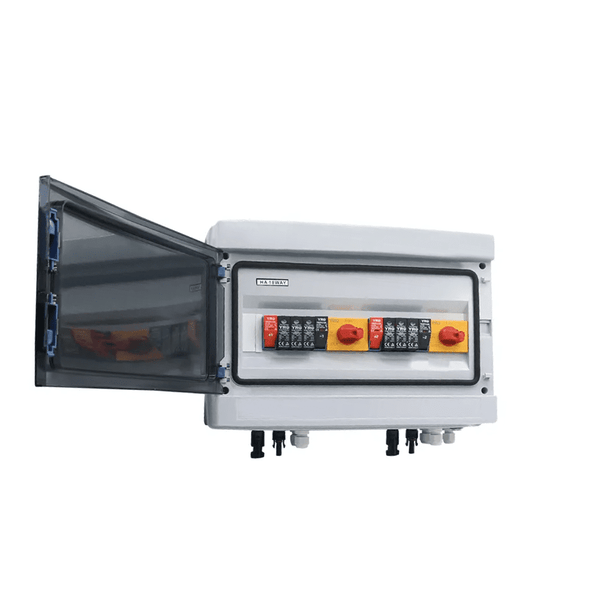

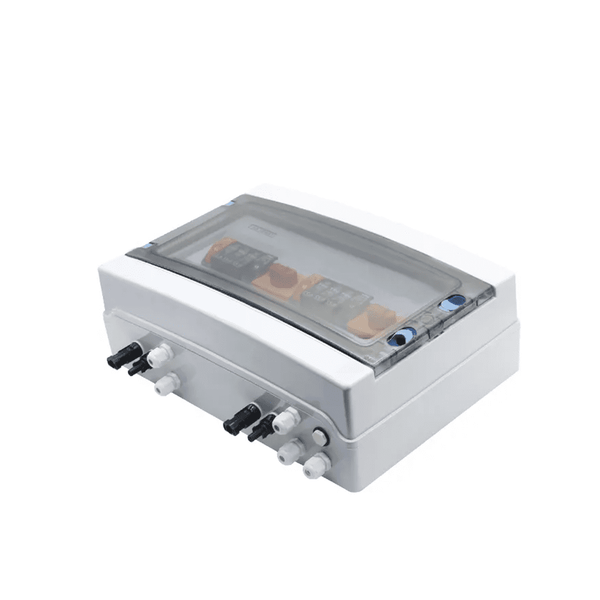

15A 1000V 2 In 2 Out DC Combiner Box Complete with Fuses, Breakers, Lighting Arrestors, Isolators & Transparent WP Cover
$24,500 JMD
