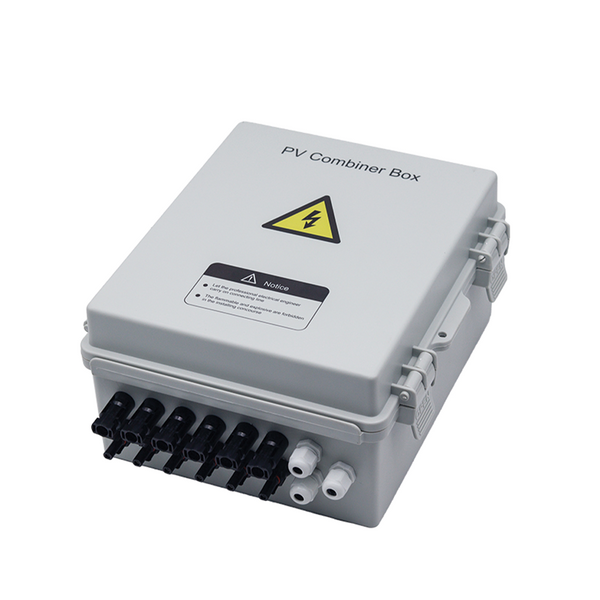

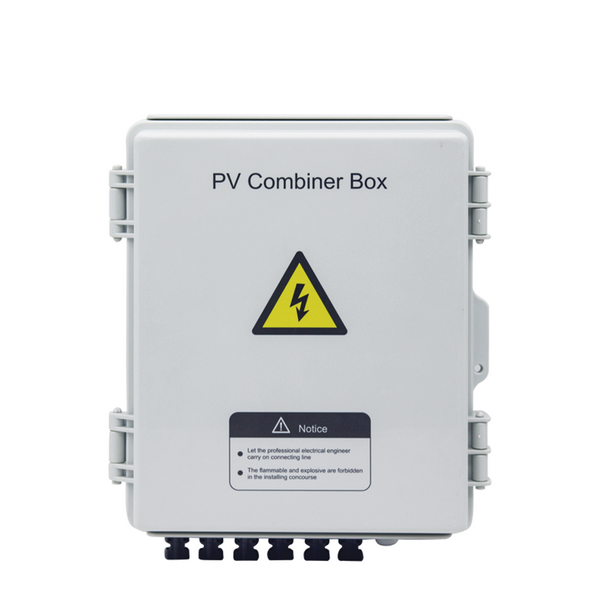

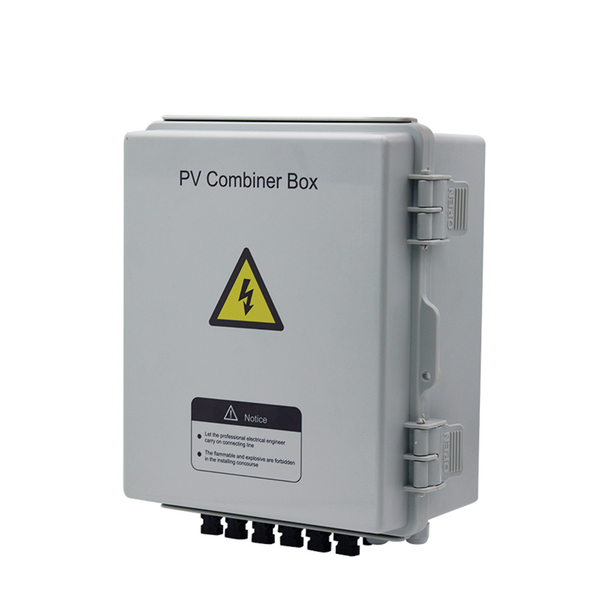

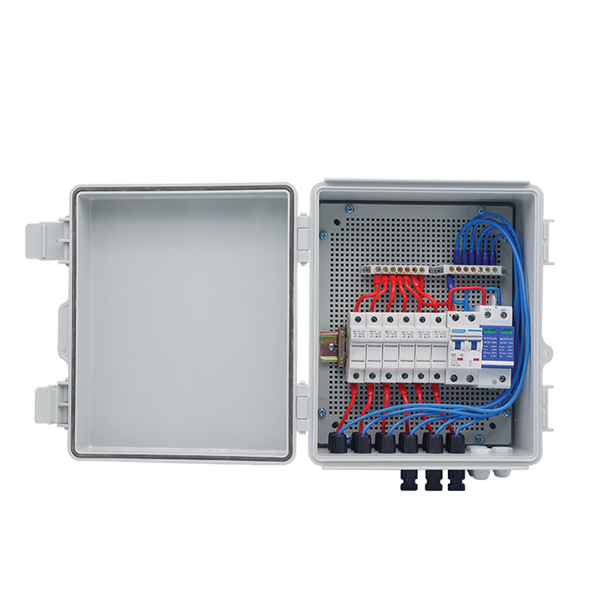

6 IN 1 OUT Combiner Box complete W- Fuse, SPD & DC Breakers

$28,500 JMD

6 – 1 string 1000v Ip66 Panel Array Power Solar Pv String Combiner Box
..View more

Hurry Up! Only 974 Left in Stock!

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: CCB61

System maximum dc voltage	550/1000
Maximum input strings	6
Maximum input current for each string	15A
Maximum output switch current	20A/32A
Number of inverter MPPT	1
Number of output strings	1
Nominal discharge current	20KA
Maximum discharge current	40KA
Voltage protection level	2.8KV/3.8KV
Maximum continuous operating voltage Uc	630V/1050V

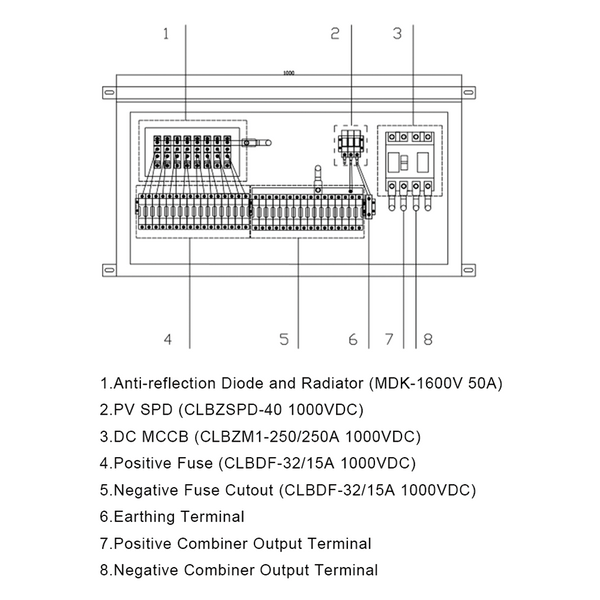

SMC4 Connectors/dc fuse/dc surge protector	Standard
Monitoring module/Preventing diode	Optional
Box material	PC/ABS
Installation method	Wall mounting type
Operating Temperature	-25℃--+55℃
Permissible relative humidity	0-95%, no condensation
