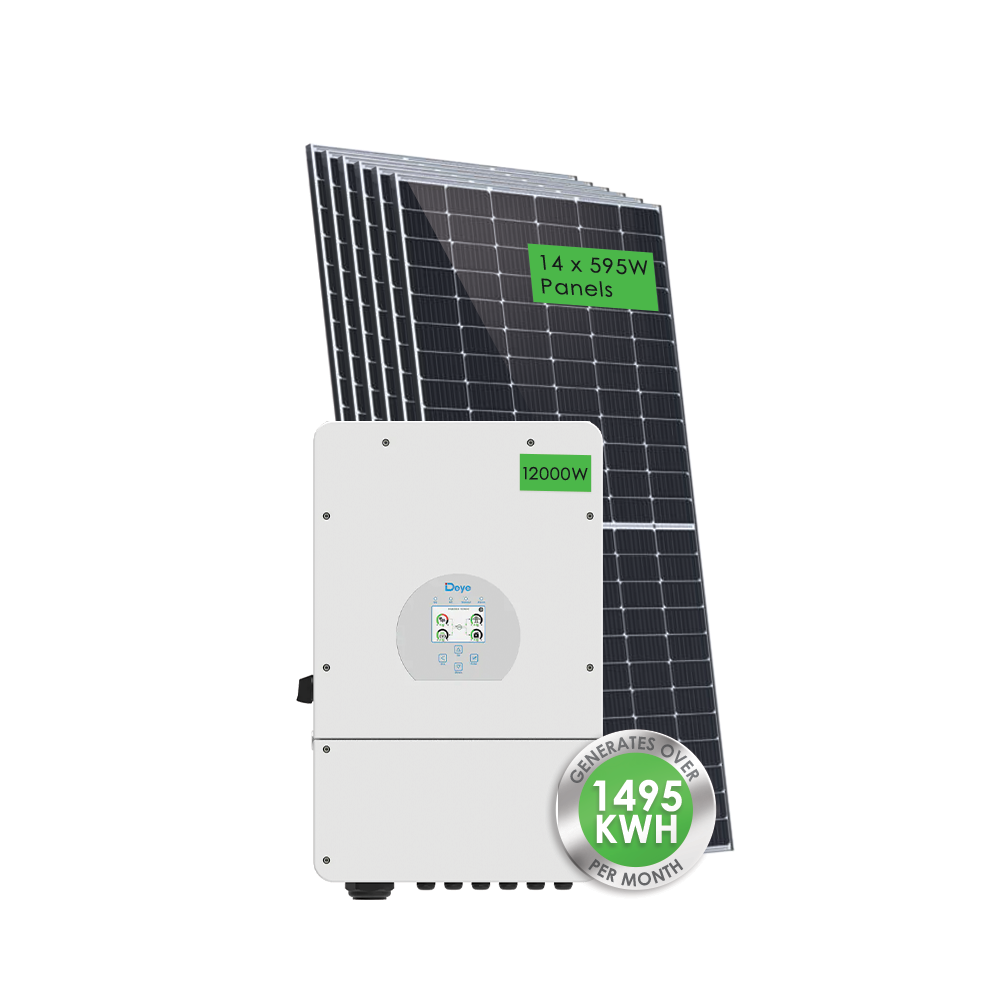

Components

- 1 x Deye SUN 12K-SG 12000W Hybrid Inverter
- 14 x 595W Soluxx Bi-Facial TopCon Mono Grade A Solar Panels

Inverter Features

• Max PV Input Power - 15600W
• PV Input Voltage 125-500Vd.c
• AC Output Rated Power - 12000W
• AC Output Frequency - 50/60Hz
• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 190A
• Frequency droop control, Max.16pcs parallel
• DC couple and AC couple to retrofit existing solar system
• Support storing energy from diesel generator
• Max. battery charge efficiency of 95.4%
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
• Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.


COMPONENT DATA SHEETS

• Inverter – Deye SUN-12K-SG02LP2-US-AM3
• Panels – SOLUXX 595W Bi-Facial



Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
