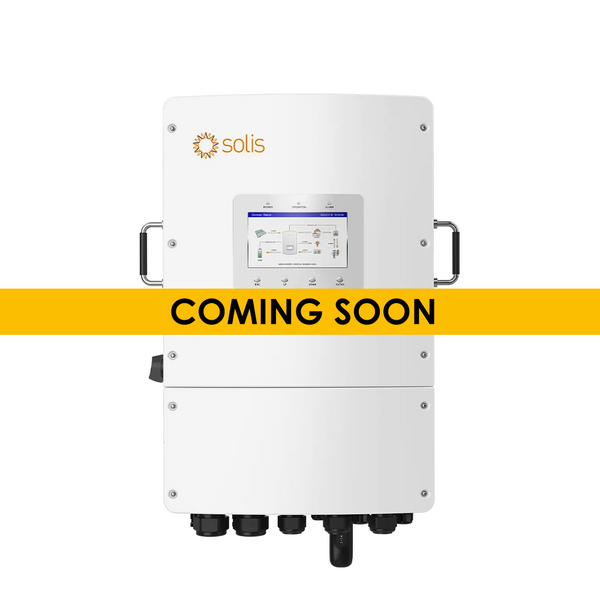

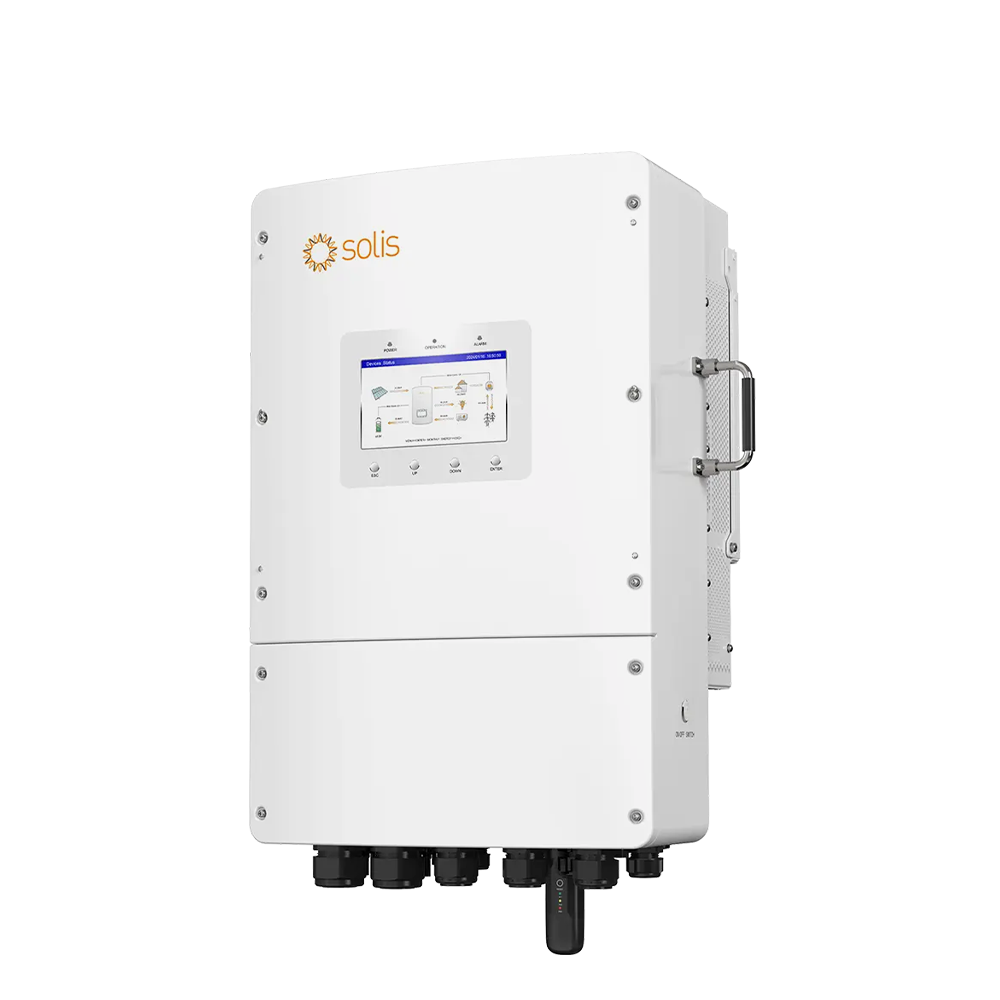

Model#: S6-EH3P18K02-NV-YD-L
PV Input parameter

• Max. PV input   -   28.8KW
• Mppt Input Voltage Range  -    200 - 850 V
• MAX. input current per MPPT   -    42 A
• MPPT tracker - 2

 AC Output

• Rated Power   -   18kVA
• Rated Output Voltage  -    3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
• Nominal output frequency   -   50/60Hz
• Automatic switchover time   -   <10ms

Battery parameter

• Battery Voltage Range   -   40～60V
• Rated Battery Voltage    -   48V
• Max. Hybrid Charging Current   -   320A

• Battery Type -  Li-ion / Lead-acid

System

• Ingress Protection   -     IP66
• Dimensions(W*D*H)   -      430 × 660 × 305 mm
• Weight   -     42 kg
• Max. Efficiency   -     97.5%
• Operating Ambient Temperature Range   -   -25°C to 60°C
• Anti-Islanding Protection   -   Yes
• Output Over Current Protection   -   Yes
• Short Circuit Protection   -   Yes
• DC Reverse-Polarity Protection    -     Yes




Click link to view Full product specification

S6-EH3P(8-18)K02-NV-YD-L_three phase
