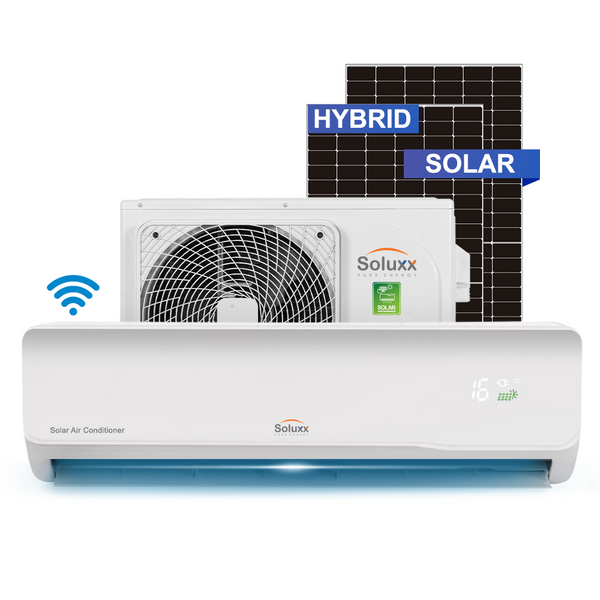

Soluxx 12000 BTU Solar Hybrid Air Conditioner (With Solar Panels)

$255,999 JMD

Features

Up to 100% Energy Savings in Daytime from Solar Powered Cooling
Full DC Inverter Technology for Optimized Unparallel Cooling Efficiency
Solar Power Priority Cooling with Grid Power Limiter Technology
Smart WIFI App Control - Control & Monitor from Anywhere
Power Priority Modes: DC Mode, AC+DC Hybrid Mode, AC Mode
Convenient All In One Integrated Design: No Additional inverter, Battery or Charge controller needed.
Cooling & Heating Modes - Wide operating temperature (-10℃ to 58 ℃)
5 Year Warranty on Compressor & 1 Year Warranty on All Other Parts
Solar Panel Power Required - 1170W (2 * 585W Solar Panels in Series)

Hurry Up! Only 0 Left in Stock!

Add to compare Added to compare Add to wishlist Added to wishlist

Sku: SLX-SACAK-12K

Note: This listing Is Inclusive Of The AC Unit & The Solar Panel Kit.

UNIT SPECIFICATION

Model		Unit	12K
Climate Type	Tropical</= 58℃		T3/T1
Application area		m2	12-20
Power Supply	AC Power	Ph-V-Hz	1Ph 208V-240V/50-60HZ
	DC Power (PV in Series)	V	80-380V
	DC Power Current	A	</=10A
Advised Solar Panel		Pcs	(2*5850W in Series) Total 1170W
Rated Cooling	Capacity(T1)	W	3510(900-3900)
		BTU	12000(3000-13300)
	Power input(T1)	W	940(190-1270)
	Capacity(T3)	W	2910
		BTU	9900
	Power input(T3)	W	1050
Rated Heating	Capacity	W	4100(1000-4500)
		BTU	14000(3000-15300)
	Power input	W	1170(190-1700)
T1 EER (W/W)/ (BTU/W)		/	3.75/12.75
T3 EER (W/W)/ (BTU/W)		/	2.75/9.45
COP (W/W)/ (BTU/W)		/	3.50/11.95
Dehumidification capacity		L/h	1.3
Compressor	Model	/	WHP04200
	Type	/	2xRotary Inverter
	Brand	/	Highly
Indoor fan motor	Model		BLDC-15W
	Speed(Turbo/Hi/Mi/Lo)	r/min	1300/1200/1100/950
Indoor air flow(Turbo/Hi/Mi/Lo)		m3/h	540/485/435/350
Indoor noise level (Turbo)		dB(A)	≤42.5
Indoor unit	Dimension(W×H×D)	mm	840×205×295
	Packing (W×H×D)	mm	920×290×360
	Net weight/Gross weight	Kg	9.0/12.5
Outdoor fan motor	Model	/	BLDC-40W
	Speed	r/min	880
Outdoor air flow		m3/h	2100
Outdoor noise level		dB(A)	≤52
Outdoor unit	Dimension(W×H×D)	mm	802×564×323
	Packing (W×H×D)	mm	910×622×405
	Net/Gross weight	Kg	33.5/37.5
Refrigerant type		/	R410A
Max Design pressure		MPa	4.3/1.5
Refrigerant copper pipe	Gas side/Liquid side (inch)	inch	3/8 1/4
	Max. refrigerant pipe length	m	15
	Max. difference in level	m	8
Drain pipe size		mm	16
Refrigerant connection copper pipe length		m	3
Connection wire length		m	4
Electronic Expansion Valve		/	Yes

Solar Panel Kit Components

COMPONENT DATA SHEETS
