Components

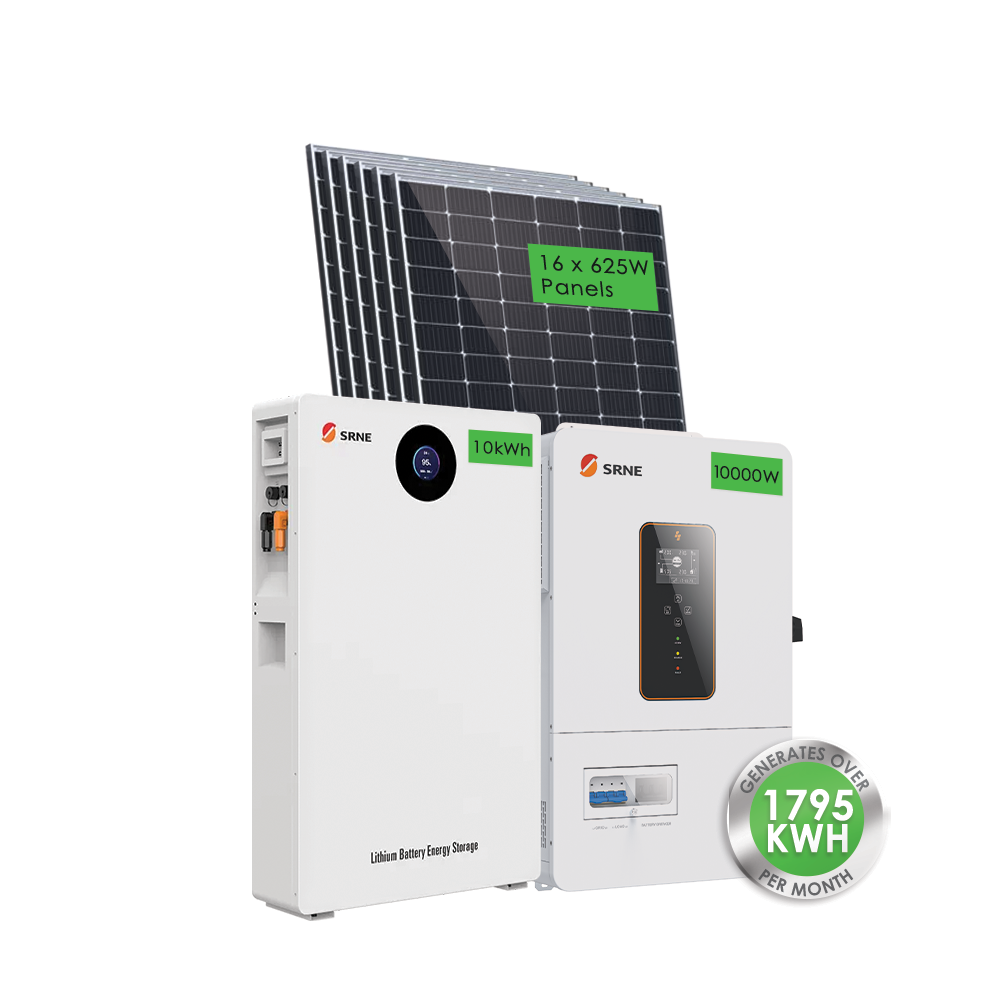

- 1 x SRNE ABP 10000W Hybrid Inverter with Integrated DC & AC Protection Breakers
- 16 x Tong Wei Solar 625W Bi-Facial MonoCrytalline Solar Panel
- 1 x SRNE Wall Mounted Lithium Ion Battery – 10kWh

Inverter Features

• Max PV Input Power - 11000W
• 120/240V Split Phase
• AC Output Rated Power - 10000W
• AC Output Frequency - 50/60Hz
• Two (2) Mppt Input
• 125 – 425V Mppt Input Voltage
• Max. charging/discharging current of 200A
• Integrated AC & DC Protection Breakers
• Works With & Without Batteries
• Battery Voltage Range 40-60 V
• Compatible With lithium-Ion, Lead Acid Batteries
• Max. Efficiency of >=92%
• 1～6 Units Parallel Functionality (More than 3 units in parallel can form a three-phase output）
• Wifi Remote Monitoring & Management
• Generator Input


COMPONENT DATA SHEETS

• Inverter – SRNE_ABP-Series_US_48V_8-10kW_240V_split phase
• Panels –  Tong Wei Solar 625W Bi-Facial

• Battery – SRNE Wall Mounted Lithium Ion Battery - 10kWh


Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
