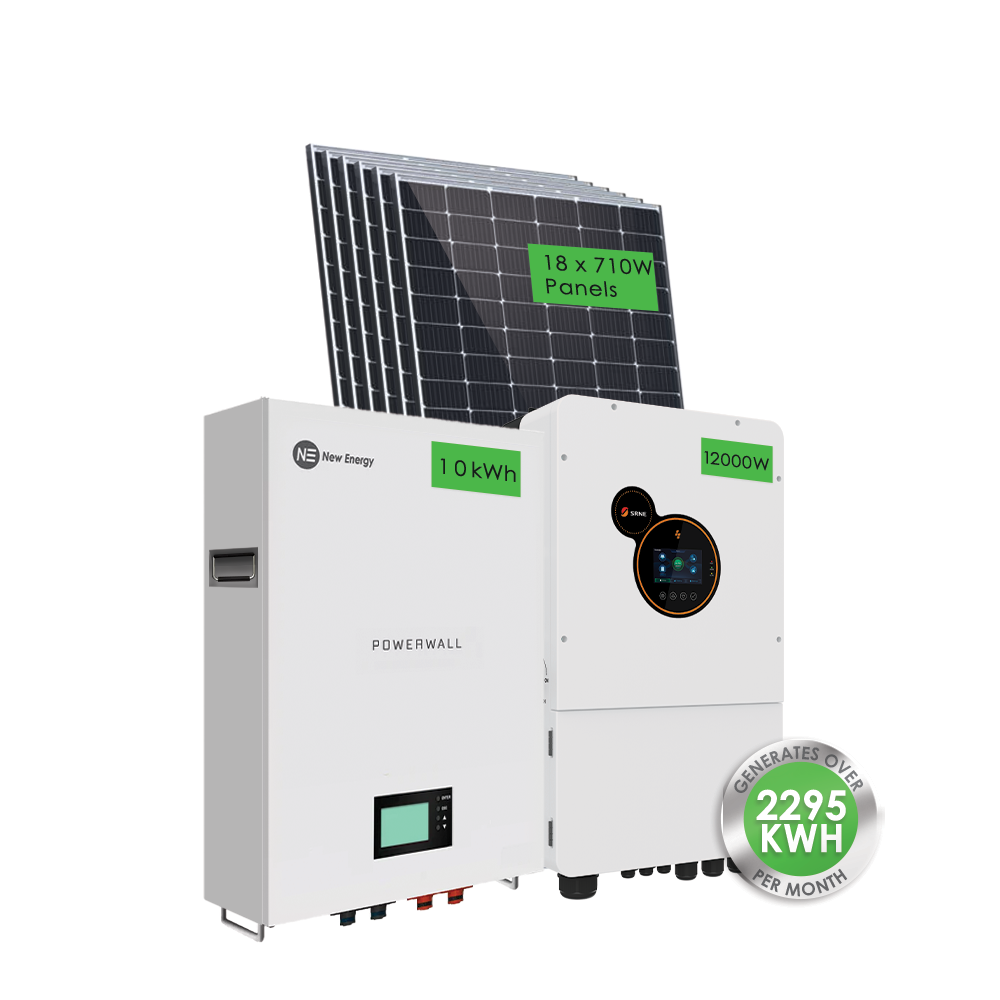

Components

- 1 x SRNE HESP 12000W Full Hybrid Solar Inverter
- 18 x 710W Soluxx Bi-Facial TopCon Mono Grade A Solar Panels
- 1 x Lithium-Ion PowerWall – 10kWh

Inverter Features

PV Input parameter

• Max. PV input   -   13.2KW
• Mppt Input Vol Range  -  125-450V
• MAX. input current per MPPT   -   25/25 A
• MPPT tracker - 2

AC Output(on-grid)

• Rated Output Power   -   12kW
• Max. Output Current   -   50A
• Max. Output Current   -   50A
•


 AC Output(back-up)

• Rated Power   -   12kVA
• Rated Output Voltage  -   120/240Vac，120/208Vac (Single/Split-phase/three phase(Parallel))
• Nominal output frequency   -   50/60Hz
• Automatic switchover time   -   10ms（Typical）

Battery parameter

• Battery Volatge Range   -   40～60V
• Max. Hybrid Charging Current   -   200A


System

• Ingress Protection   -   IP65
• Dimensions(W*D*H)   -    750 x 440 x 240mm
• Weight   -    42kg
• Max. Efficiency   -   97.5%

COMPONENT DATA SHEETS

• Inverter –SRNE HESP 8K-12KW Full Hybrid Solar Inverter

• Panels –SOLUXX 710W Bi-Facial
• Battery – NEW ENERGY LITHIUM ION 10KWH POWERWALL


Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
