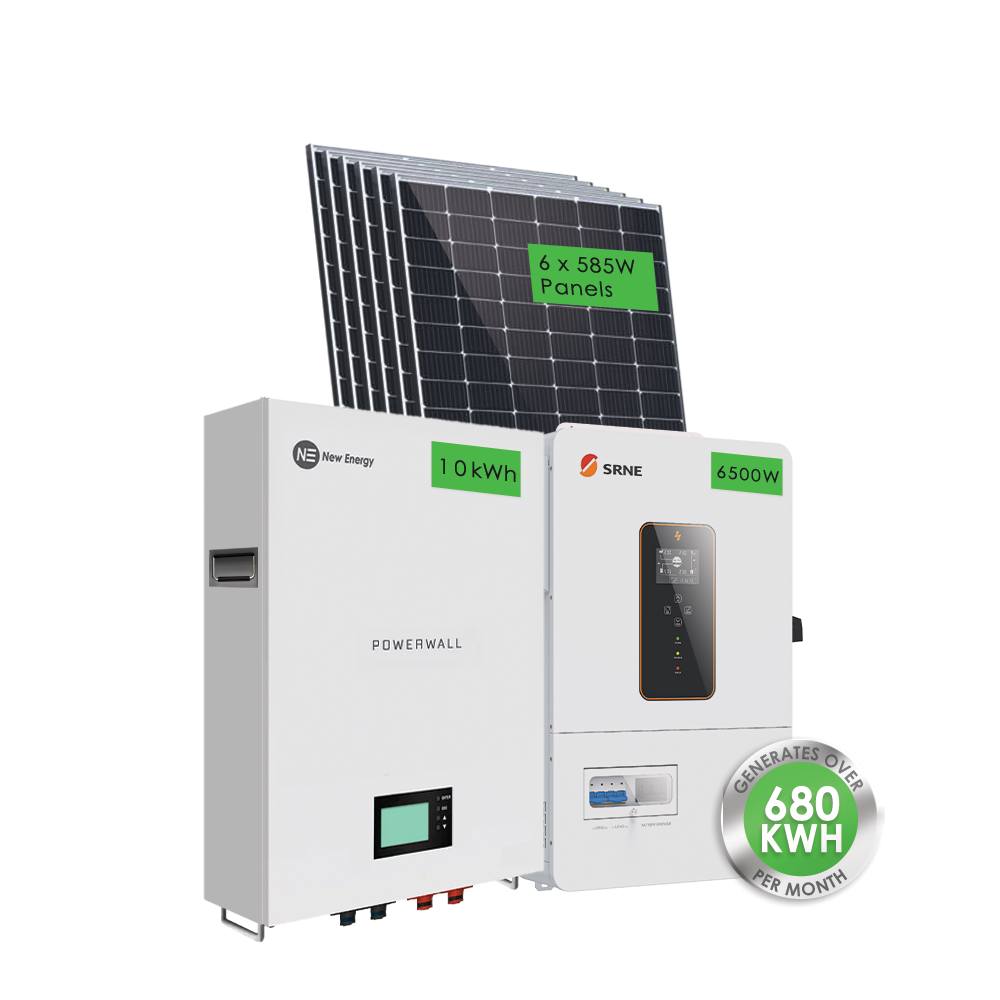

Components

- 1 x SRNE ABP 6500W Hybrid Inverter with Integrated DC & AC Protection Breakers
- 6 x 585W Soluxx Bi-Facial TopCon Mono Grade A Solar Panels
- 1 x Lithium-Ion PowerWall – 10kWh


Inverter Features

• Max PV Input Power - 10000W
• 120/240V Split Phase
• AC Output Rated Power - 6500W
• AC Output Frequency - 50/60Hz
• Two (2) Mppt Input
• 150 – 450V Mppt Input Voltage
• Max. charging/discharging current of 140A
• Integrated AC & DC Protection Breakers
• Works With & Without Batteries
• Battery Voltage Range 40-60 V
• Compatible With lithium-Ion, Lead Acid Batteries
• Max. Efficiency of >=93%
• 1～6 Units Parallel Functionality (More than 3 units in parallel can form a three-phase output）
• Wifi Remote Monitoring & Management
• Generator Input


COMPONENT DATA SHEETS

• Inverter – SRNE_ABP-Series_US_48V_4-6.5kW_240V_split phase
• Panels –SOLUXX 585W Bi-Facial
• Battery – NEW ENERGY LITHIUM ION 10KWH POWERWALL


Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
