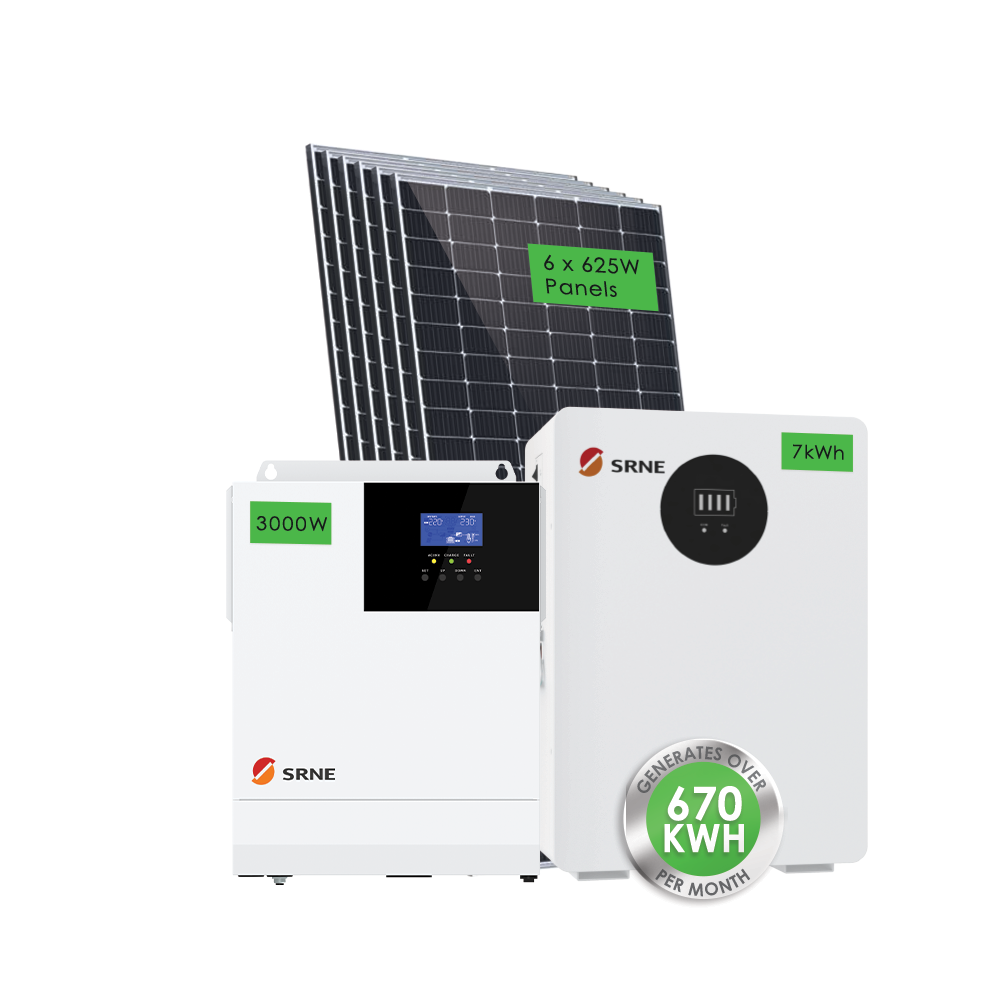

Components

- 1 x SRNE HF 3000W Hybrid Solar Inverter (24V)
- 6 x Tong Wei Solar 625W Bi-Facial MonoCrytalline Solar Panel
- 1 x SRNE Wall Mounted Lithium Ion Battery - 7kWh (24V/280Ah)

Inverter Features

• 120V 50/60Hz Single Phase
• 120 - 450V - MPPT Voltage Range
• 4000W Max PV Input Power
• 3000W AC Output Rated Power
• One (1) Mppt Input
• Up To 80A Charge / Discharge Current
• Works With & Without Batteries (24V)
• Remote Monitoring
• Warranty 3 Years


COMPONENT DATA SHEETS

• Inverter – SRNE HF 3000W Hybrid Solar Storage Inverter
• Panels – Tong Wei Solar 625W Bi-Facial

• Battery –SRNE EOS0 Series


Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
