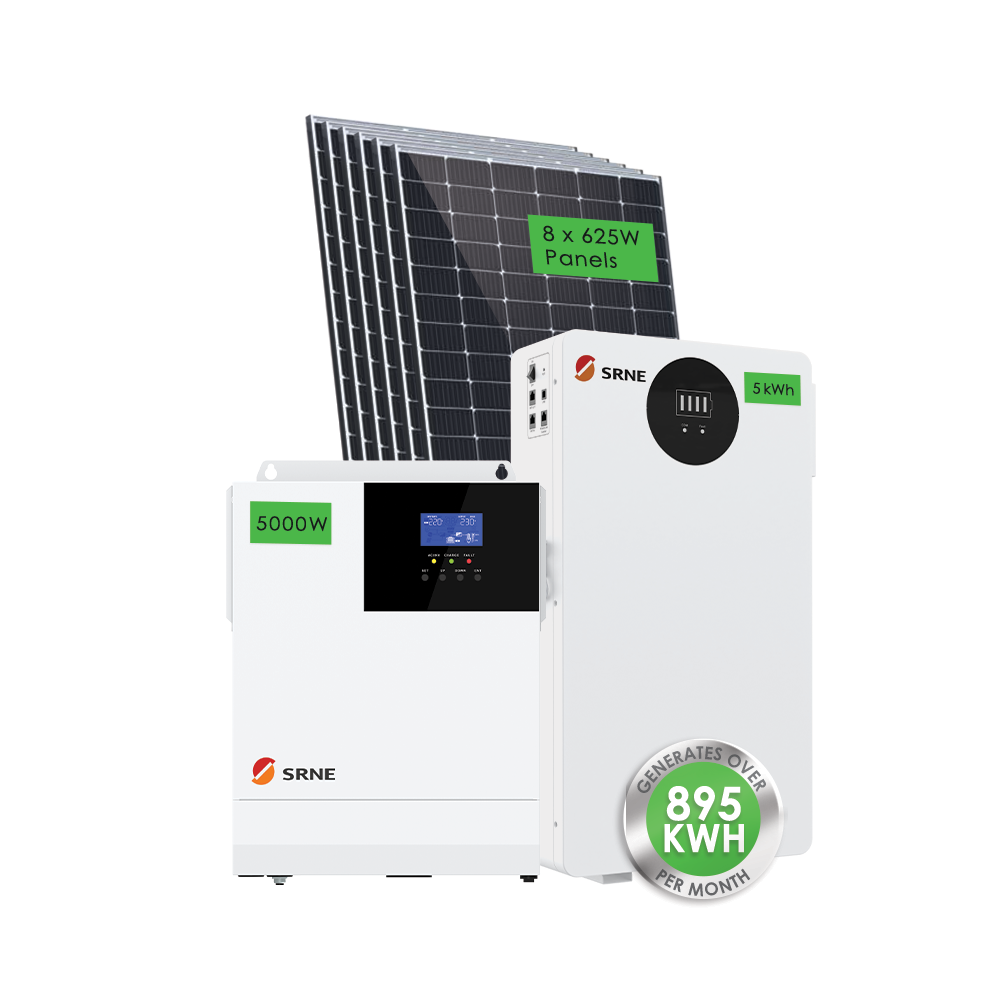

Components

- 1 x SRNE HF 5000W Hybrid Solar Inverter (48V)
- 8 x Tong Wei Solar 625W Bi-Facial MonoCrytalline Solar Panel
- 1 x SRNE Wall Mounted Lithium Ion Battery - 5kWh (51.2V/100Ah)

Inverter Features

• Max PV Input Power - 5200W
• 120Vac, Single-phase
• AC Output Rated Power - 5000W
• AC Output Frequency - 50/60Hz
• One (1) Mppt Input
• 120 – 450V Mppt Input Voltage
• Max. charging/discharging current of 80A
• Works With & Without Batteries
• Battery Voltage Range 40-60 V
• Compatible With lithium-Ion, Lead Acid Batteries
• Max. Efficiency of >=92%
• Wifi Remote Monitoring & Management



COMPONENT DATA SHEETS

• Inverter – SRNE HF 5000W Hybrid Solar Storage Inverter
• Panels – Tong Wei Solar 625W Bi-Facial

• Battery –SRNE SE Series


Note:
KIT Includes; SOLAR PANELS, HYBRID INVERTER W/ INTEGRATED CHARGE CONTROLLER and WIFI MONITORING ADAPATER. Does not consist of Balance‐Of‐System (BOS) Components (i.e, Mounting, Wiring, etc).
