Quick Boil Element

Get meals to the table faster with the powerful 3,000W Quick Boil element.

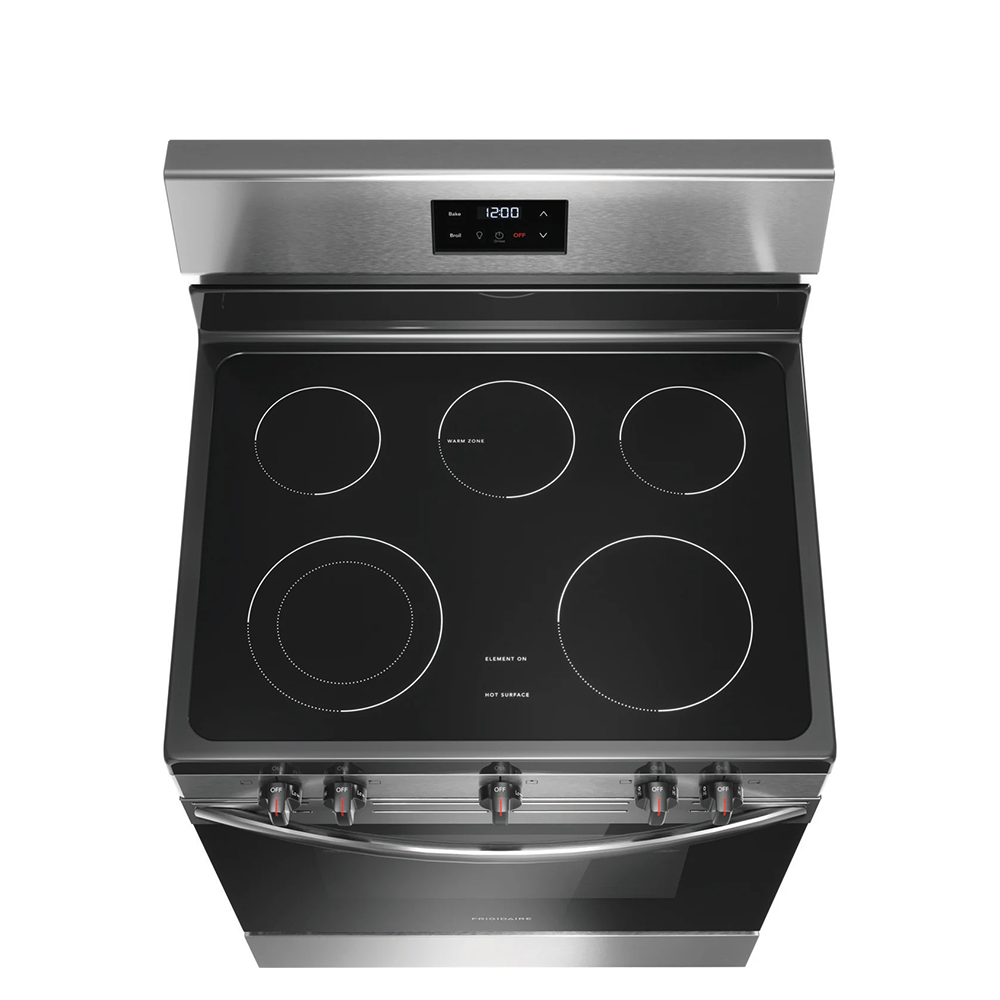

Five Element Cooktop

Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.

Even Baking Technology

Designed to deliver even baking results, every time.

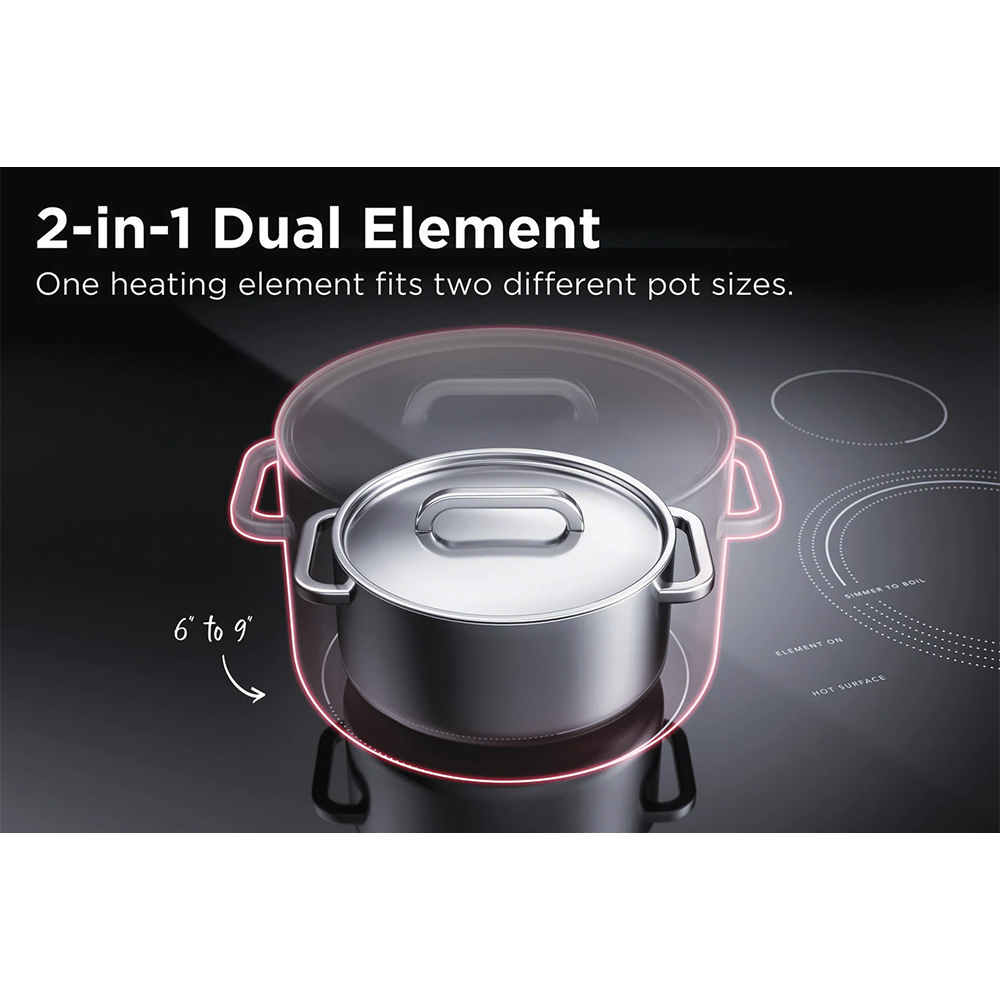

SpaceWise® Dual Expandable Element

Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.

5.3 Cu. Ft. Oven Capacity

Large oven capacity allows you to cook more at once.

Extra Wide Store-More™ Storage Drawer

Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

Cooktop Keep Warm Zone

Keep food warm until everything - and everyone - is ready.

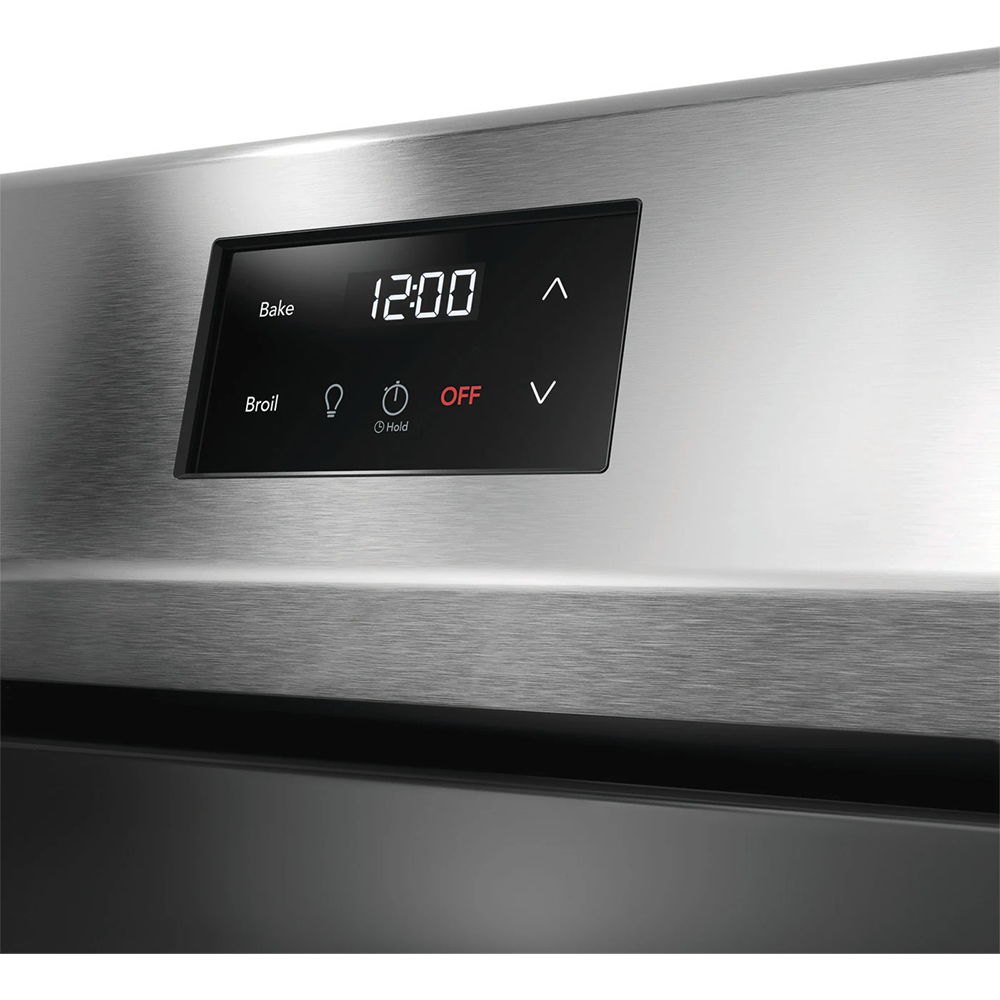

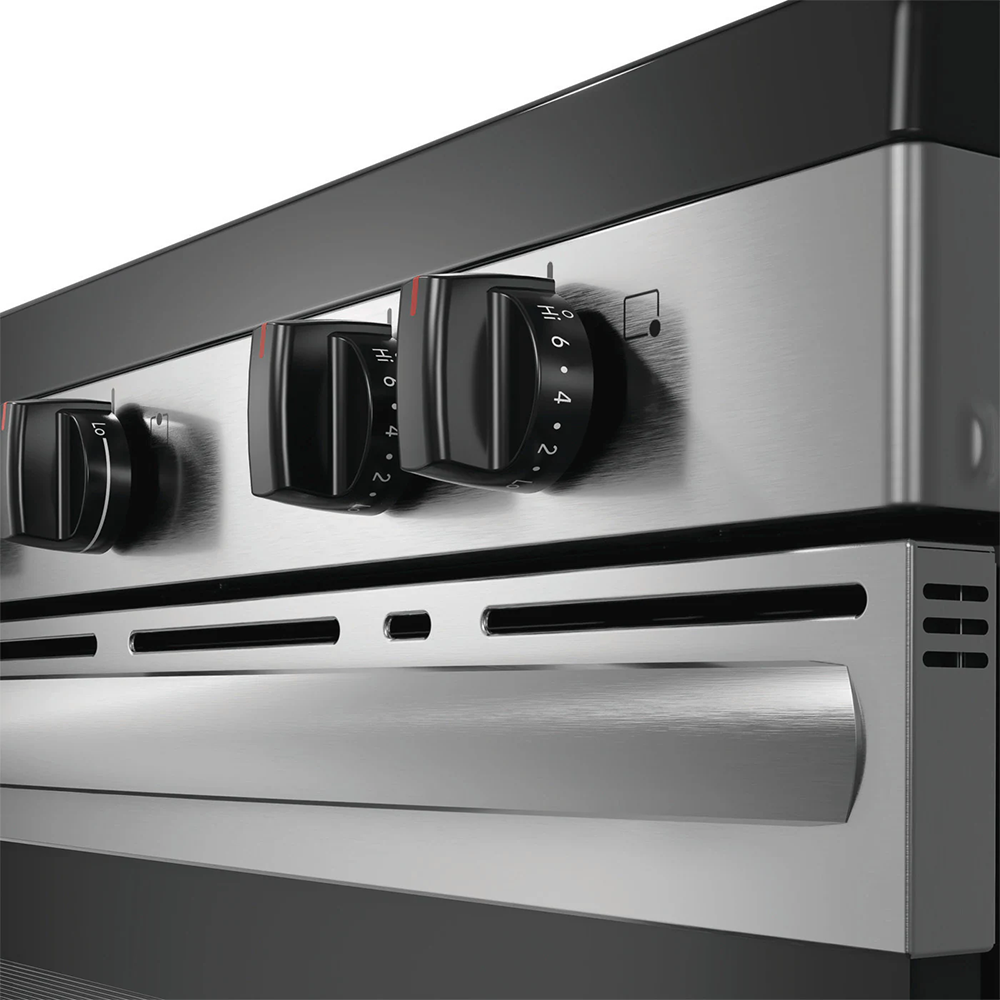

Cooking Controls
Bake - Yes
Broil - Yes
Kitchen Timer - Yes
Off - Yes
Oven Light - Yes
Preheat - Yes
Up / Down Arrow - Yes
Warm Zone - Yes

Cooking Controls Function
Program Fahrenheit or Celsius - Yes

Certifications and Approvals
RoHS - Yes
UL Listed - Yes

Cooktop
Cooking Surface Type - Smooth
Element On Indicator Light - Yes
Hot-Surface Indicator Light - Yes

Cooktop Performance
Right Front Element Burner Size - 9"
Right Rear Element Burner Size - 6"
Left Front Element Burner Size (Small) - 6"
Left Front Element Burner Size (Large) - 9"
Left Rear Element Burner Size - 6"
Right Front Element Burner - 3000 Watts
Right Rear Element Burner - 1200 Watts
Left Front Element Burner (Small) - 1400 Watts
Left Front Element Burner (Large) - 3000 Watts
Left Rear Element Burner - 1200 Watts
Center Rear Element Burner - 100 Watts
Keep Warm Burner Location - Center Rear

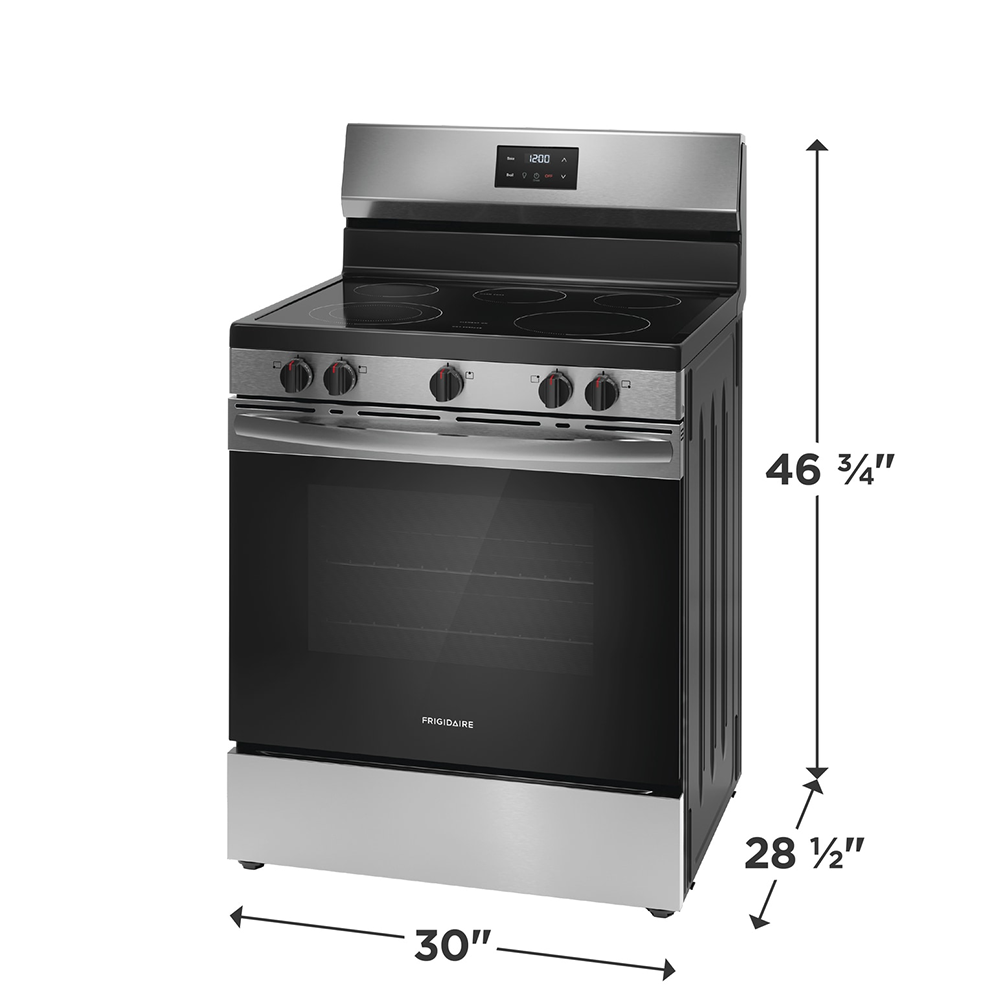

Dimensions and Volume
Minimum Height - 46 3/4"
Maximum Height - 47 3/4"
Width - 30"
Standard Width - 30"
Depth - 26"
Depth With Door 90° Open - 47 5/16"
Depth With Handle - 28 1/2"
Oven Interior Height - 18 1/8"
Oven Interior Width - 25 3/16"
Oven Interior Depth - 19 7/8"
Oven Capacity - 5.3 Cu. Ft.

Drawer
Drawer Handle Style - Integrated
Drawer Type - Storage

Electrical Specifications
Connected Load @ 240V - 12 kW
Minimum Circuit Required - 40 Amps
Voltage Rating - 240 V

Installation
Adjustable Leveling Legs - Yes

General Specifications
Frigidaire Fit Promise - Yes
Product Weight - 160 lbs
Prop 65 Label - Yes
Warranty - Labor - 1 Year
Warranty - Parts - 1 Year
AB-1200 - Information available at frigidaire.com/en/ab1200

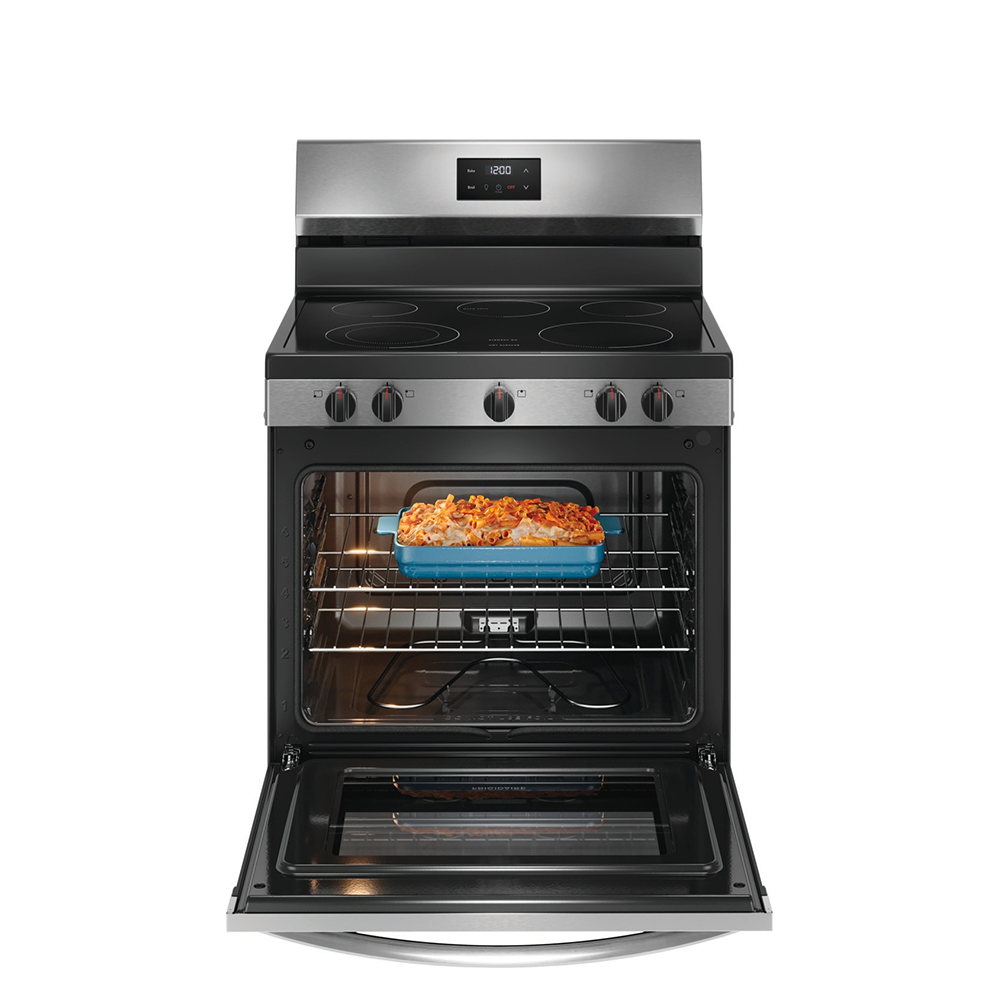

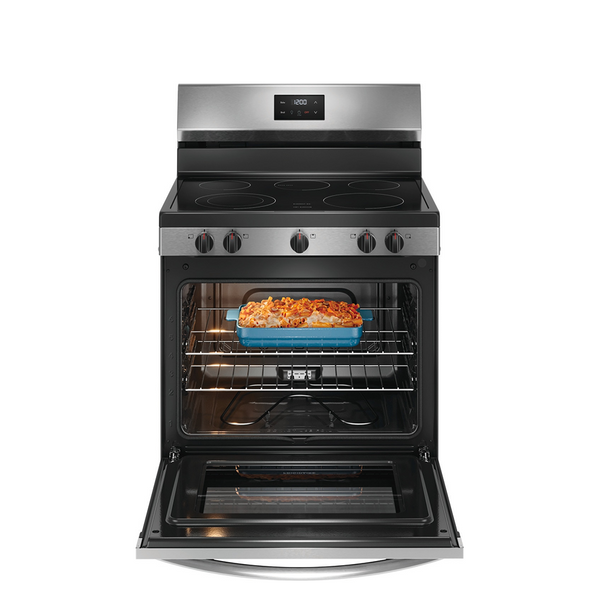

Oven
Bake Element - 2600 Watts
Bake Element Pass - 4
Bake Element Type - Raised
Broil Element - 3000 Watts
Broil Element Pass - 4
Number of Rack Positions - 6
Oven Interior Color - Midnight Black
Oven Light Quantity - 1
Oven Light Type - Halogen
Oven Light Watts - 40 Watts
Rack Position Type - Embossed
Rack Type 1 - Flat
Rack Type 1 Quantity - 2

Display
Display Interface Color - White
Display Type - LED
