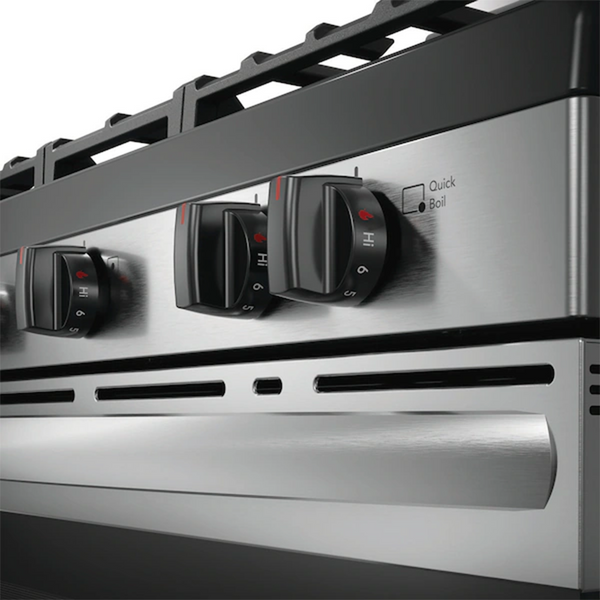

Quick Boil
Experience faster boil times and more powerful cooking with the 18,000 BTU Quick Boil burner.

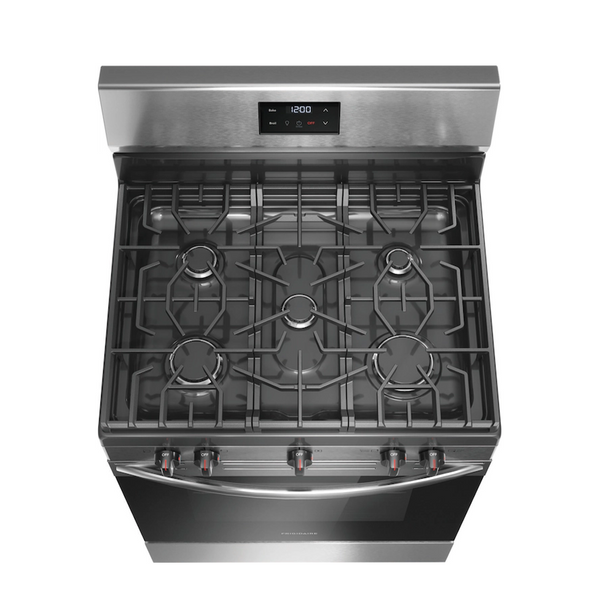

Five Burner Cooktop
Get the ultimate cooking flexibility with a cooktop that has five burners designed to handle all of your cooking needs.
Even Baking Technology
Designed to deliver even baking results, every time.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

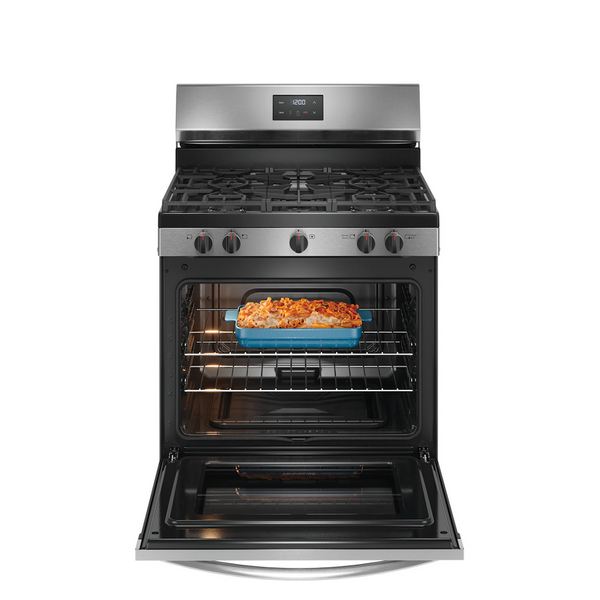

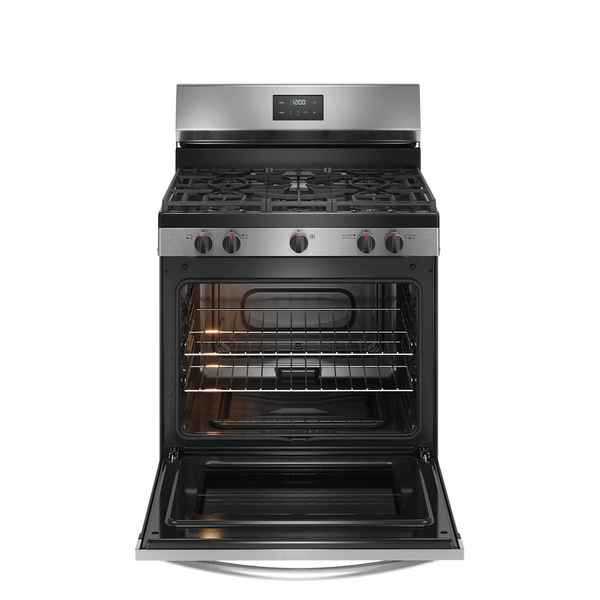

5.1 Cu. Ft. Oven Capacity
Large 5.1 cu. ft. oven capacity allows you to cook more at once.
Extra Wide Store-More™ Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Specifications

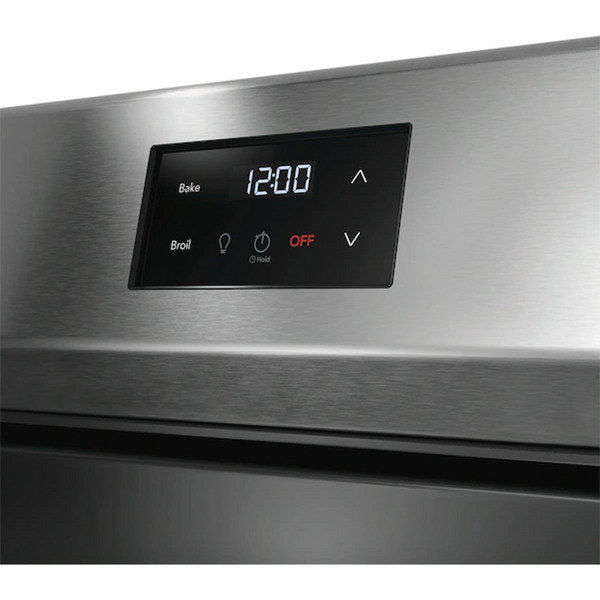

Cooking Controls
Bake - Yes
Broil - Yes
Clock - Yes
Off - Yes
Oven Light - Yes
Preheat - Yes
Timer On / Off - Yes
Up / Down Arrow - Yes
Cooking Controls Function
Program Fahrenheit or Celsius - Yes
Certifications and Approvals
CSA Listed - Yes
Cooktop
Cooking Surface Type - Gas
Grate Material - Cast Iron
Grate Quantity - 3
Grate Style - Continuous
Sealed Burners - Yes
Cooktop Performance
Right Front Element Burner - 18000 BTU
Right Rear Element Burner - 5000 BTU
Left Front Element Burner - 14000 BTU
Left Rear Element Burner - 10000 BTU
Center Element Burner - 10000 BTU
Dimensions and Volume
Height - 46 3/4"
Width - 30"
Depth - 28 1/2"
Minimum Height - 46 3/4"
Maximum Height - 47 3/4"
Width - 30"
Depth - 26"
Depth With Door 90° Open - 47 5/16"
Depth With Handle - 28 1/2"
Oven Interior Height - 17 5/8"
Oven Interior Width - 25 3/16"
Oven Interior Depth - 19 7/8"
Oven Capacity - 5.1 Cu. Ft.
Drawer
Drawer Handle Style - Integrated
Drawer Type - Storage
Electrical Specifications
Voltage Rating - 120 V
Installation
Adjustable Leveling Legs - Yes
Power Cord Included - Yes
General Specifications
Frigidaire Fit Promise - Yes
Product Weight - 160 lbs
Prop 65 Label - Yes
Warranty - Labor - 1 Year
Warranty - Parts - 1 Year
AB-1200 - Information available at frigidaire.com/en/ab1200
Oven
Bake Element - 17000 BTU
Broil Element - 1400 Watts
Broil Element Pass - 6
Number of Rack Positions - 6
Oven Interior Color - Midnight Black
Oven Light Quantity - 1
Oven Light Type - Halogen
Oven Light Watts - 40 Watts
Rack Position Type - Embossed
Rack Type 1 - Flat
Rack Type 1 Quantity - 2
Display
Display Interface Color - White
Display Type - LED

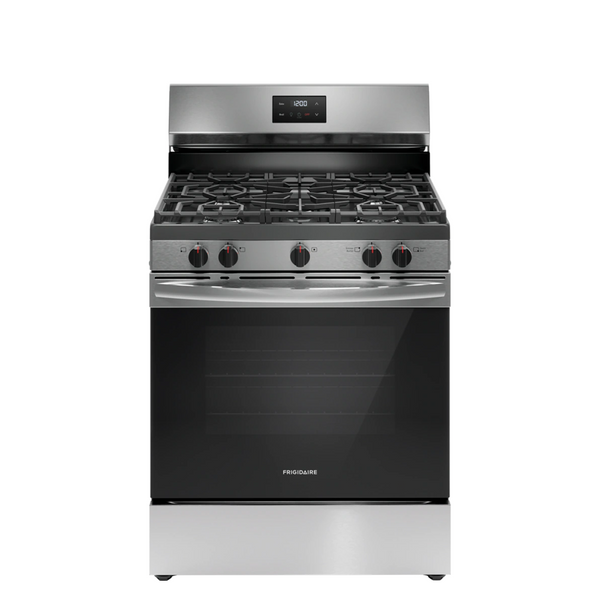

Frigidaire 30" 5 Burner Gas Range - Stainless Steel
$153,000 JMD $235,800 JMD
