Total Convection System

Get over 15 ways to cook - Total Convection powers cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Air Sous Vide, Bread Proof, Dehydrate and more!

No Preheat

Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to mealtime, in no time.

 Air Fry

Make healthier and delicious meals for your entire family - right in your oven.

 Slow Cook

With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.

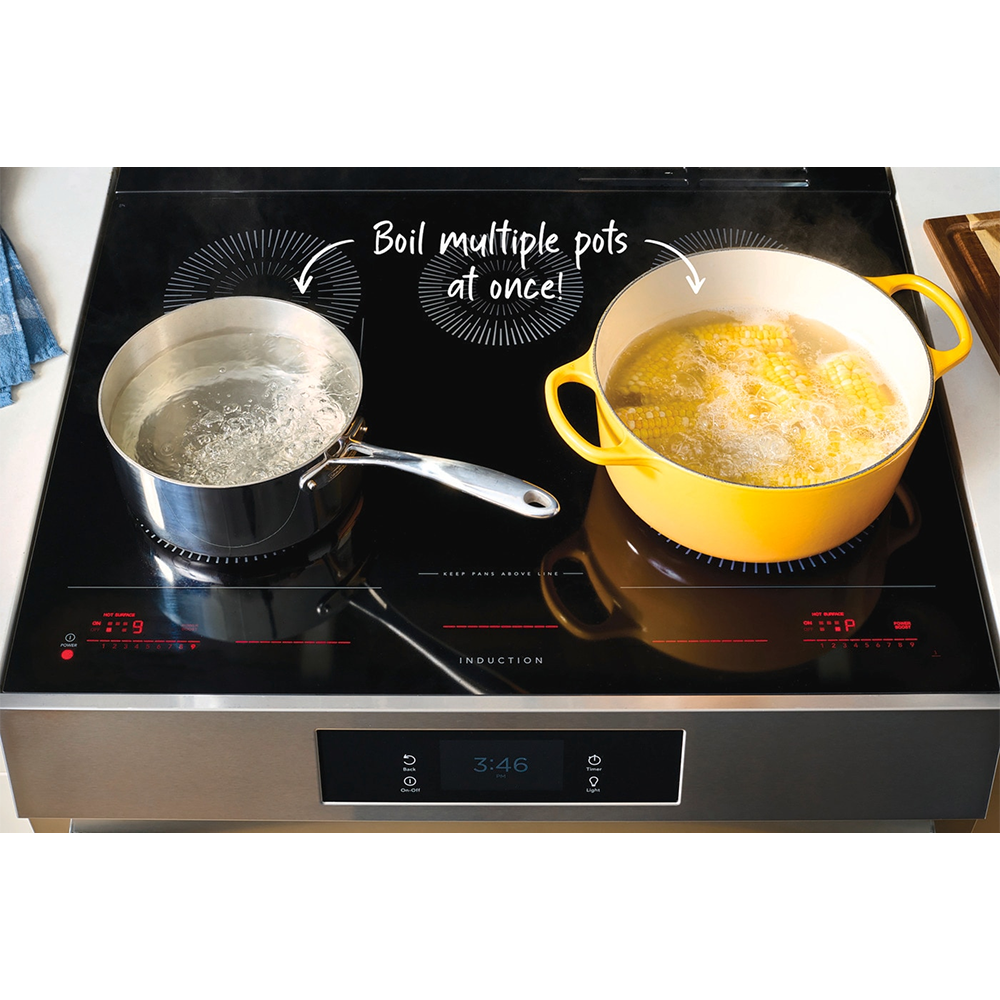

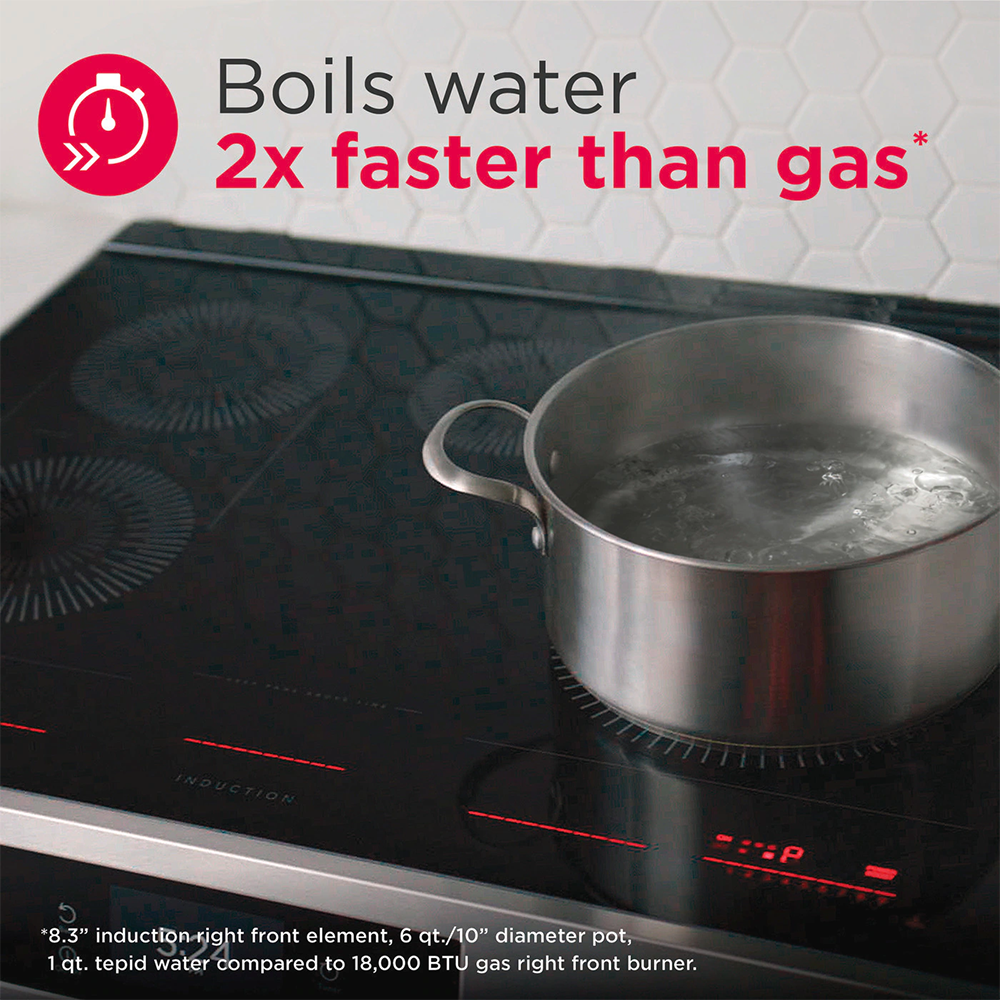

 Faster Boil Times

Heat transfers directly to the cookware bypassing the cooktop surface, making induction incredibly fast.

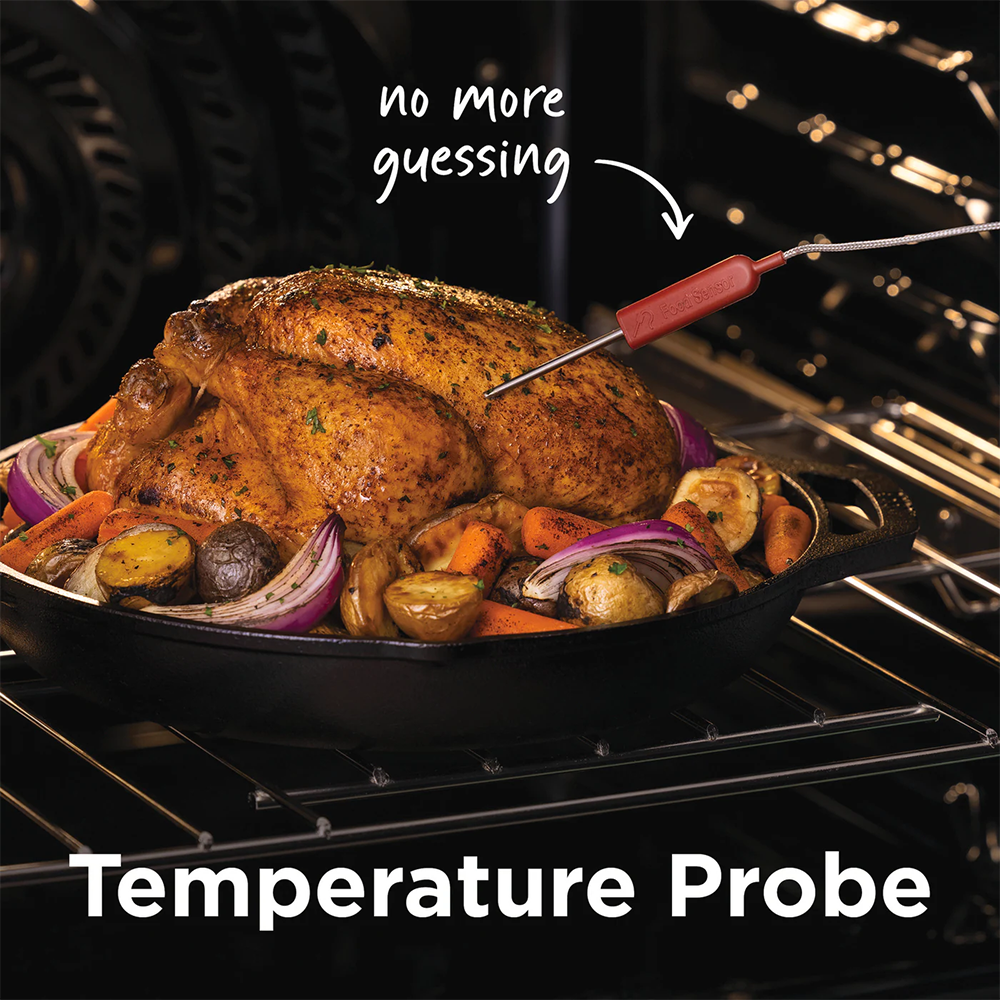

Temperature Probe

Monitors and alerts when the desired finished cooking temperature has been reached.

Steam Bake

With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.

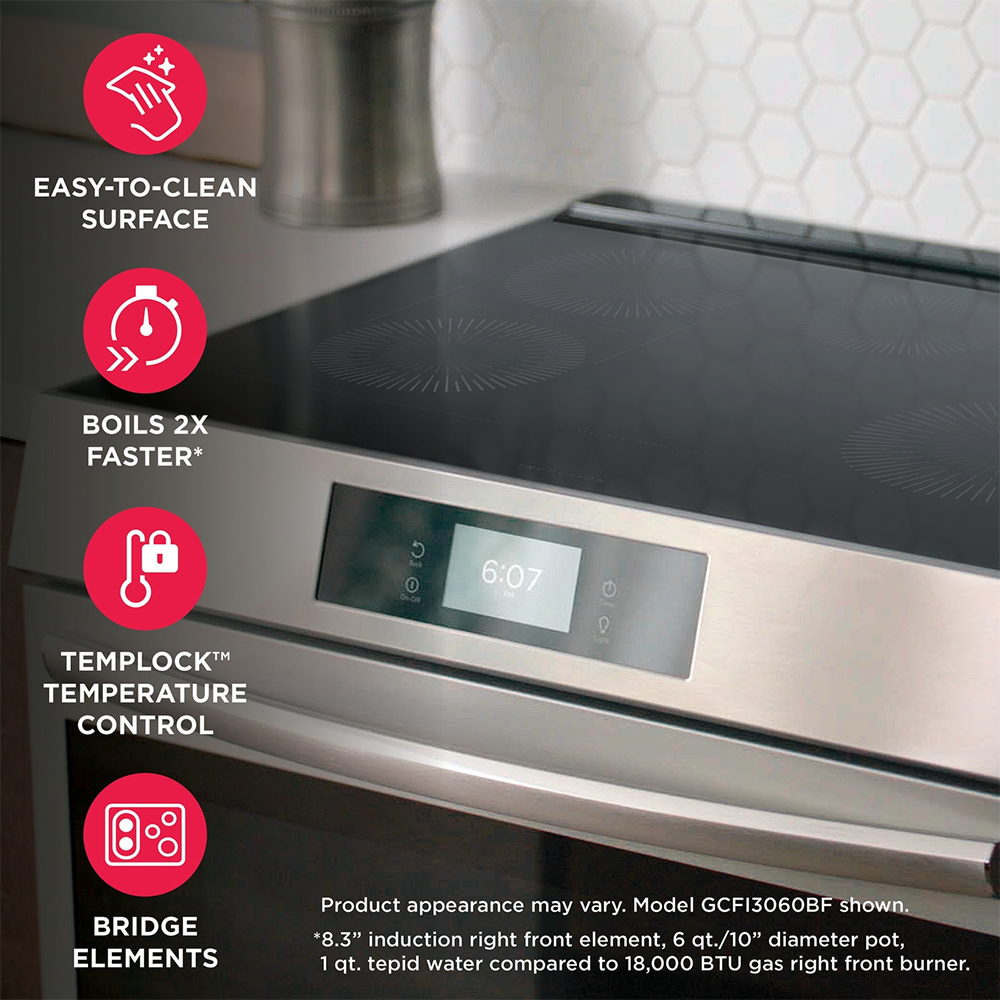

Consistent temperature with TempLock™

Sensors in the cooktop automatically adjust the power level to maintain a consistent temperature the entire time you cook. It's like cruise control for your cooktop.

Self and Steam Clean Cycles

Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2-, 3- and 4-hour cycles.

Steam Roast

Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

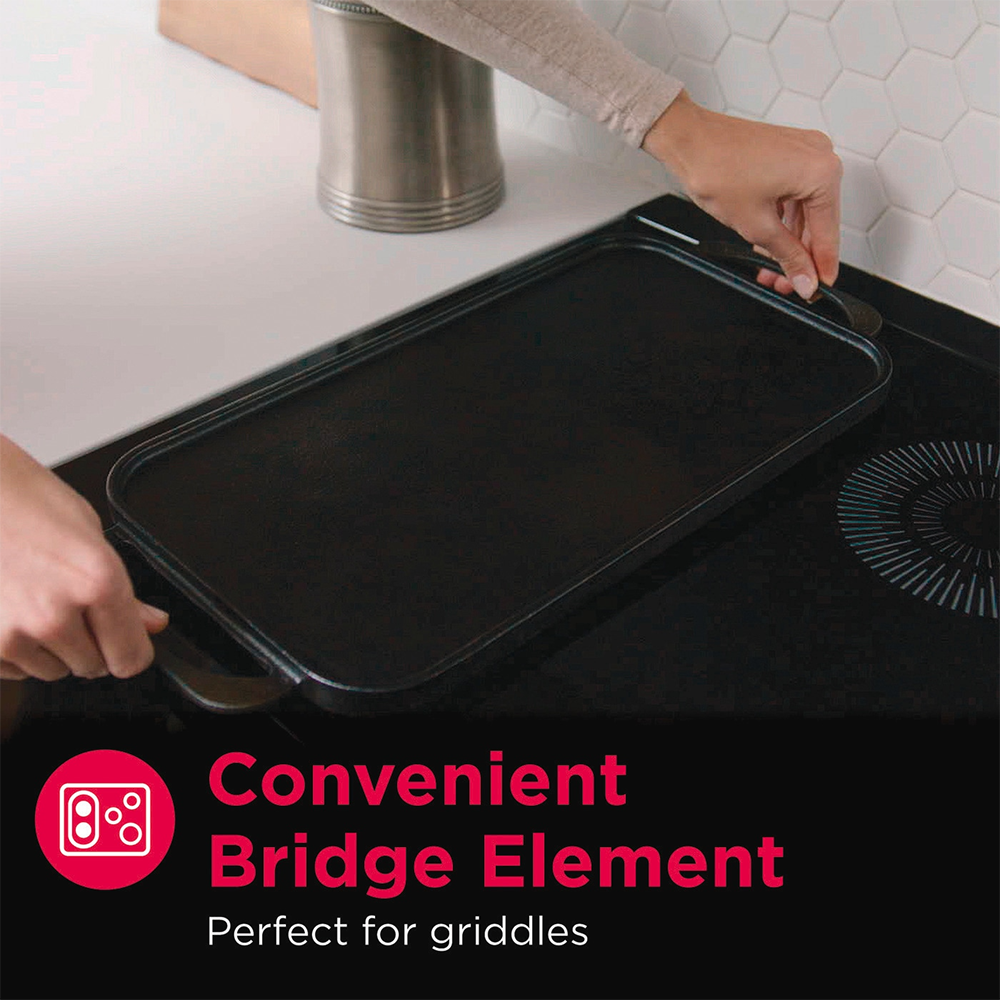

Bridge Element

Connects two elements to allow for simultaneous control, perfect for a griddle pan.

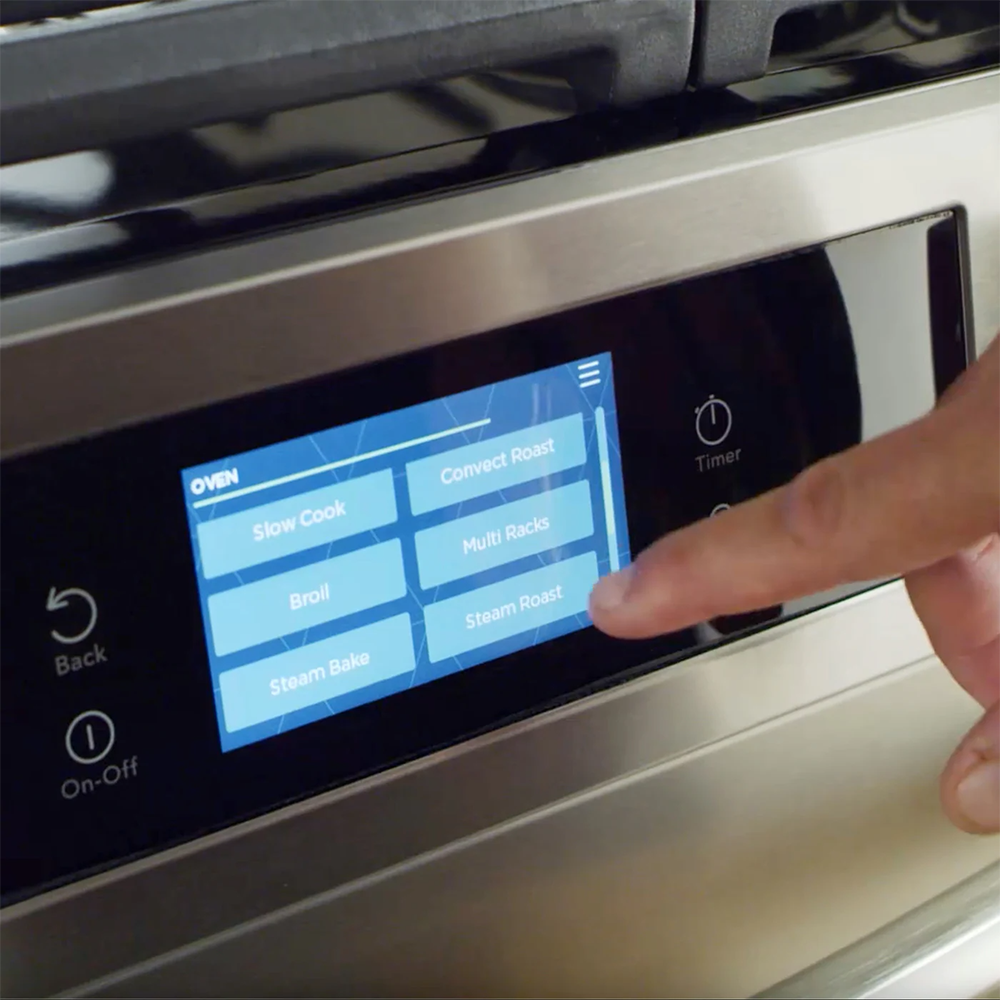

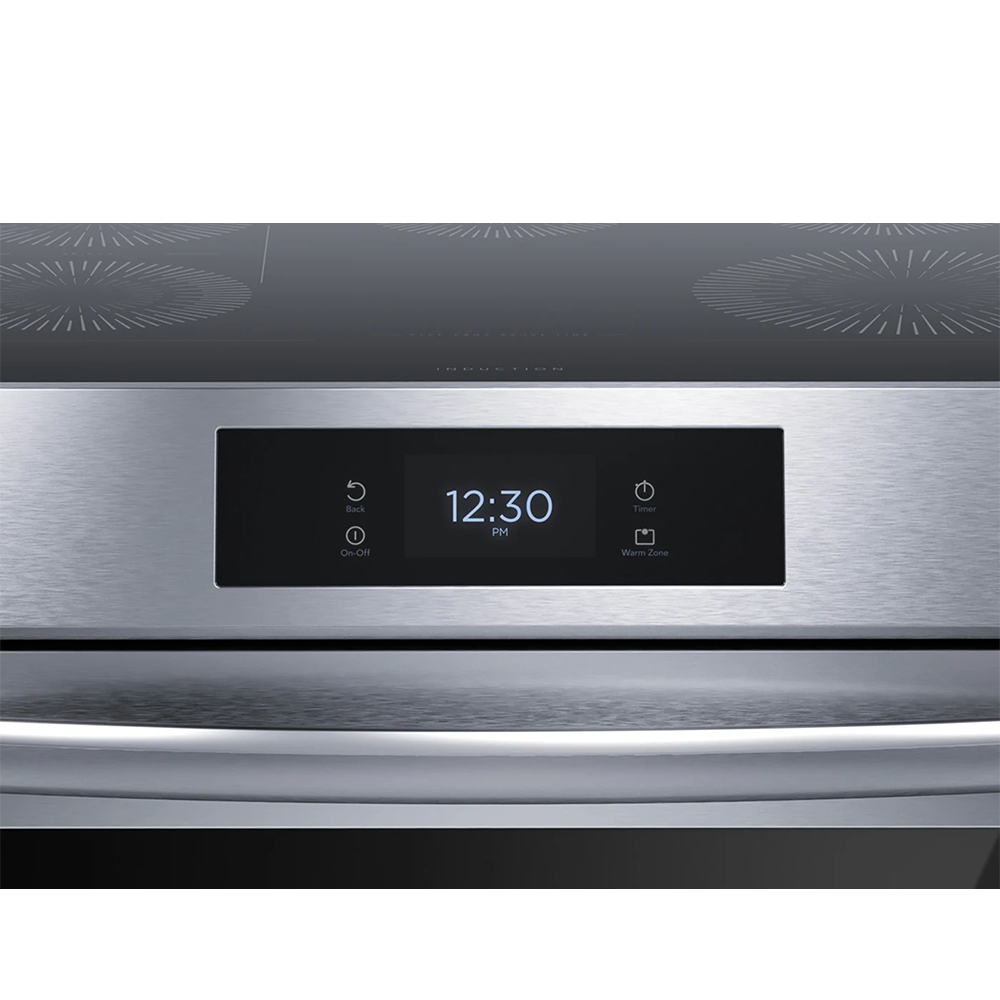

Premium Touch Screen Control Panel

Features a responsive 4.3-inch, full color, capacitive touch digital control panel.

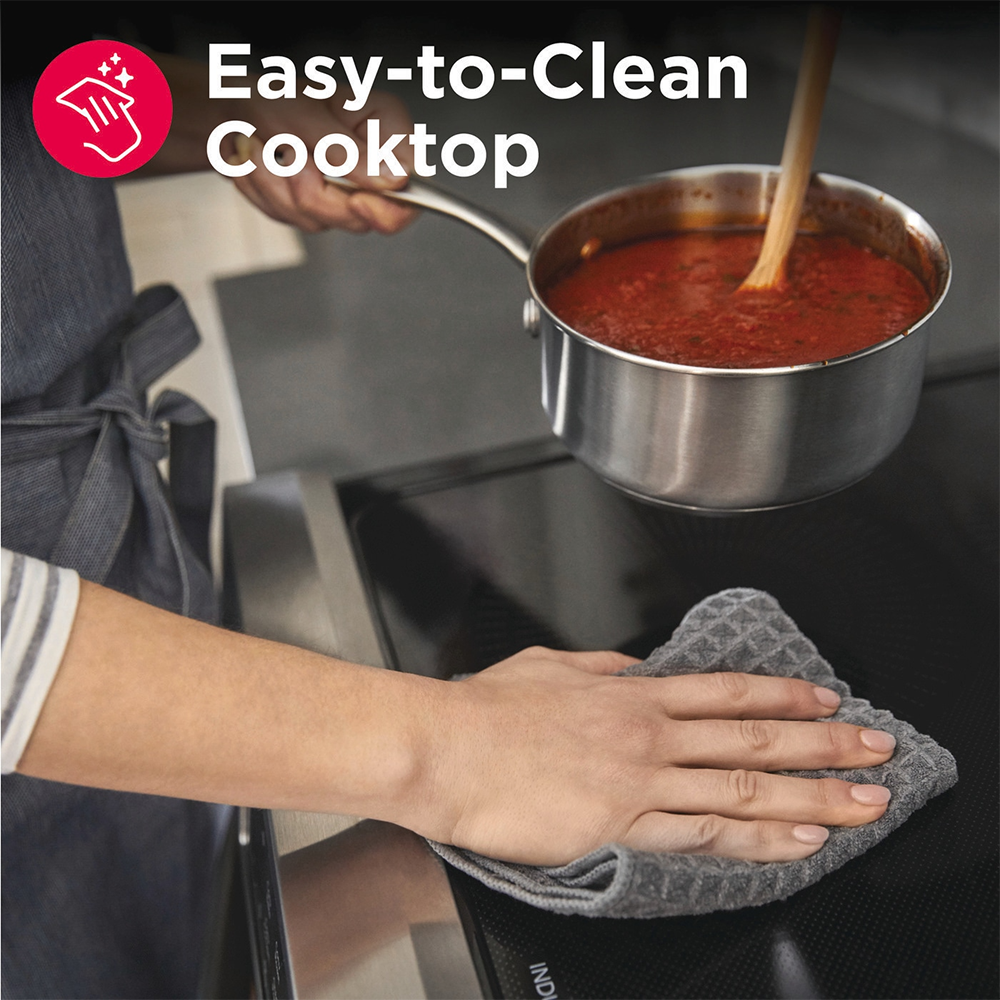

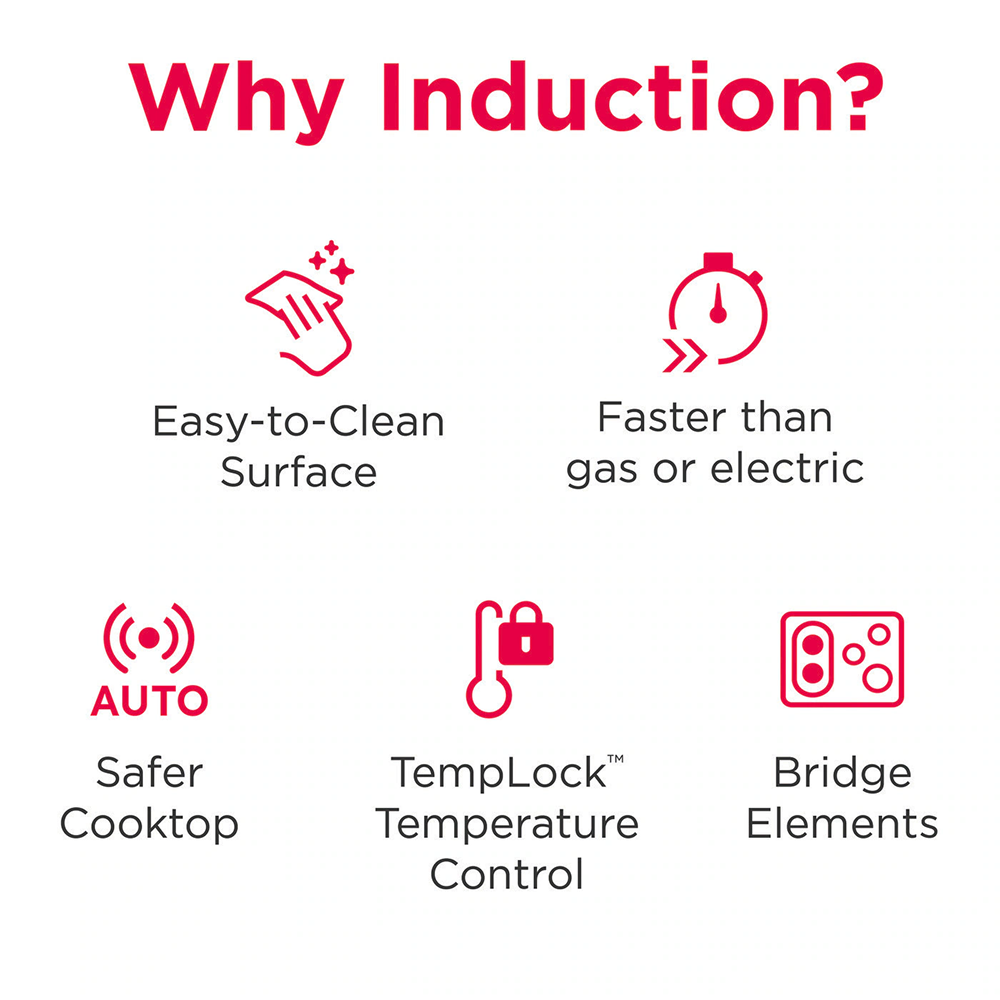

Safer Cooktop Surface

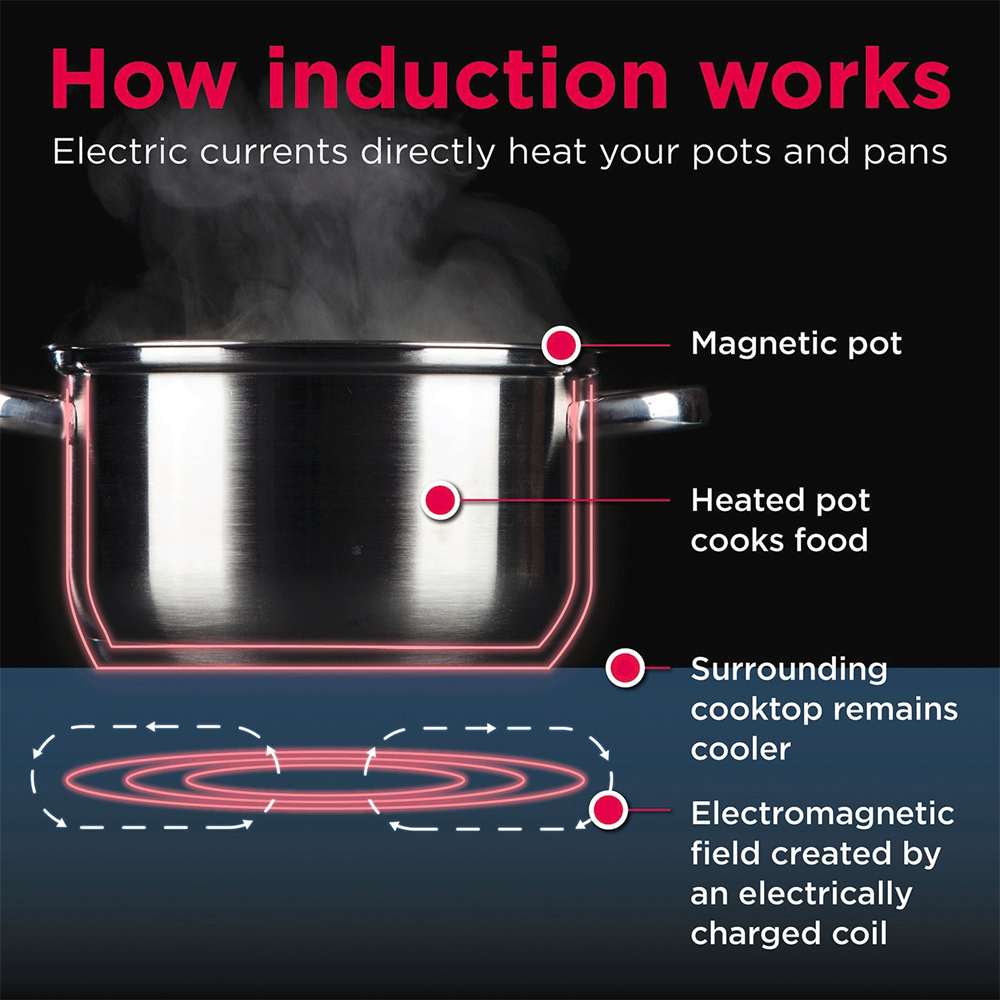

Induction heats the pan and the food in it, so the area around the pan stays cooler.

Extra Wide Store-More™ Storage Drawer

Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

Air Sous Vide

Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.

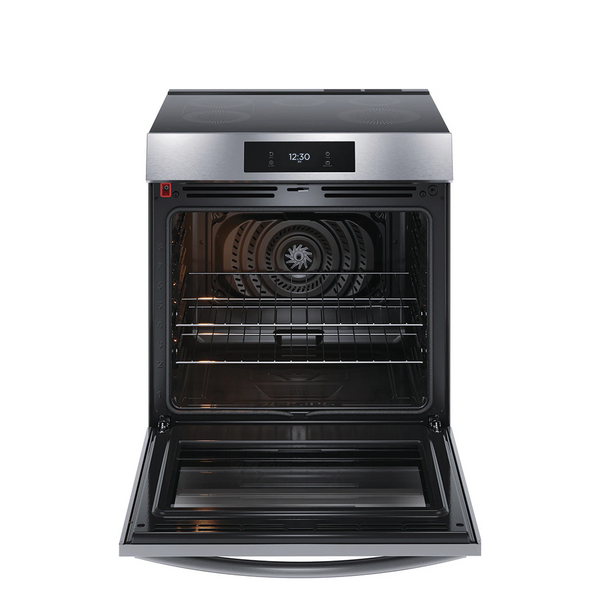

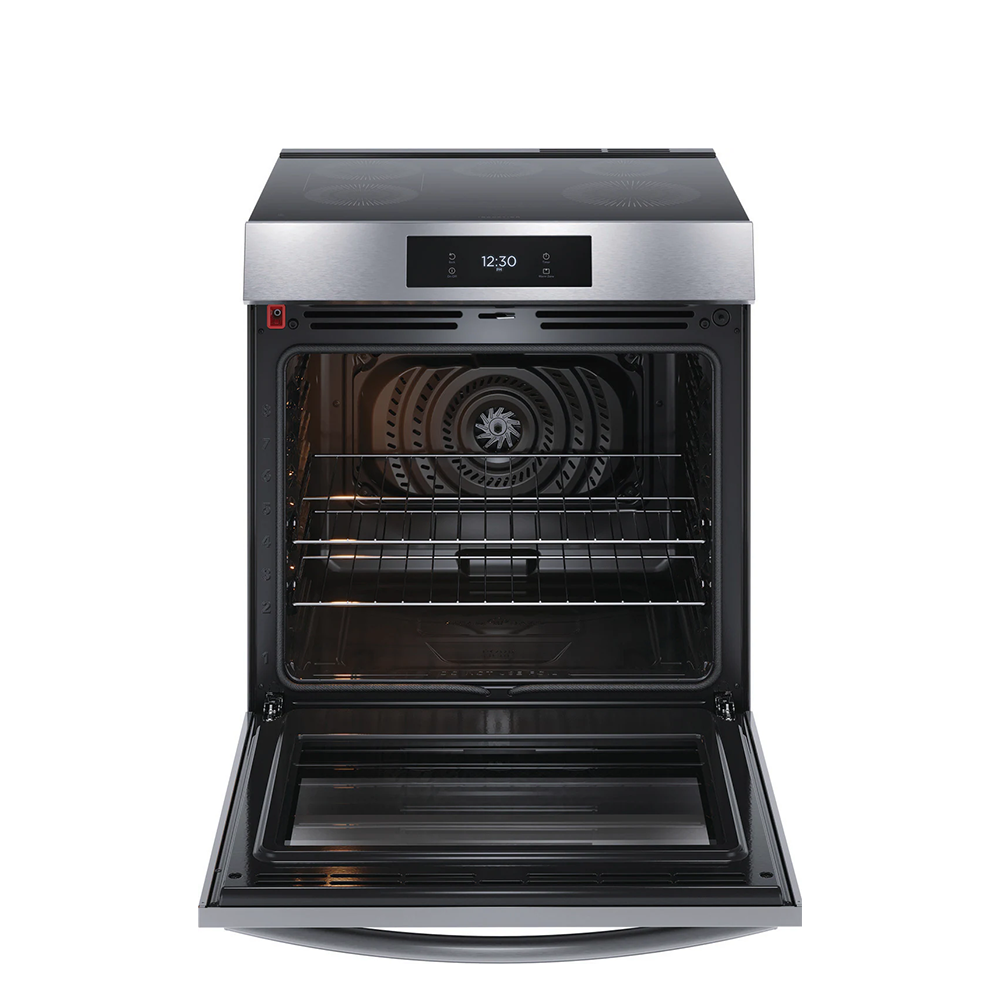

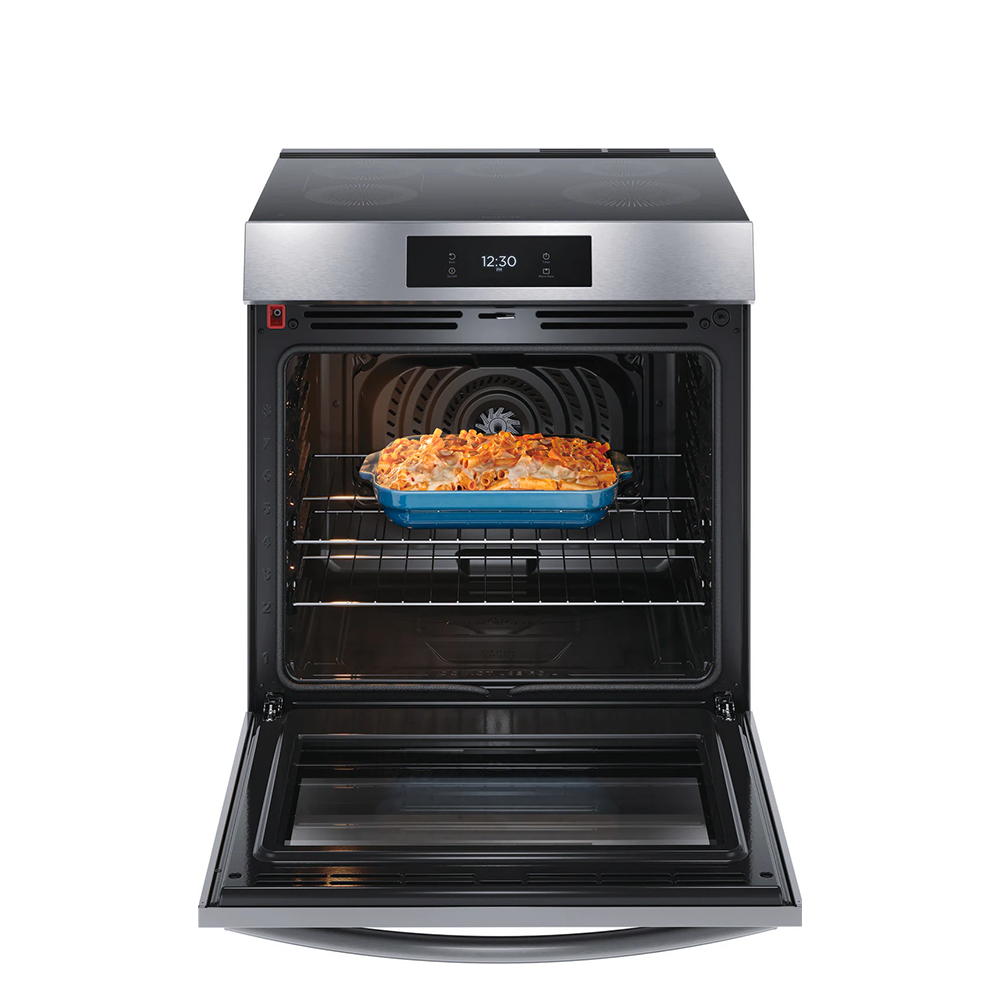

Extra Large Oven Capacity

Cook more at once with our extra large, 6.2 cu.ft. capacity oven.

Smudge-Proof® Stainless Steel

Resists fingerprints and cleans easily.

Controls
Control Lock - Yes
Sabbath Mode - Yes

Cooking Controls
Air Fry - Yes
Air Sous Vide - Yes
Bake - Yes
Bake Time - Yes
Bread Proof - Yes
Broil - Yes
Child Lock - Yes
Clock - Yes
Convection Bake - Yes
Convection Roast - Yes
Cook Time - Yes
Cooktop Lockout - Yes
Dehydrate - Yes
Delay Clean - Yes
Delay Start - Yes
Door Lock - Yes
Hot Surface - Yes
Keep Warm - Yes
Kitchen Timer - Yes
Light - Yes
Lockout - Yes
No Preheat - Yes
Oven Light - Yes
Oven Lock - Yes
Perfect Turkey - Yes
Preheat - Yes
Probe - Yes
Self Clean - Yes
Set Clock - Yes
Slow Cook - Yes
Start - Yes
Steam Bake - Yes
Steam Clean - Yes
Steam Roast - Yes
Temperature Display - Yes
Timed Bake - Yes
Timer On / Off - Yes
User Preferences - Yes

Cooking Controls Function
Delayed Bake - Yes
Program Fahrenheit or Celsius - Yes
Silent Control Panel - Yes
Timed Cooking - Yes

Safety Certifications and Approvals
ADA Compliant - Yes
RoHS - Yes
Star-K Certification - Yes
UL Listed - Yes

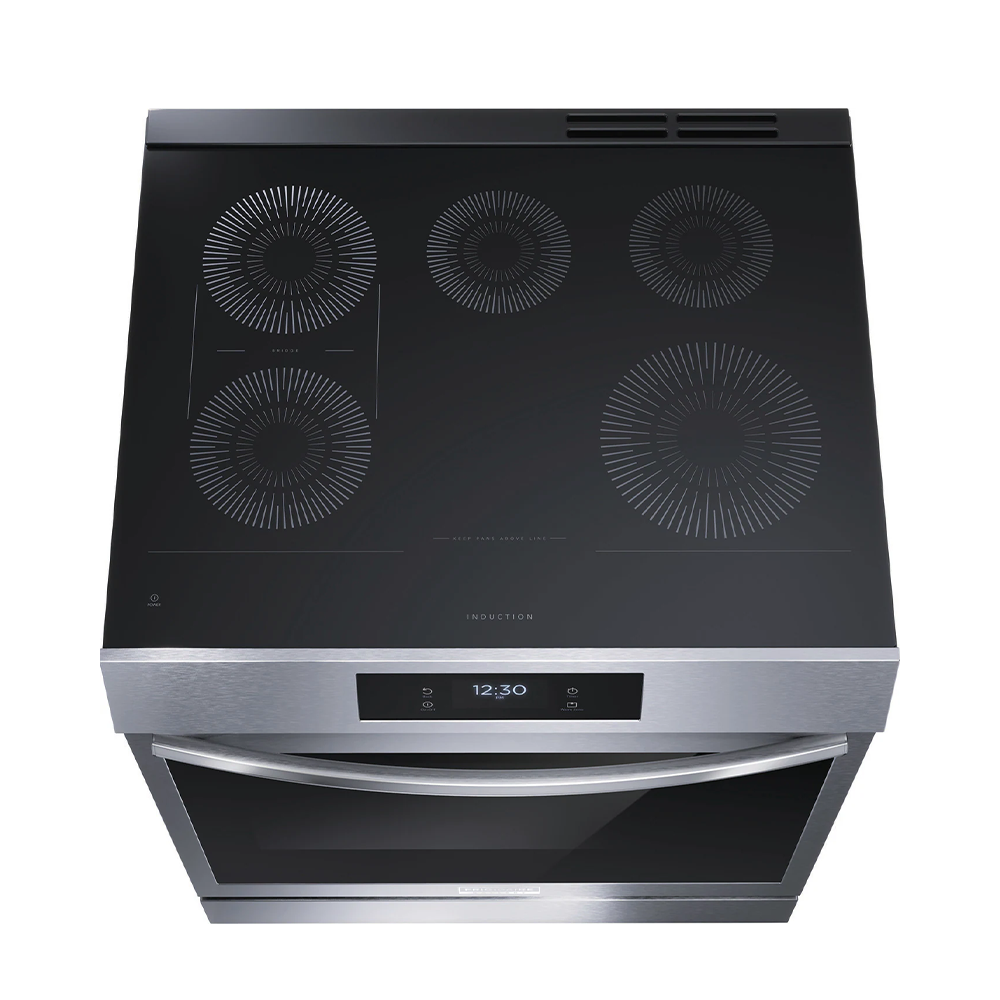

Cooktop
Auto Pan Detect - Yes
Cooking Surface Type - Smooth
Element On Indicator Light - Yes
Hot-Surface Indicator Light - Yes

Cooktop Performance
Right Front Element Burner Size - 8 3/10"
Right Rear Element Burner Size - 5 1/2"
Left Front Element Burner Size - 7"
Left Rear Element Burner Size - 7"
Center Rear Element Burner Size - 5 1/2"

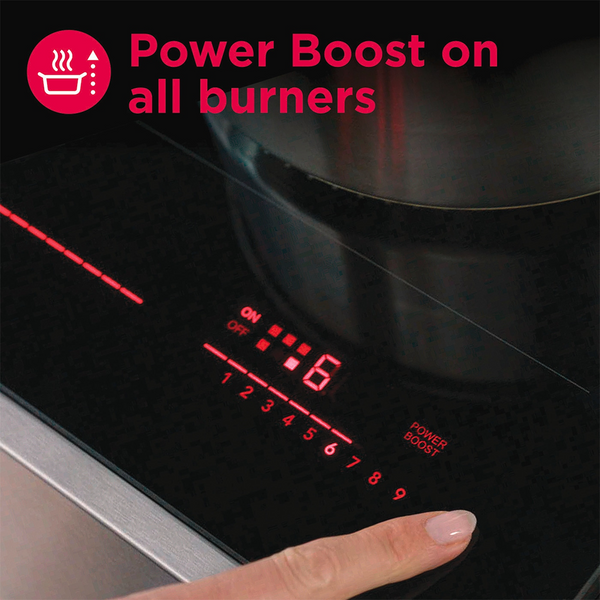

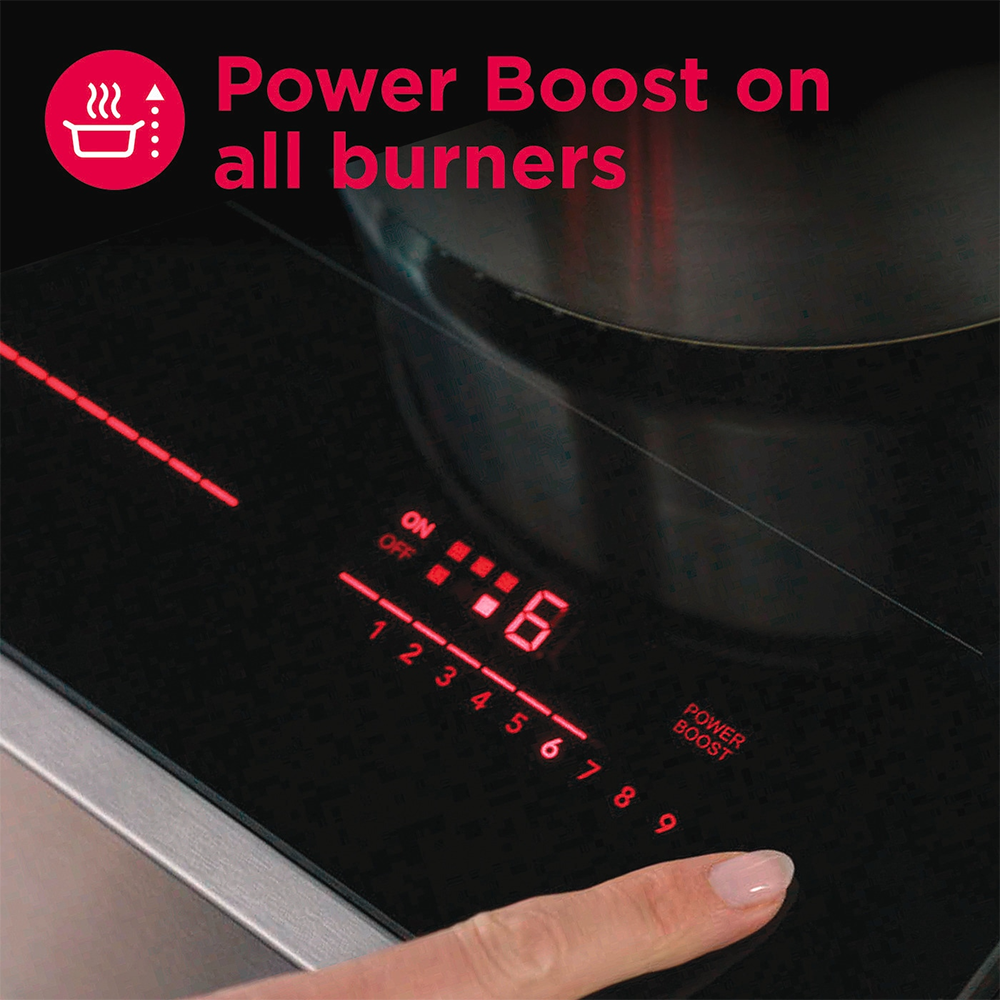

Right Front Element Burner - 2,300 / 3,600 Watts (Boost)
Right Rear Element Burner - 1,400 / 2,500 Watts (Boost)
Left Front Element Burner - 1,800 / 2,800 Watts (Boost)
Left Rear Element Burner - 1,800 / 2,800 Watts (Boost)
Center Element Burner - 1,400 / 2,500 Watts (Boost)

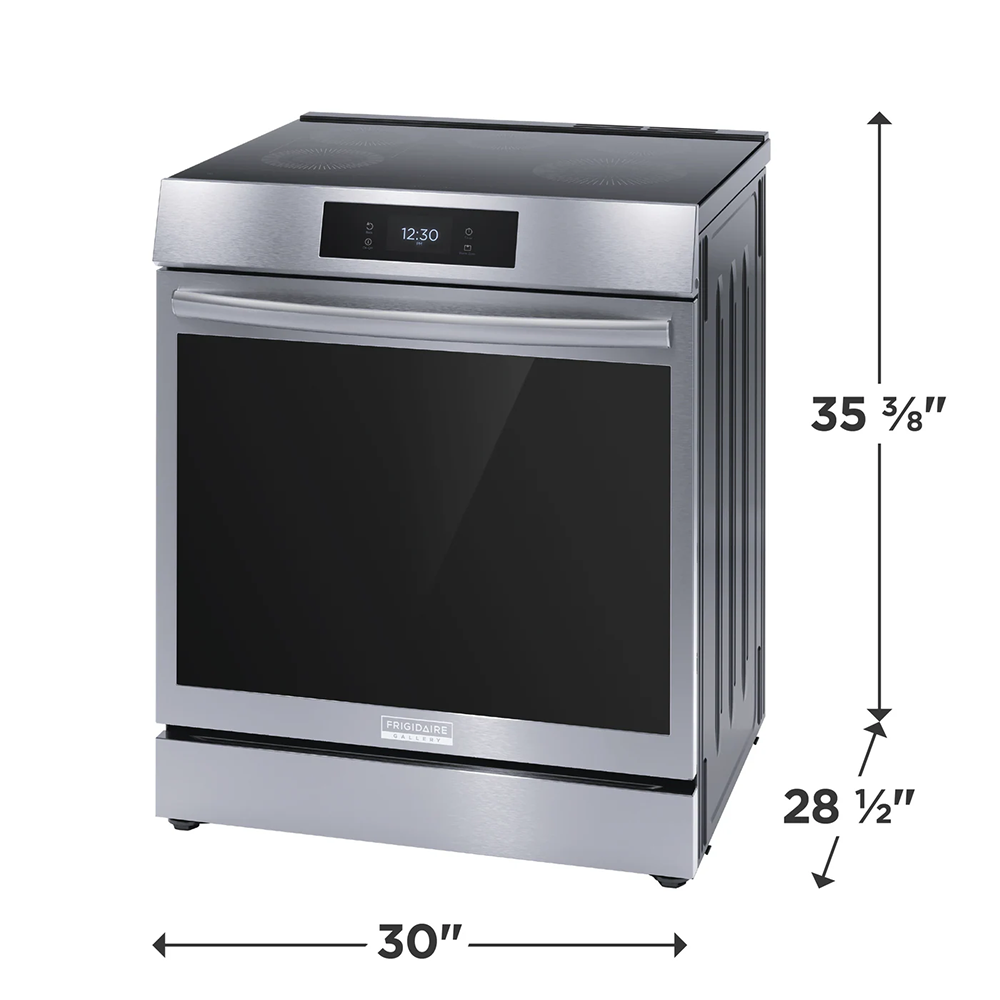

Dimensions and Volume
Minimum Height - 35 3/8"
Maximum Height - 36 3/8"
Width - 30"
Standard Width - 30"
Depth - 26"
Depth With Door 90° Open - 47 5/16"
Depth With Handle - 28 1/2"
Oven Interior Height - 21 1/4"
Oven Interior Width - 25 3/16"
Oven Interior Depth - 19 7/8"
Oven Capacity - 6.2 Cu. Ft.

Drawer
Drawer Handle Style - Integrated
Drawer Type - Storage

Electrical Specifications
Connected Load @ 240V - 15 kW
Minimum Circuit Required - 40 Amps
Voltage Rating - 240 V

Installation
Adjustable Leveling Legs - Yes

Exterior
Exterior Finish - Smudge-Proof® Stainless Steel

General Specifications
Product Weight - 178 lbs
Prop 65 Label - Yes
Warranty - Labor - 1 Year
Warranty - Parts - 1 Year
AB-1200 - Information available at frigidaire.com/en/ab1200

Oven
Bake Element - 2500 Watts
Bake Element Pass - 8
Bake Element Type - Hidden
Broil Element - 4000 Watts
Broil Element Pass - 6
Cleaning System - Yes
Convection - Yes
Convection Element - 3800 Watts
Convection Type - Total
Number of Convection Fans - 1
Number of Rack Positions - 8
Oven Interior Color - Midnight Black
Oven Light Quantity - 1
Oven Light Type - Halogen
Oven Light Watts - 40 Watts
Rack Position Type - Embossed
Rack Type 1 - Flat
Rack Type 1 Quantity - 2

Display
Cooktop Control Location - Top
Display Light Color - White
Cooktop Light Color - Red
Display Type - Capacitive Touch
