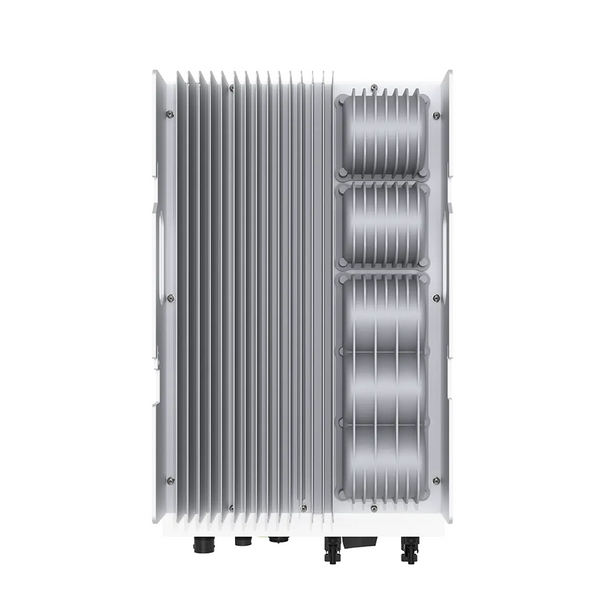

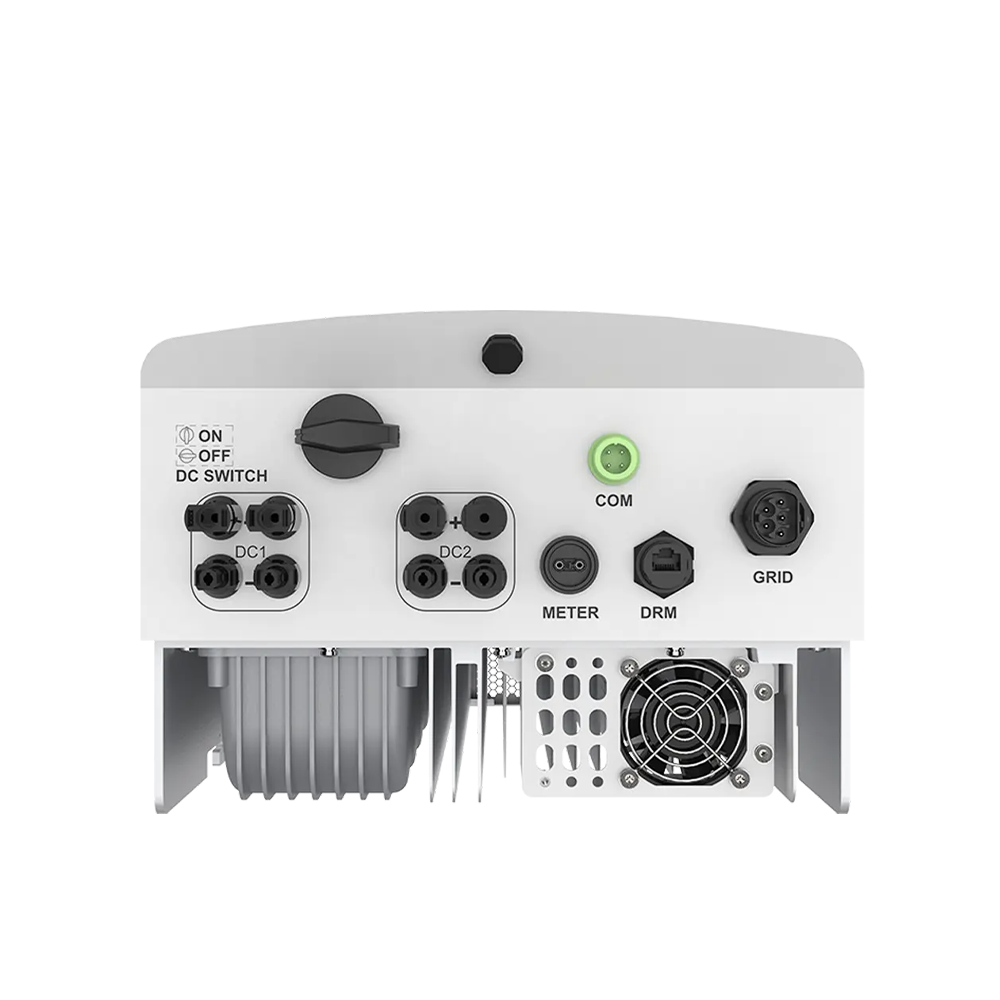

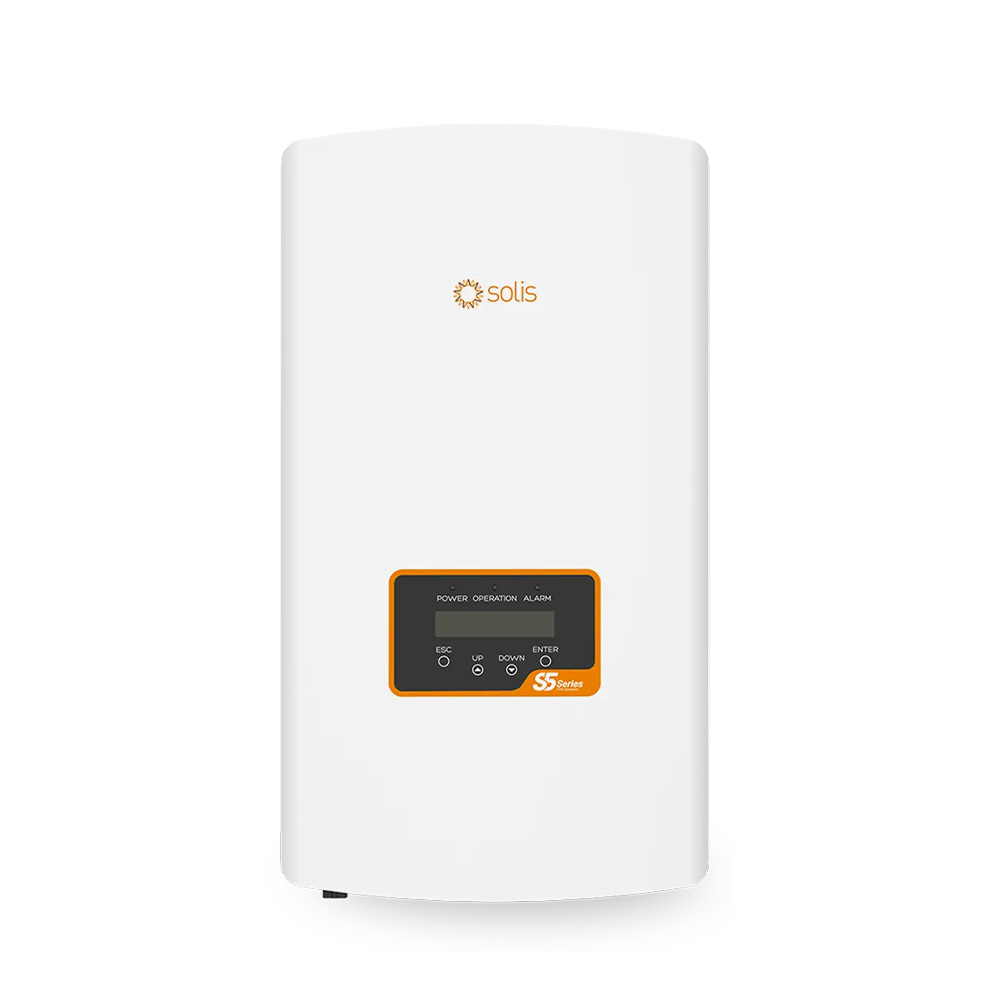

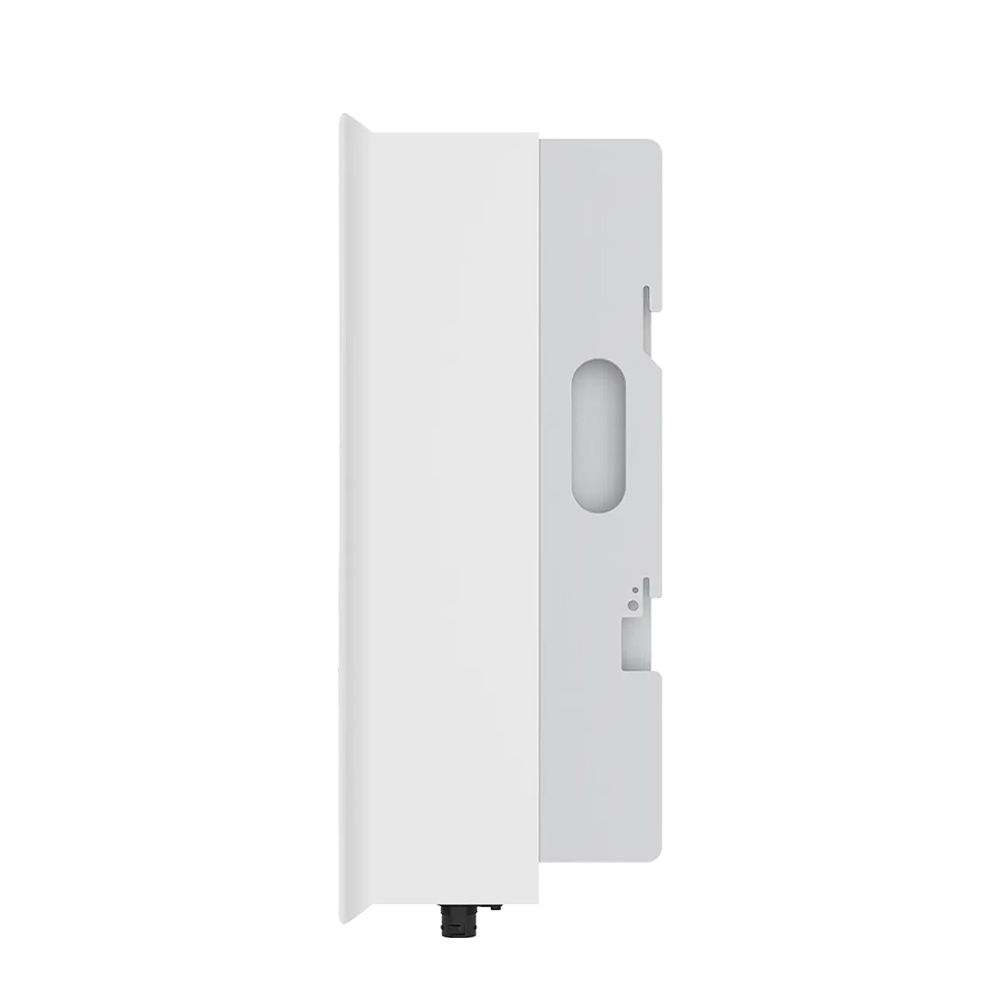

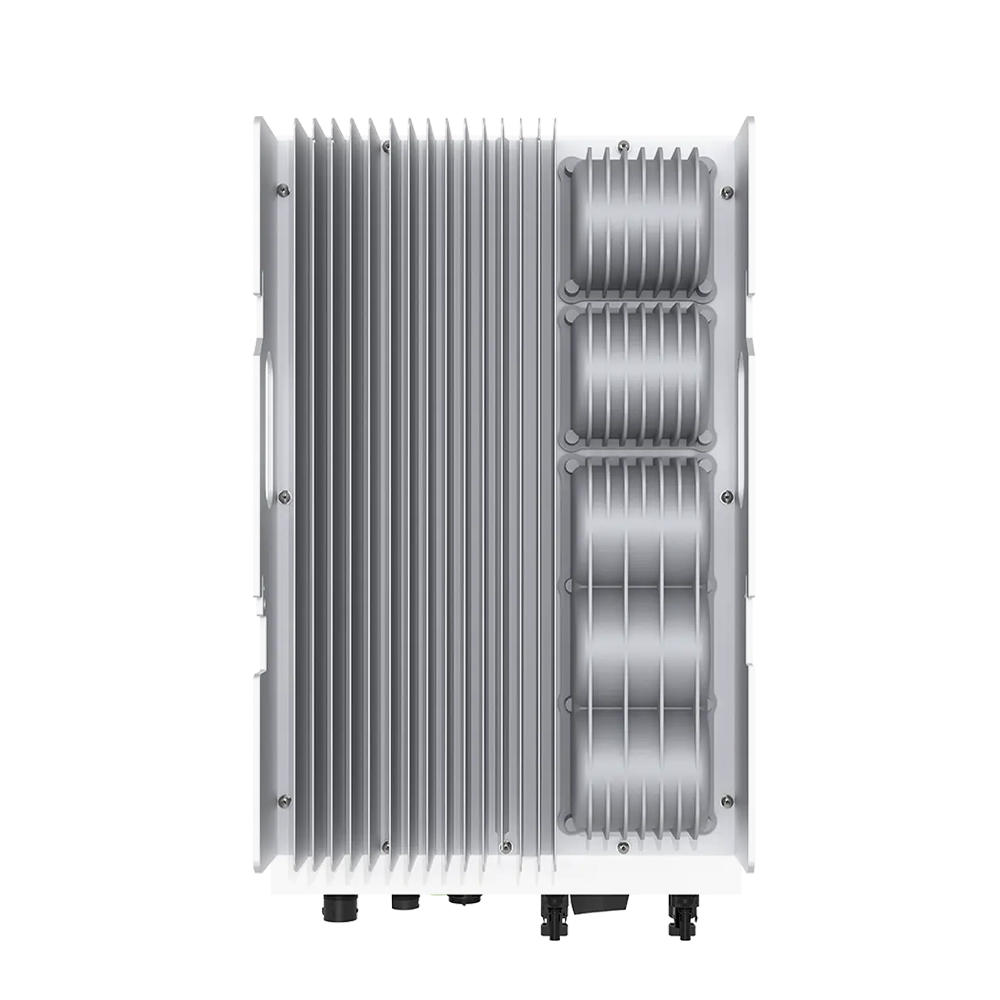

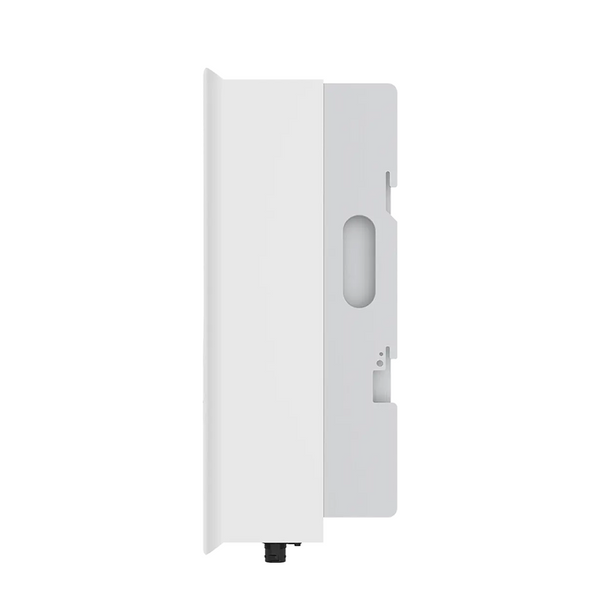

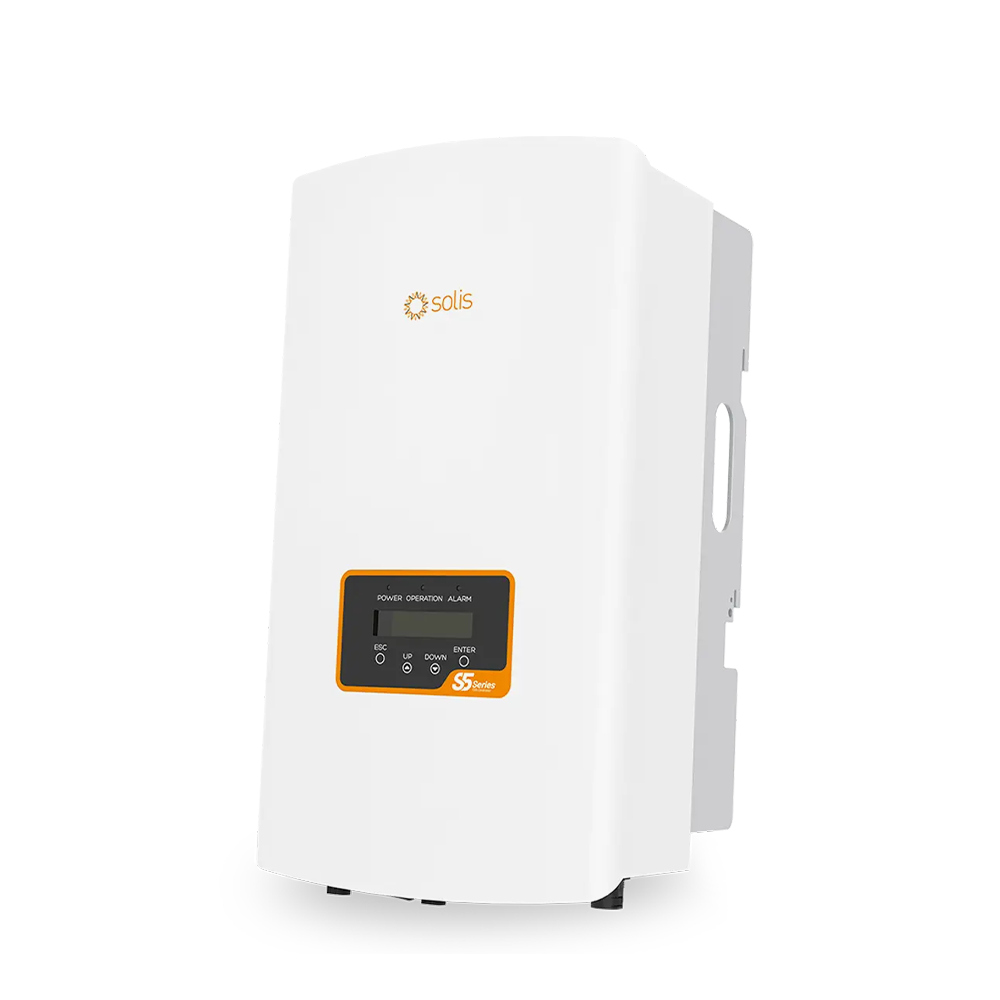

Model#: S5-GR3P10K-LV
PV Input parameter

• Max Input Voltage   -   1100V
• Max PV Power   -   15kW
• Rated Voltage   -   330 V
• MPPT Voltage Range -    160 - 500 V
• MPPT - 2
• Max Short Circuit Current  -    2 × 40 A


 AC Output

• Rated Output Power   -   10kW
• Max Output Power  -     11 kW
• Nominal output frequency   -   50/60Hz
• Max Output Current   -  28.8 A


System

• Ingress Protection   -   IP66
• Dimensions(W*D*H)   -        310 × 563 × 219 mm
• Weight   -     21.1 kg
• Max. Efficiency   -    98.0%
• Operating Ambient Temperature Range   -   -25 ~ +60°C
• Relative Humidity   -    0 - 100%
• Cooling Concept    -     Intelligent Fan-Cooling
• Communication    -     RS485, Optional: Wi-Fi, GPRS
