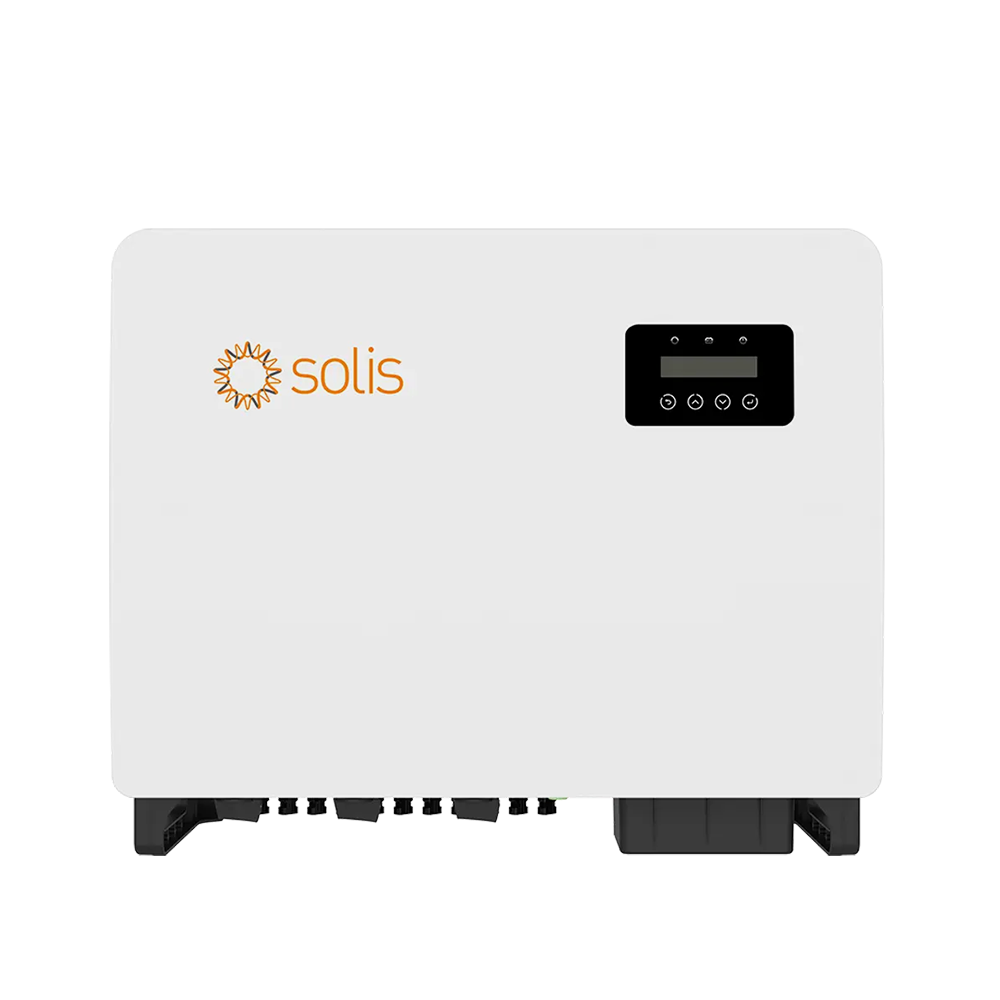

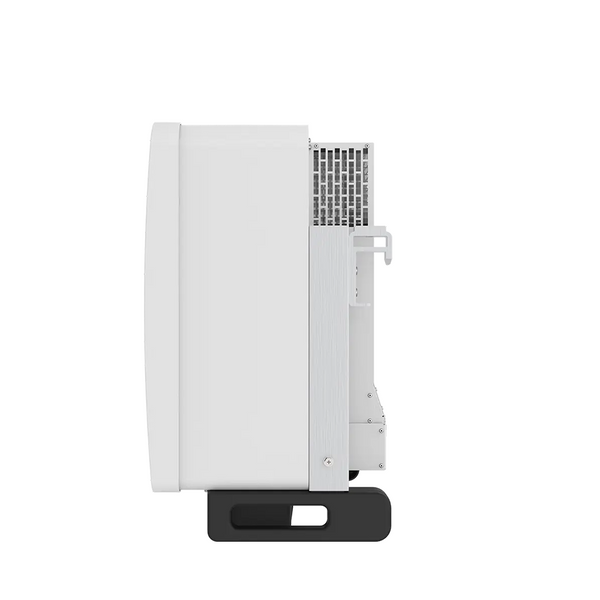

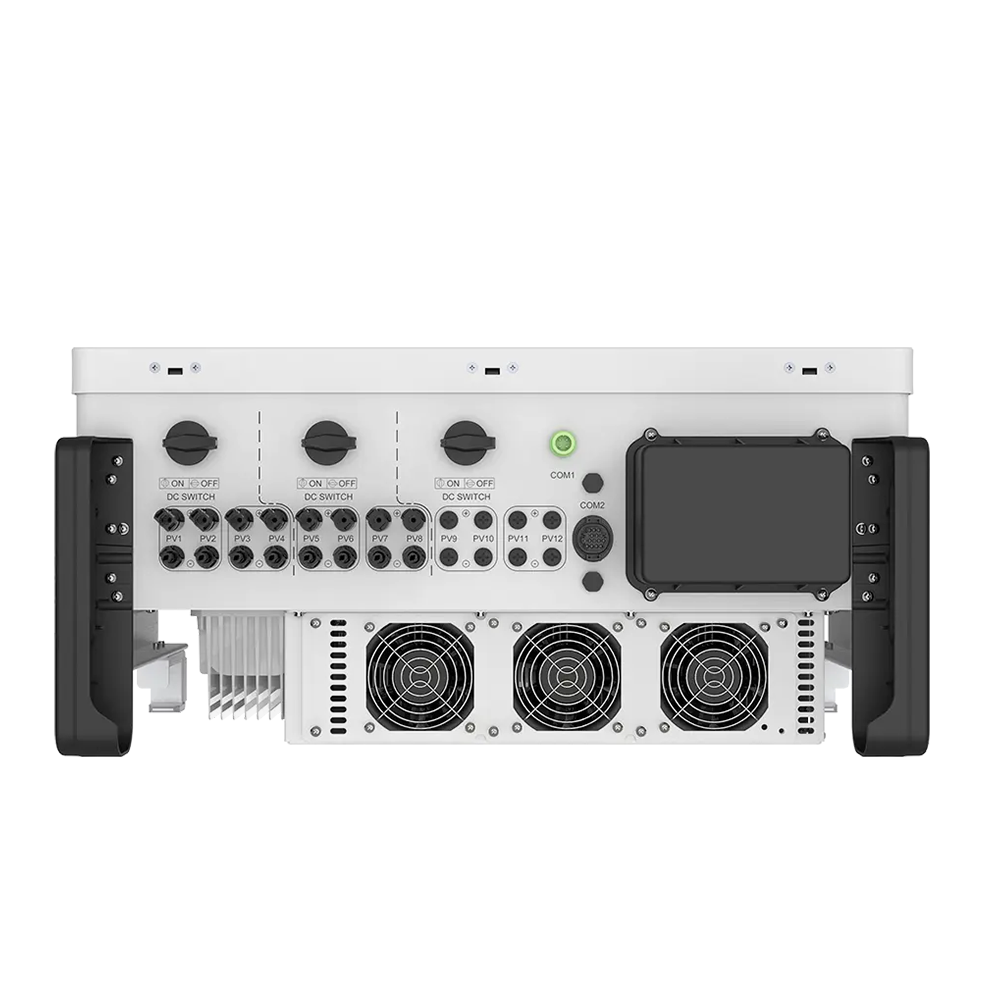

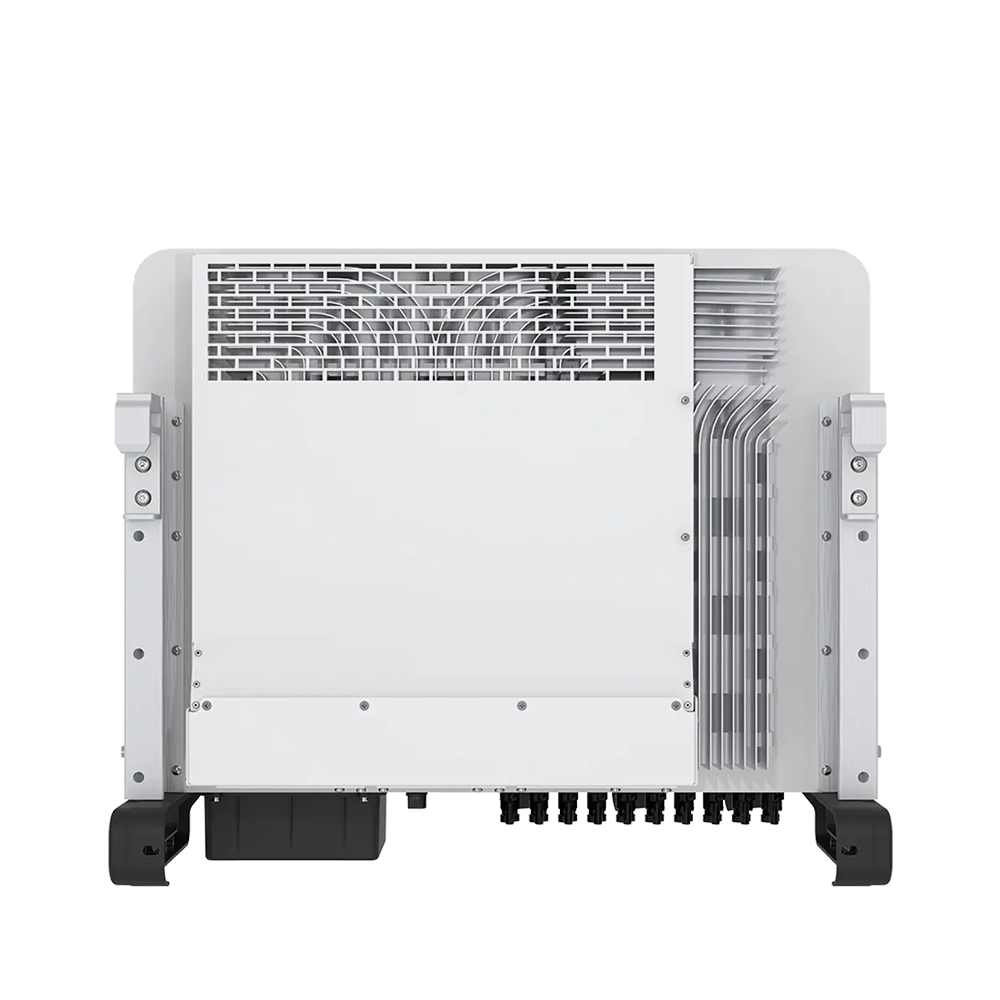

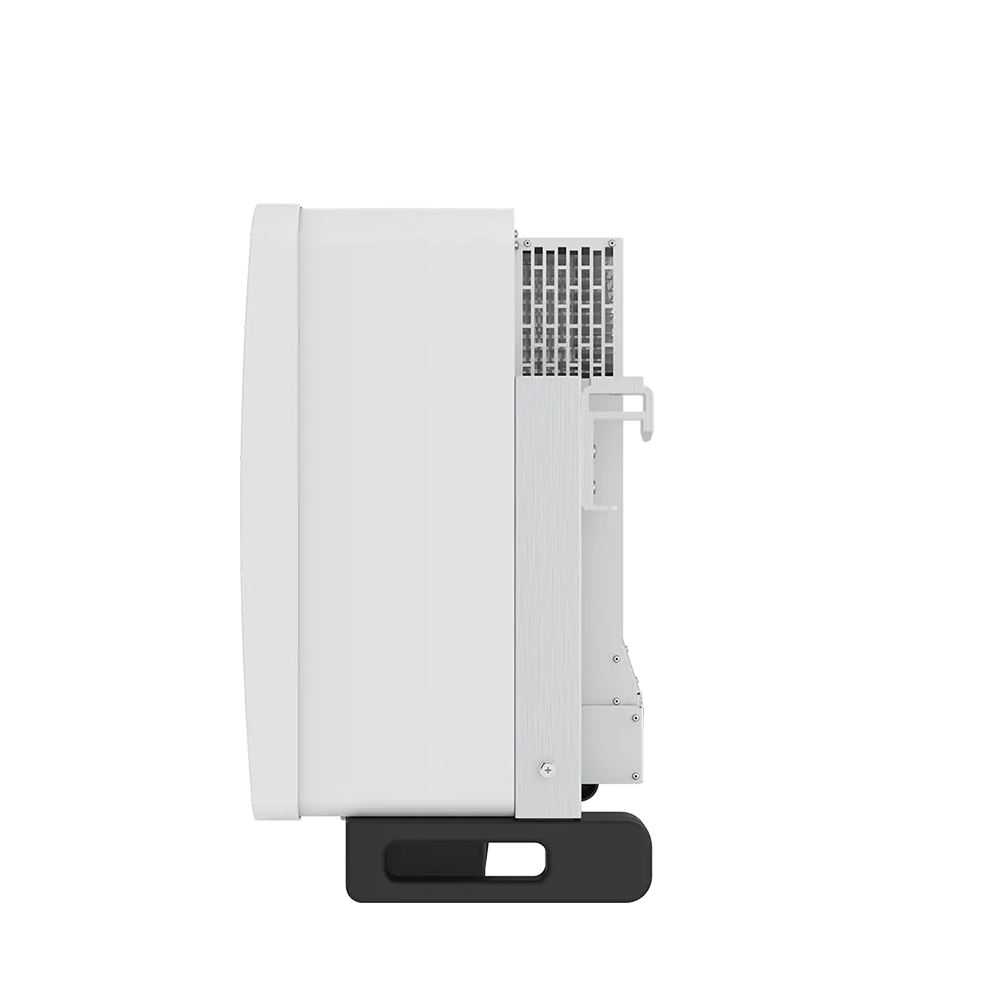

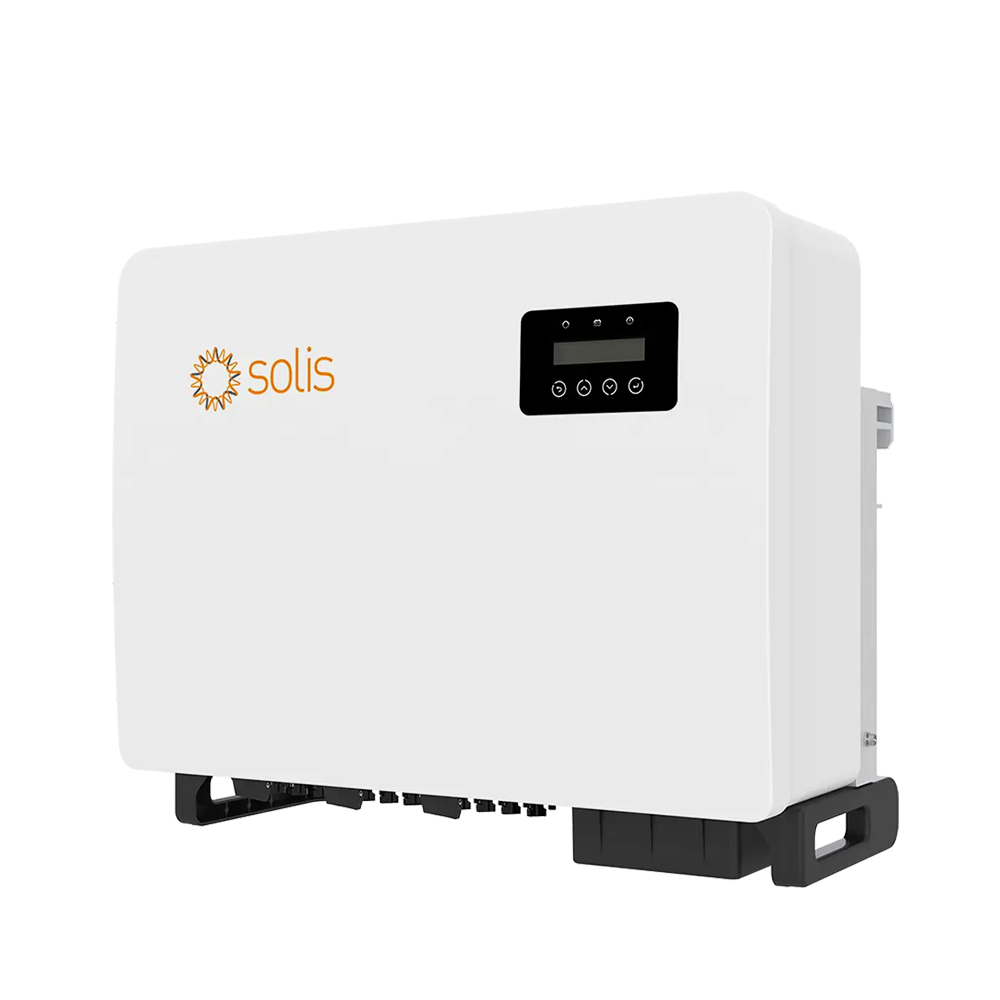

Model#: S5-GC25K-LV
PV Input parameter

• Max Input Voltage   -   1100V
• Rated Voltage   -   360 V
• MPPT Voltage Range -    180 - 1000 V
• MPPT - 4
• Max Short Circuit Current  -    4 × 40 A


 AC Output

• Rated Output Power   -   25kW
• Max Output Power  -     27.5 kW
• Nominal output frequency   -   50/60Hz
• Max Output Current   -  72.2 A


System

• Ingress Protection   -   IP66
• Dimensions(W*D*H)   -          691 × 578 × 338 mm
• Weight   -       53.7 kg
• Max. Efficiency   -    98.4%
• Surge protection   -    DC Type II / AC Type II
• Operating Ambient Temperature Range   -   -25 ~ +60°C
• Relative Humidity   -    0 - 100%
• Cooling Concept    -     Intelligent Fan-Cooling
• Communication    -     RS485, Optional: Wi-Fi, GPRS




Click link to view Full product specification

S5-GC25K-LV Specifications
