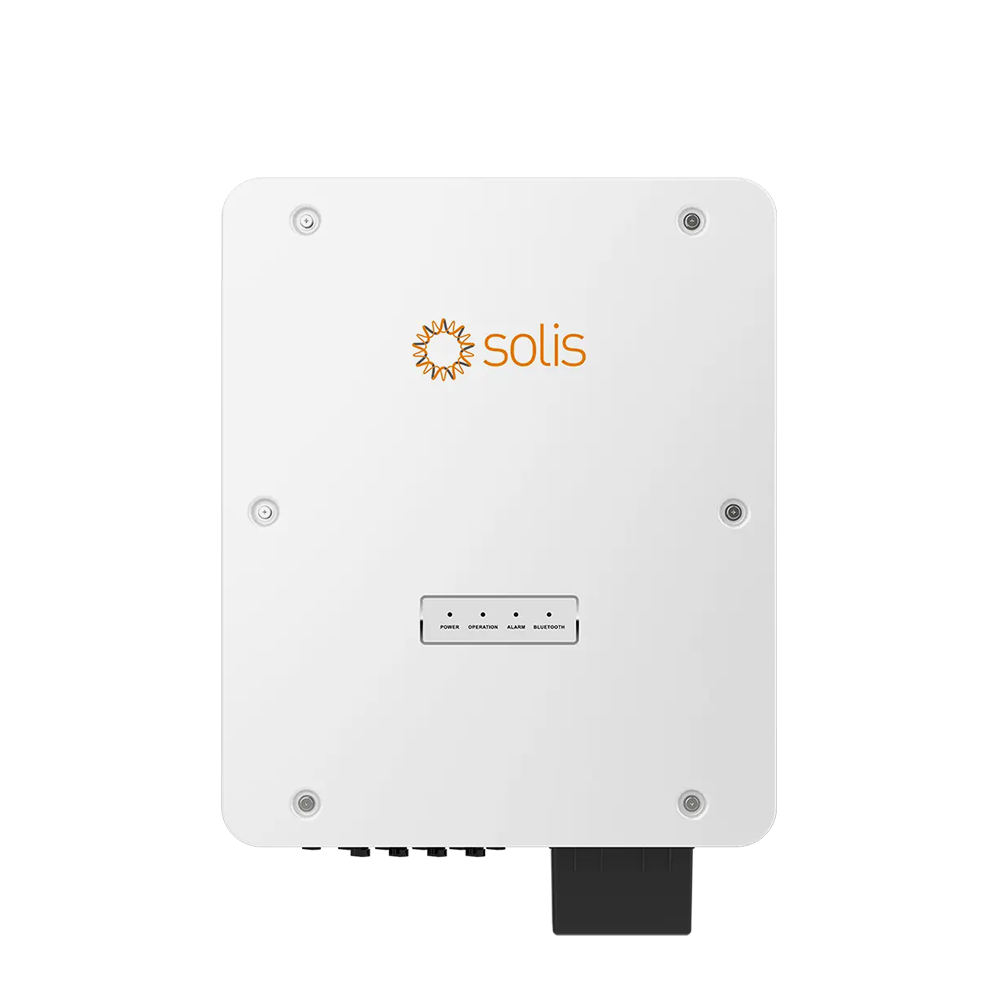

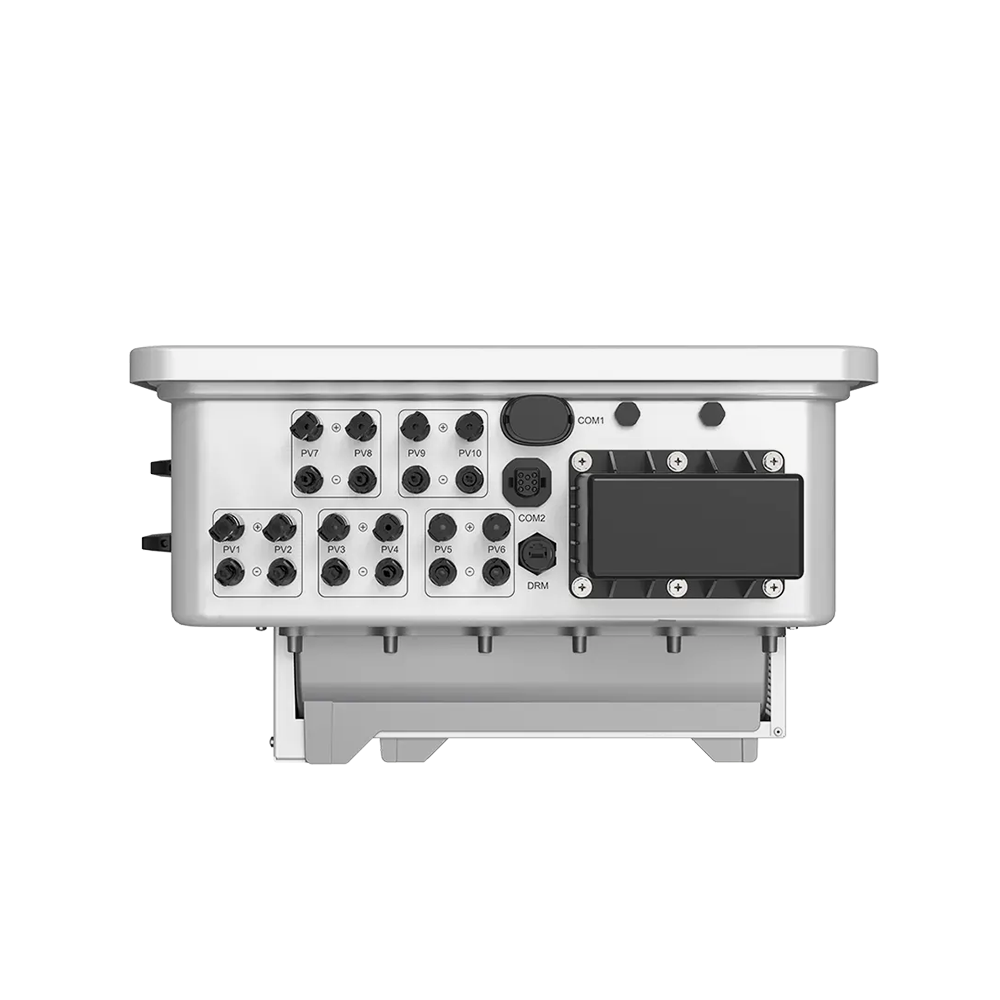

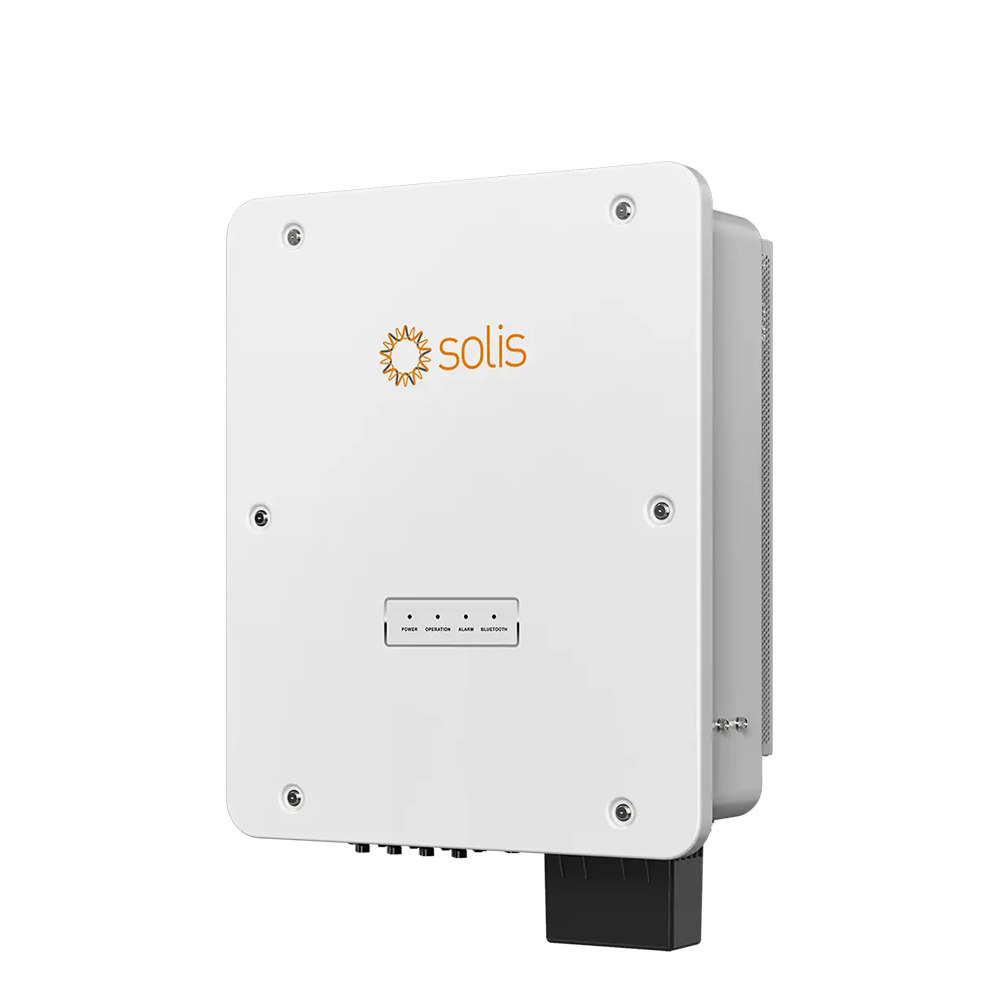

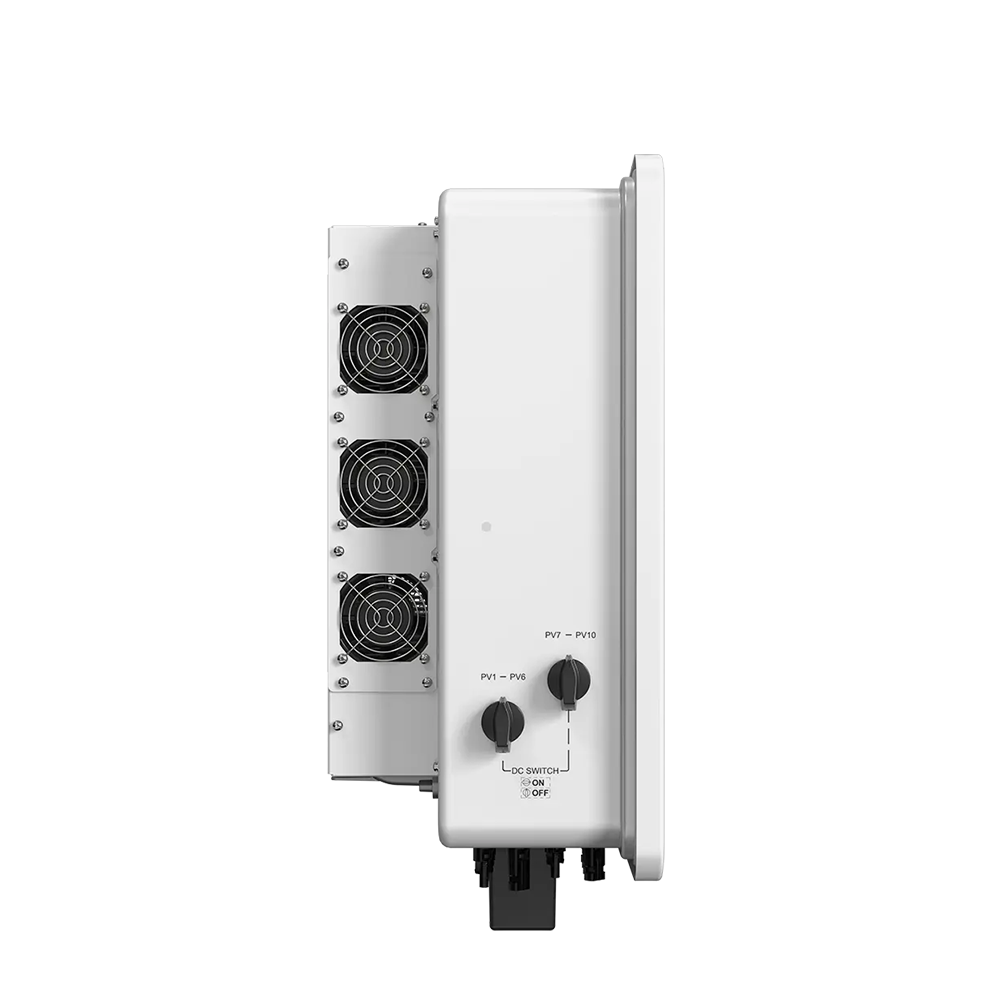

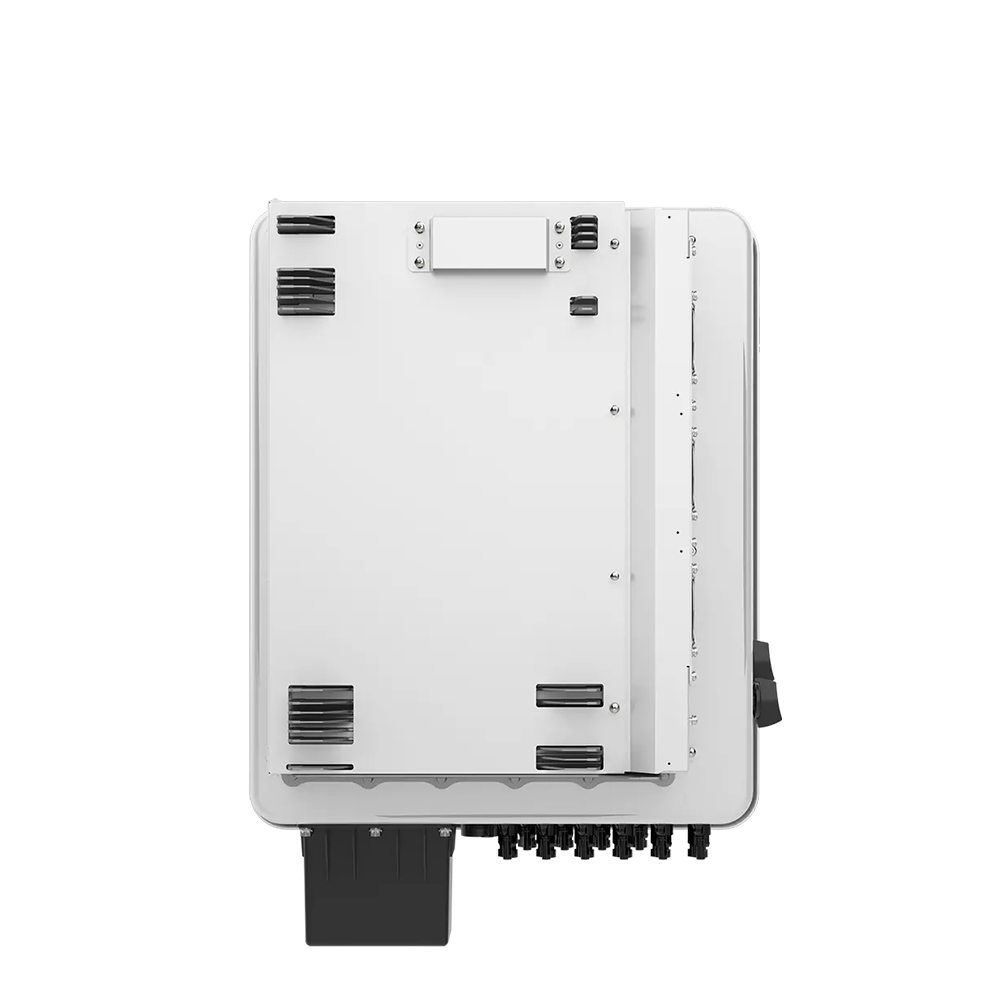

Model#: S6-GC3P30K-LV-ND
PV Input parameter

• Max Input Voltage   -   1100V
• Rated Voltage   -   400 V
• MPPT Voltage Range -    180 - 1000 V
• MPPT - 4
• Max Short Circuit Current  -    4 × 52.5 A


 AC Output

• Rated Output Power   -   30kW
• Max Output Power  -     30 kW
• Nominal output frequency   -   50/60Hz
• Max Output Current   -  78.7 A


System

• Ingress Protection   -   IP66
• Dimensions(W*D*H)   -           508 × 612 × 288 mm
• Weight   -        35.9 kg
• Max. Efficiency   -    97.8%
• Surge protection   -    DC Type II / AC Type II
• Operating Ambient Temperature Range   -   -25 ~ +60°C
• Relative Humidity   -    0 - 100%
• Cooling Concept    -     Intelligent Fan-Cooling
• Communication    -     RS485, Optional: Wi-Fi, GPRS
