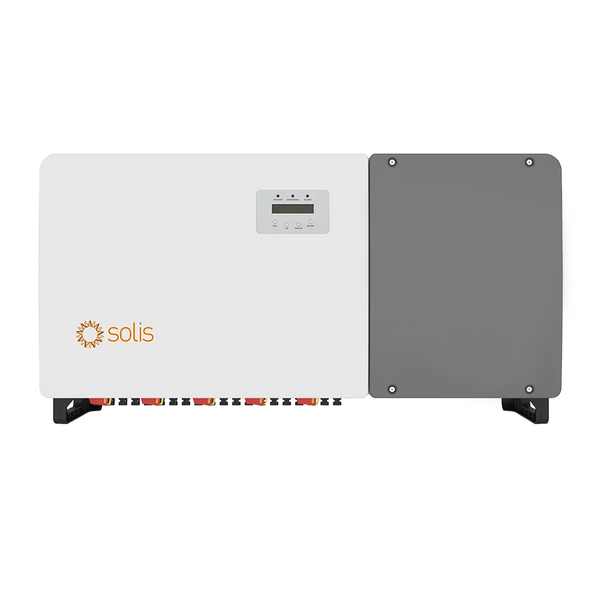

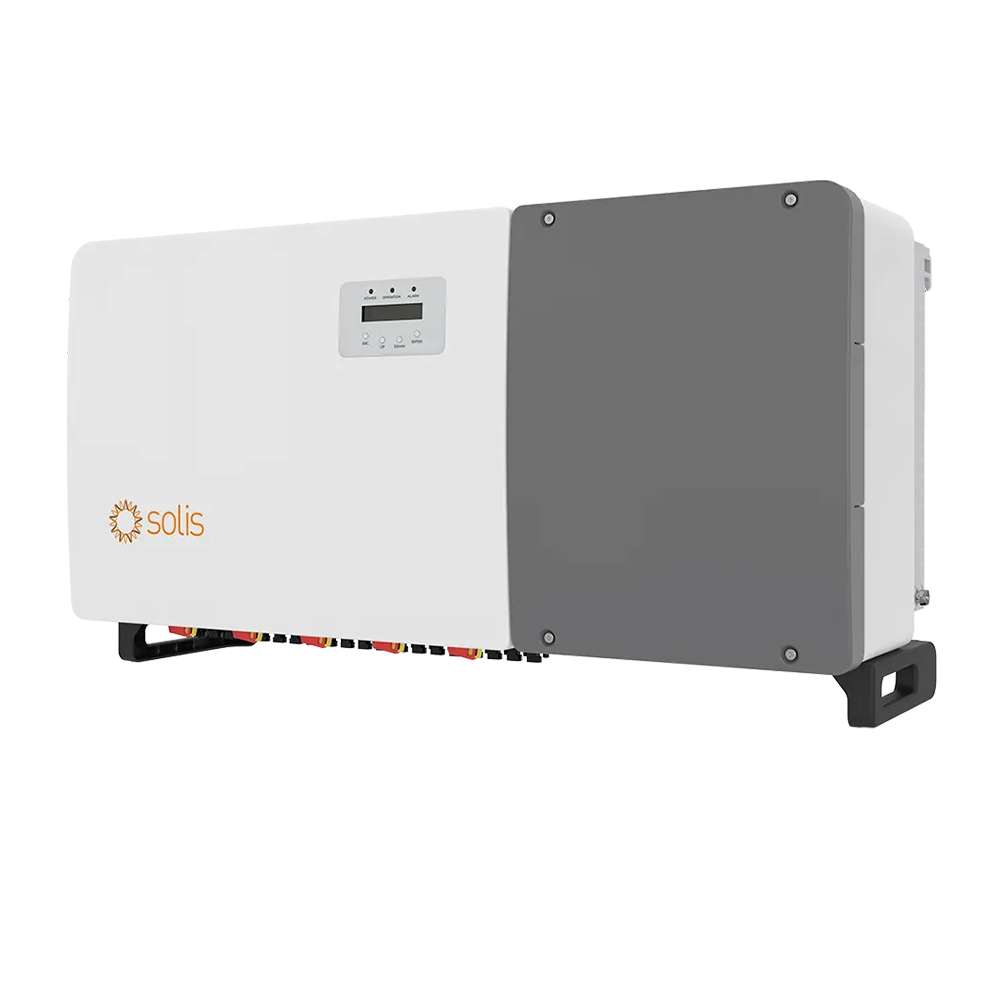

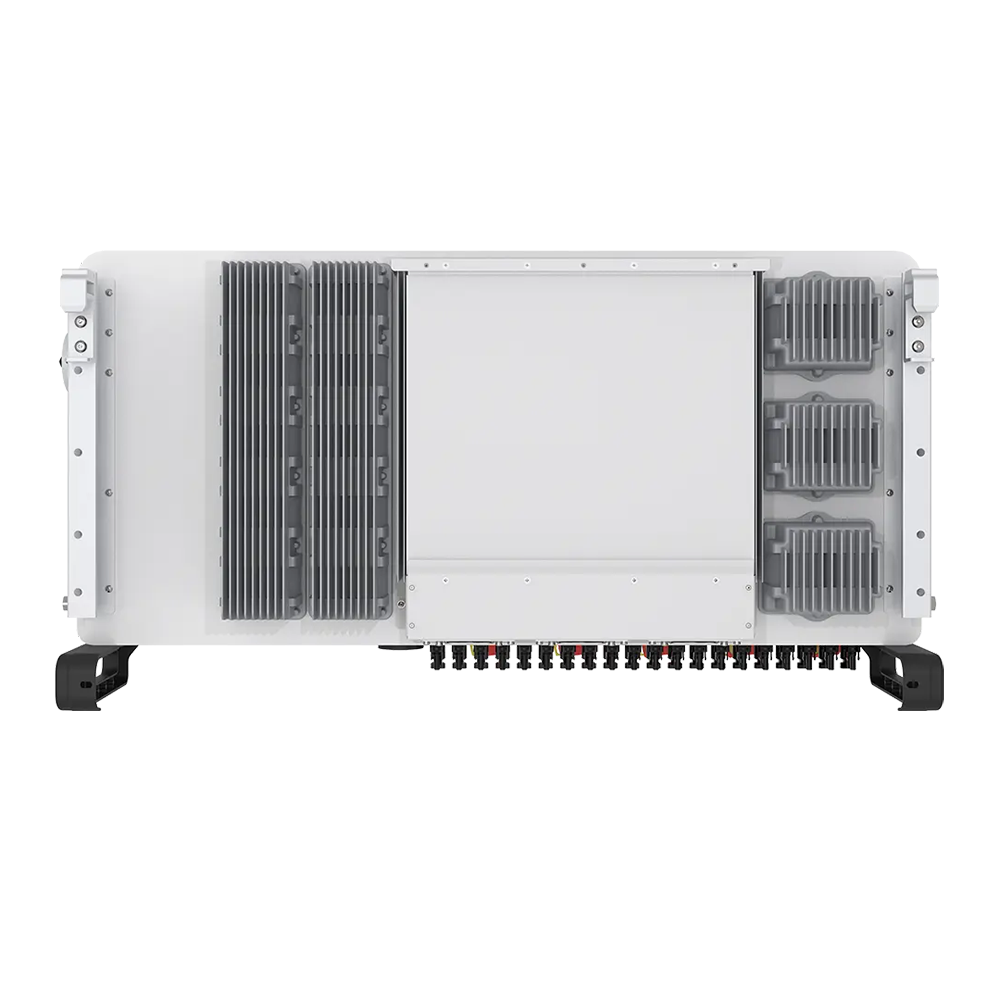

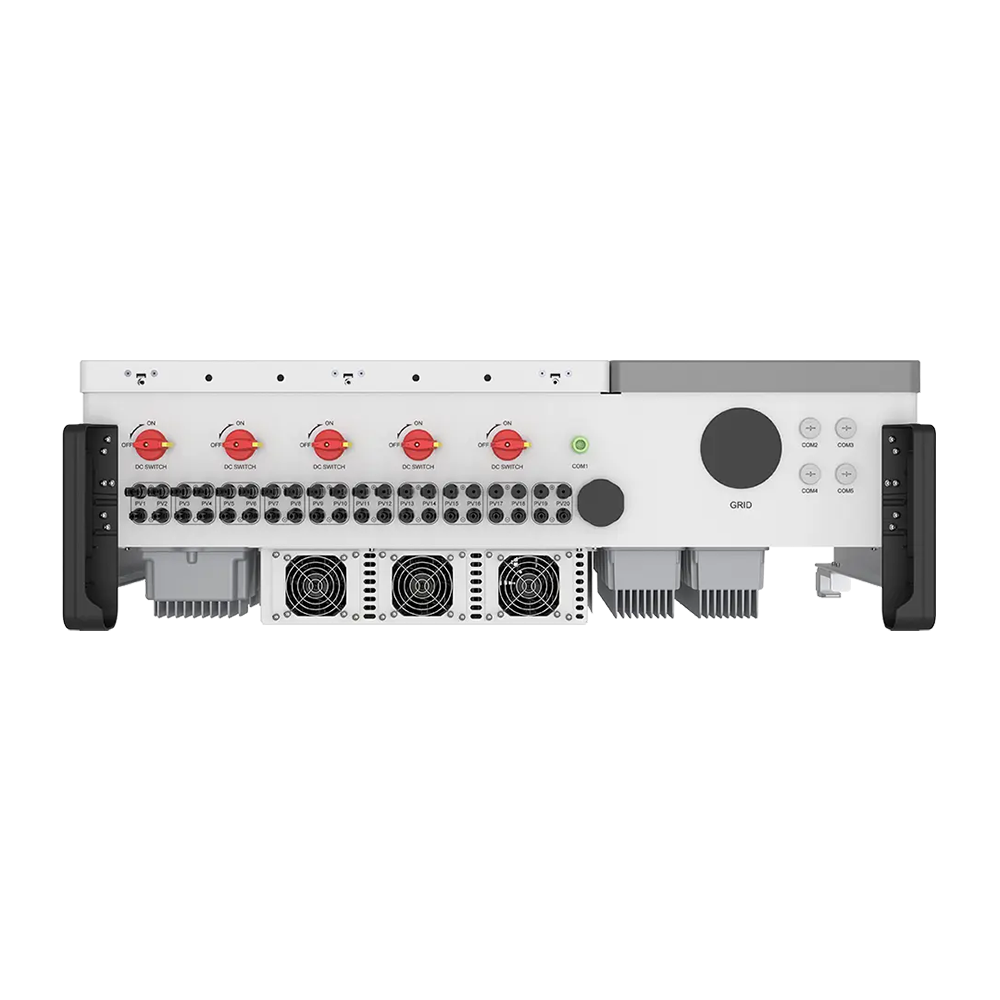

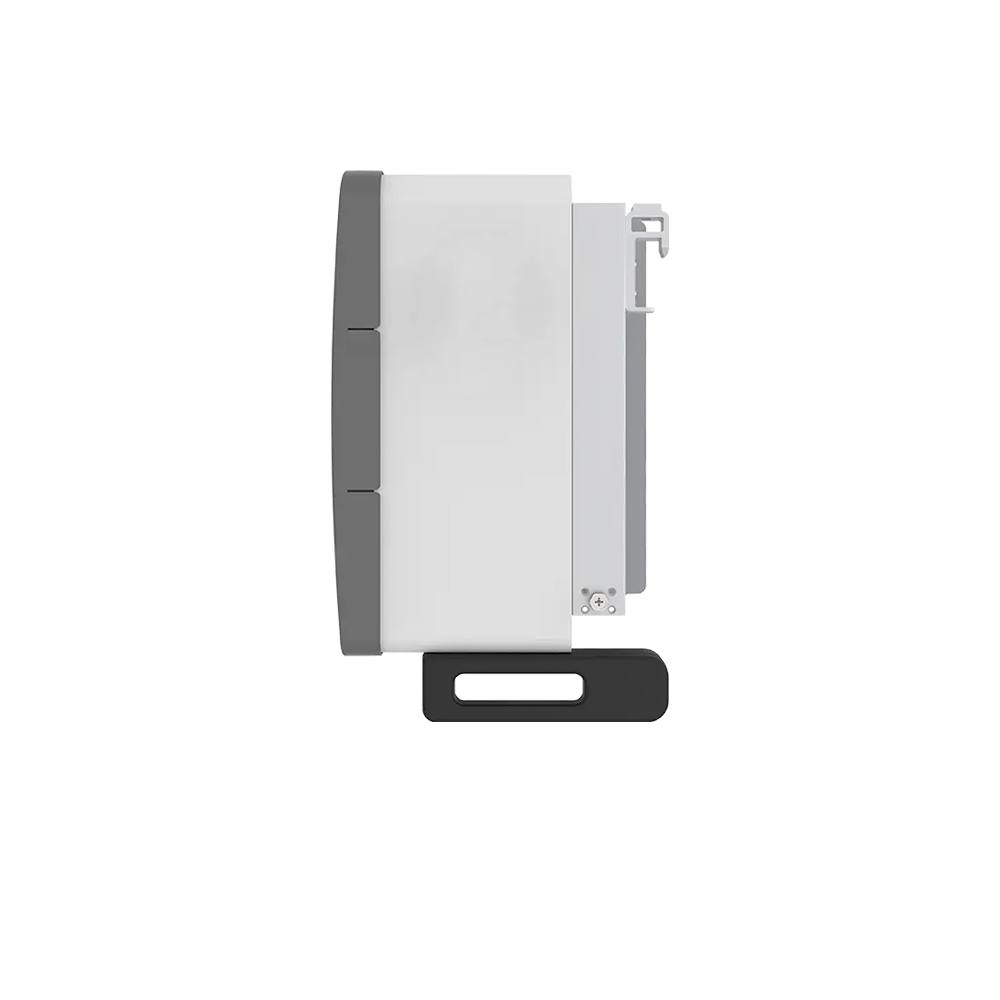

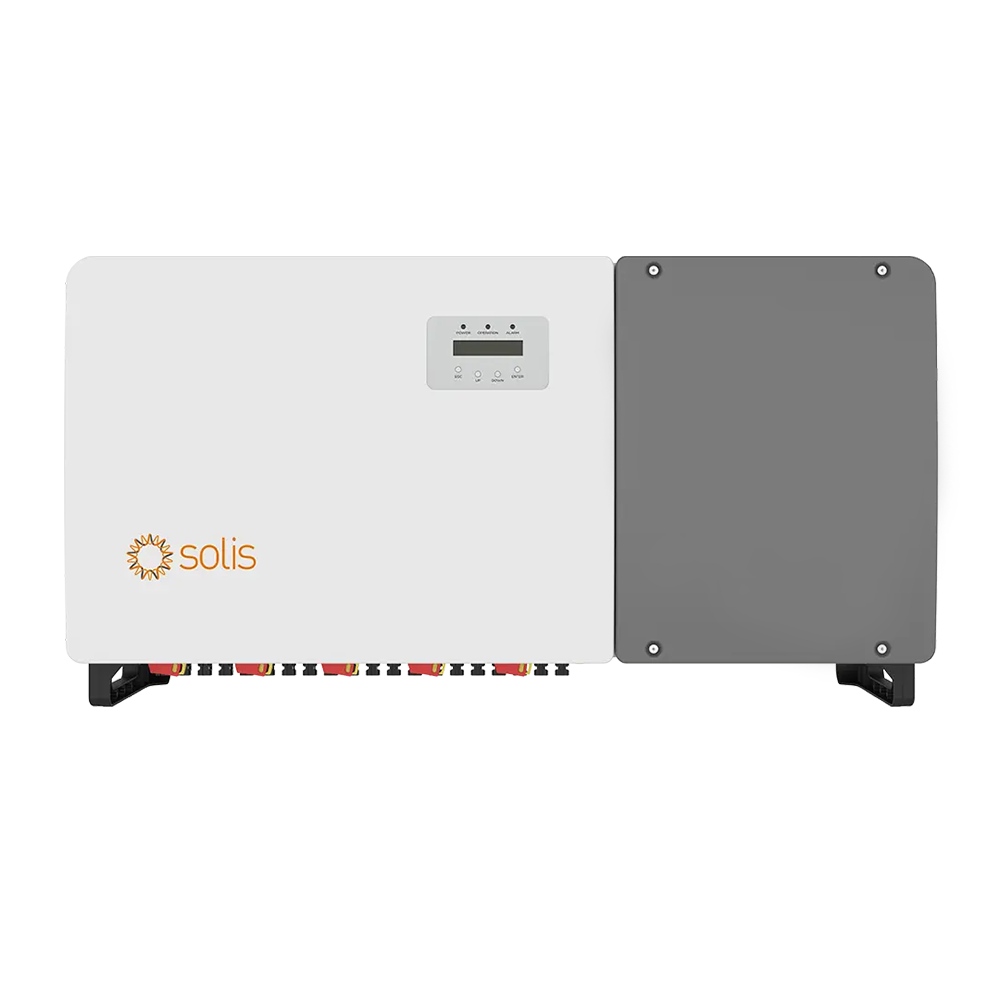

Model#: S6-GC50K-LV
PV Input parameter

• Max Input Voltage   -   1100V
• Rated Voltage   -   450 V
• MPPT Voltage Range -    160 - 1000 V (Recommend 800V access)
• MPPT - 6
• Max Short Circuit Current  -    6 × 50 A


 AC Output

• Rated Output Power   -   50kW
• Max Output Power  -     55 kW
• Nominal output frequency   -   50/60Hz
• Max Output Current   -  144.3 A


System

• Ingress Protection   -   IP66
• Dimensions(W*D*H)   -       1014 × 567 × 345 mm
• Weight   -    90kg
• Max. Efficiency   -    98.5%
• Surge Protection   -    DC Type II / AC Type II
• Operating Ambient Temperature Range   -   -30 ~ +60°C
• Relative Humidity   -    0 - 100%
• Cooling Concept    -     Intelligent Fan-Cooling
• Communication    -    RS485, Optional: Wi-Fi, GPRS, PLC




Click link to view Full product specification

S6-GC50K-LV Specifications
